Bulldog 24K Electric Leveling Dual Motor Landing Gear Set Dual Single Speed Trailer Jacks Fixed Leg Tubular Swivel Mount w/ 2 Manual Override Cranks, Mating Female Tube Mount, Tandem Twin Bulldog Electric Powered-Drive Motors
$2,089.99
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 182524X2 1824200100X2 005122X2
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

Bulldog Swiveling Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

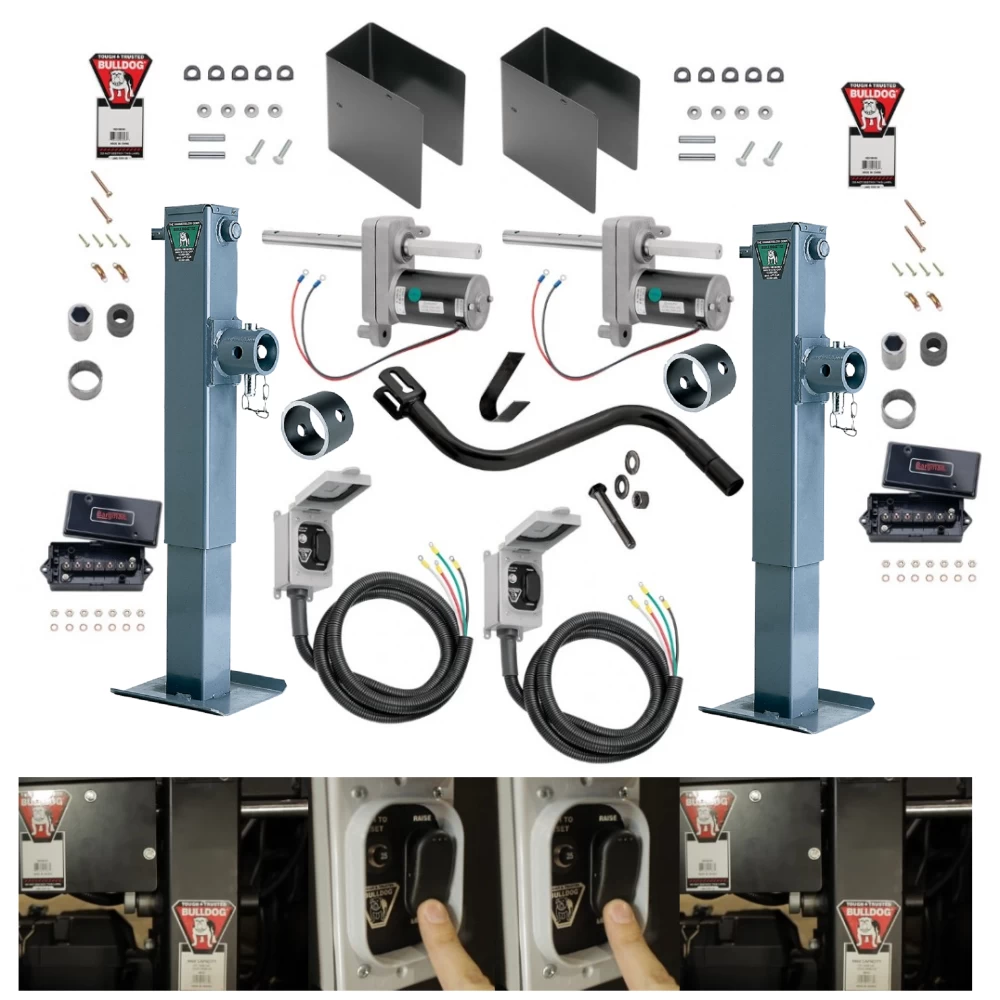

Presenting the Bulldog Landing Gear 2-Pack (182524) with a fixed leg, pipe mount, and swivel functionality, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). This bundle is engineered for a wide array of trailers, offering unmatched strength and efficiency, complemented by a Manual Override Crank for convenience.

Please Note: Each jack comes with an individual motor, requiring separate switches for operation. Although both motors can be connected to the same battery, separate wiring is advised for leveling functionality, and using a single switch for both is not recommended.

Key Features:

  • Swivel Functionality for flexible positioning in trailer operations.
  • Included Tubular Pipe Mount with pin and chain for secure attachment.
  • Durable 4" square tubing made from 7-gauge alloy steel.
  • Protective paint on the outer tube for corrosion resistance and longevity.
  • Accessible gear box and grease fitting for easy maintenance.
  • Fixed leg design eliminates the need for a drop leg or plunger pin.
  • 12.5" of screw travel for precise height adjustment.
  • 1:1.5 gear ratio Sidewind model for smooth cranking.

ASABE S485 Compliant: Bulldog products adhere to ASABE S485 standards, ensuring premium quality and reliability.

Technical Specifications:

  • Bracket Height ranging from 17" retracted to 29-1/2" extended, with a 10-1/8" clearance.
  • 12-1/2" travel, with 10,000 lbs manual and 7,500 lbs electric lift capacity per jack.
  • Static capacity of 12,000 lbs per jack, with outer tube dimensions of 4" width made from 7-gauge steel.
  • 5-year warranty for assured quality and performance.

Bulldog Electric Motor Powered-Drive Kit 2-Pack:

  • Enhanced efficiency with faster and easier lifting capabilities.
  • Suitable for Bulldog Single-Speed Landing Gears, ideal for heavy-duty trailers.
  • Compact design for easy integration in tight spaces.
  • Quiet operation with weatherproof components for long-lasting performance.
  • Manual operation option available for emergency situations.

Kit Specifications:

  • 12 volt DC motor power with a 7,500 lbs electric lift capacity per motor.
  • Designed for Bulldog Single-Speed Landing Gears with a 1" shaft size.
  • Dimensions of Power Drive: 16-1/2" long x 3-1/8" wide x 7-3/16" tall.
  • Limited 5-year warranty for peace of mind.

Upgrade your trailer with the Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle for superior performance and convenience. Contact us at 877-869-6690 for inquiries or to order this top-tier lifting solution. Elevate your trailer's capabilities with this ultimate bundle.

Specification
Jack Style Pipe Mount
Finish Gray
Static Capacity 24000
Lift Capacity 20000
Electric Lift Capacity 15000
Lift Style Sidewind
Travel 12.5"
Retracted 17.0"
Extended 29.6"
Clearance 10.1"
Tubing Width 4"
Leg Fixed Leg
Swivel Yes
Foot Footplate
Jack Shape Landing Gear
Description Facts Pipe Mount Swivel Landing Gear Electric Leveling Jacks In Electric Mode, Lift Capacity is 7,500 per jack
