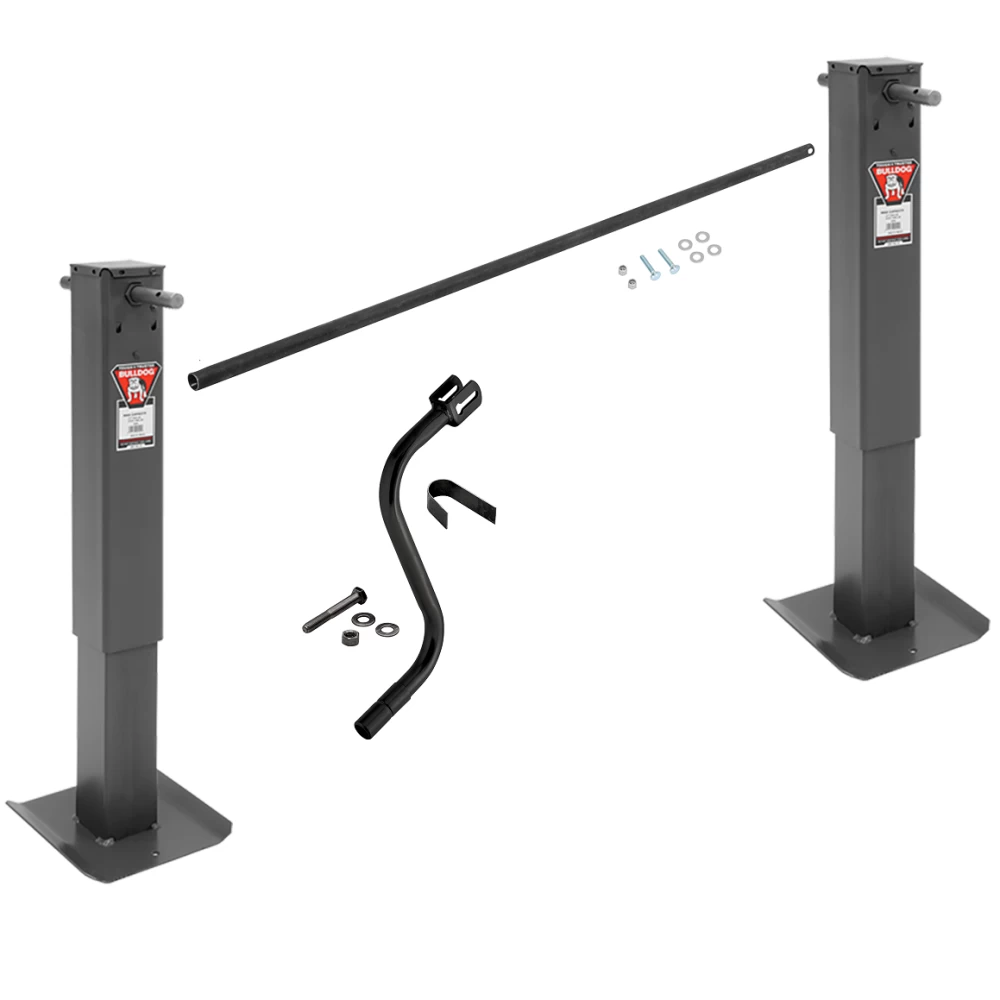

Bulldog 24K Landing Gear Set Dual Single Speed Trailer Jacks Fixed Legs, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank

Bulldog Tandem 24K Dual Trailer Jacks Landing Gear with Crosshaft

Revolutionize your trailering experience with the Bulldog Landing Gear 2-Pack - 182415. These jacks feature front-facing plunger pins and Non-Spring Return Drop Legs, connected by a crossdrive crosshaft CS730300 for superior convenience and performance on a variety of trailers.

With the Bulldog Trailer Jack 182415, crafted from sturdy steel and finished with a weather-resistant coating, lifting and supporting your heavy-duty trailers becomes effortless.

Key Features:

• Strong 4" Square Tubing: Made from 7-gauge alloy steel to endure the toughest tasks.
• Protective Paint Coating: Ensures durability and corrosion resistance for lasting quality.
• Tandem Operation: Control both jacks simultaneously with a single handle via the crosshaft.
• Adjustable Drop Leg: Five positioning holes offer versatile adjustments for your trailer setup.
• Accessible Gear Box: Easy maintenance with gear boxes and grease fittings within reach.
• Non-Spring Return Drop Legs: Provides 12.5" of screw travel and 13.5" extra adjustment.
• Front-Facing Plunger Pins: Convenient design for both parent and companion jacks.
• Durable Powder Coat Finish: Offers long-term protection against wear and tear.
• Efficient Sidewind Model: Smooth cranking with a 1:1.5 gear ratio.

Enjoy the ease of Springless Drop Legs that lower quickly without manual effort.

ASABE S485 Compliant:

BULLDOG products comply with ASABE S485 certification, ensuring high quality and reliability.

Technical Specifications:

• Bracket Height: 27-3/8" (Retracted), 39-7/8" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Legs: 13-1/2"
• Manual Lift Capacity: 20,000 lbs
• Static Capacity: 24,000 lbs
• Outer Tube: 4" width, 7-gauge steel material
• 5-year warranty for peace of mind.

Crosshaft Specifications:

The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware supports tandem jack operation and can be customized in length to meet your needs.

Trust the BULLDOG Trailer Jacks 182415 for unmatched reliability and strength, backed by a 5-year warranty. Reach out to us at 877-869-6690 for the best in trailer equipment. With ASABE S485 certification, these jacks represent the pinnacle in durability and performance.
