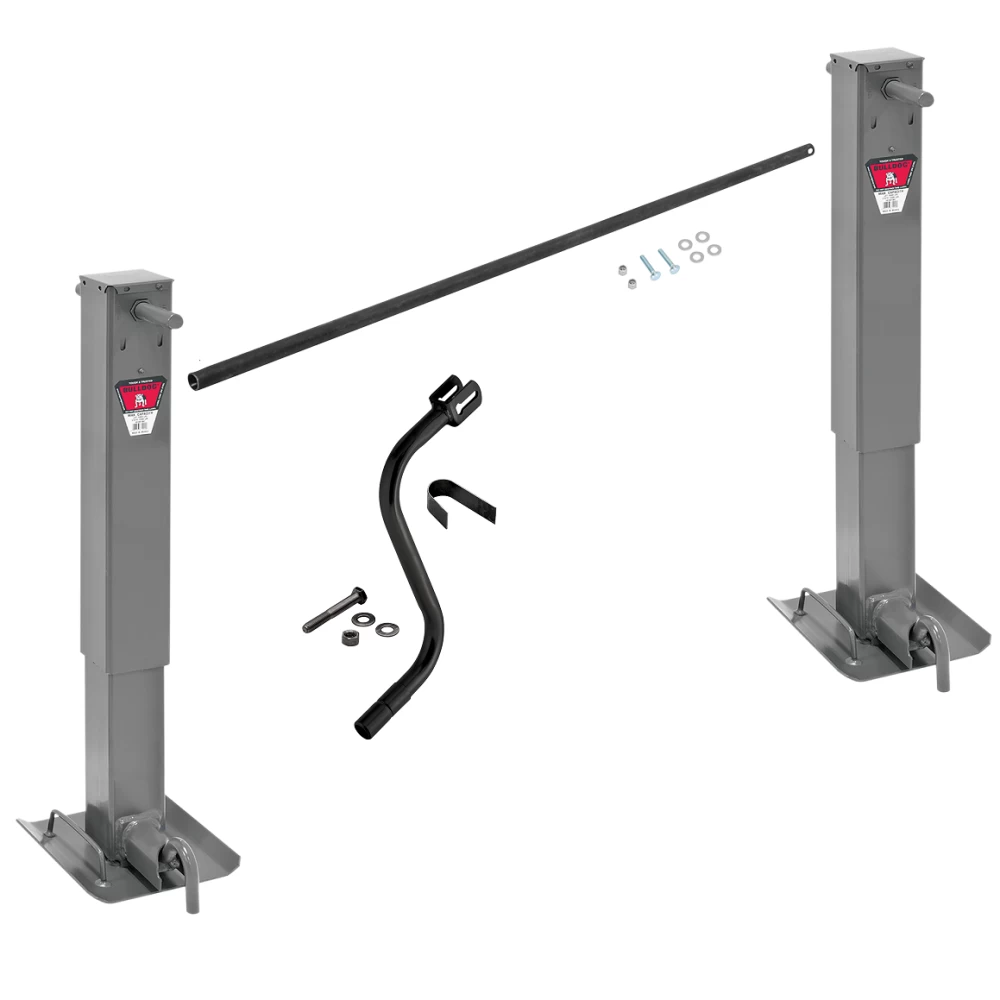

Bulldog Tandem 24K Dual Trailer Jacks Landing Gear with Crosshaft

Enhance your trailer functionality with the Bulldog Landing Gear 2-Pack - 182404 and 182411, equipped with Non-Spring Return Drop Legs and connected by a crossdrive crosshaft CS730300. This setup offers a superior solution for various trailer types, ensuring ease of use and excellent performance.

The Bulldog Trailer Jacks - 182404 and 182411, are built from durable steel with a weather-resistant finish, ready to support your heavy-duty trailers with ease.

Key Features:

  • 4" Square Tubing constructed from 7-gauge alloy steel for exceptional strength.
  • Protective Paint Coating on outer tubes and drop legs for corrosion resistance and longevity.
  • Tandem operation via crosshaft for one-sided handle control.
  • Adjustable Drop Leg with five positioning holes for flexible setup.
  • Easy-Access Gear Box with grease fittings for simple maintenance.
  • Non-Spring Return Drop Legs featuring 12.5" screw travel and 13.5" additional adjustment.
  • Conveniently positioned Plunger Pins with curbside and roadside orientations.
  • Powder Coat Finish for extended protection.
  • Efficient Sidewind Model with a 1:1.5 gear ratio.

Springless Drop Legs allow for effortless lowering without manual pressure.

ASABE S485 Compliant

BULLDOG products adhere to ASABE S485 standards, ensuring high-quality and reliable performance.

Technical Specifications:

  • Bracket Height: 27-3/8" (Retracted), 39-7/8" (Extended)
  • Total Lift: 26"
  • Travel: 12-1/2"
  • Drop Legs: 13-1/2"
  • Manual Lift Capacity: 20,000 lbs
  • Static Capacity: 24,000 lbs
  • Outer Tube: 4" width, 7-gauge steel material
  • 5-year warranty for added assurance.

Crosshaft Specifications

The Trailer Jack Cross Shaft Tube (72-3/4" long) with Slotted Ends and Hardware allows for tandem jack operation with one crank, and can be customized in length.

Rely on the BULLDOG Trailer Jacks 182404 and 182411 for unmatched reliability and strength, supported by a 5-year warranty. Reach out to us at 877-869-6690 to outfit your trailers with top-quality gear. Our landing gear jacks are ASABE S485 certified, ensuring superior performance and peace of mind.

Specification
Jack Style Landing Gear
Finish Gray
Static Capacity 24000
Lift Capacity 20000
Lift Style Sidewind
Travel 12.5"
Retracted 27.4"
Extended 53.3"
Clearance Varies
Tubing Width 4"
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts drop leg landing gear jacks with standard disc foot. 13.5" of addi- tional drop leg extension. Drop leg pull pin to the SIDE. Crank included.
Spring Return No
