Bulldog 24K Landing Gear Trailer Jack Set Dual Electric Motors Leveling w/ Manual Override Crank for Gooseneck Dump Agricultural Construction Heavy-Duty Utility Horse Livestock Trailers

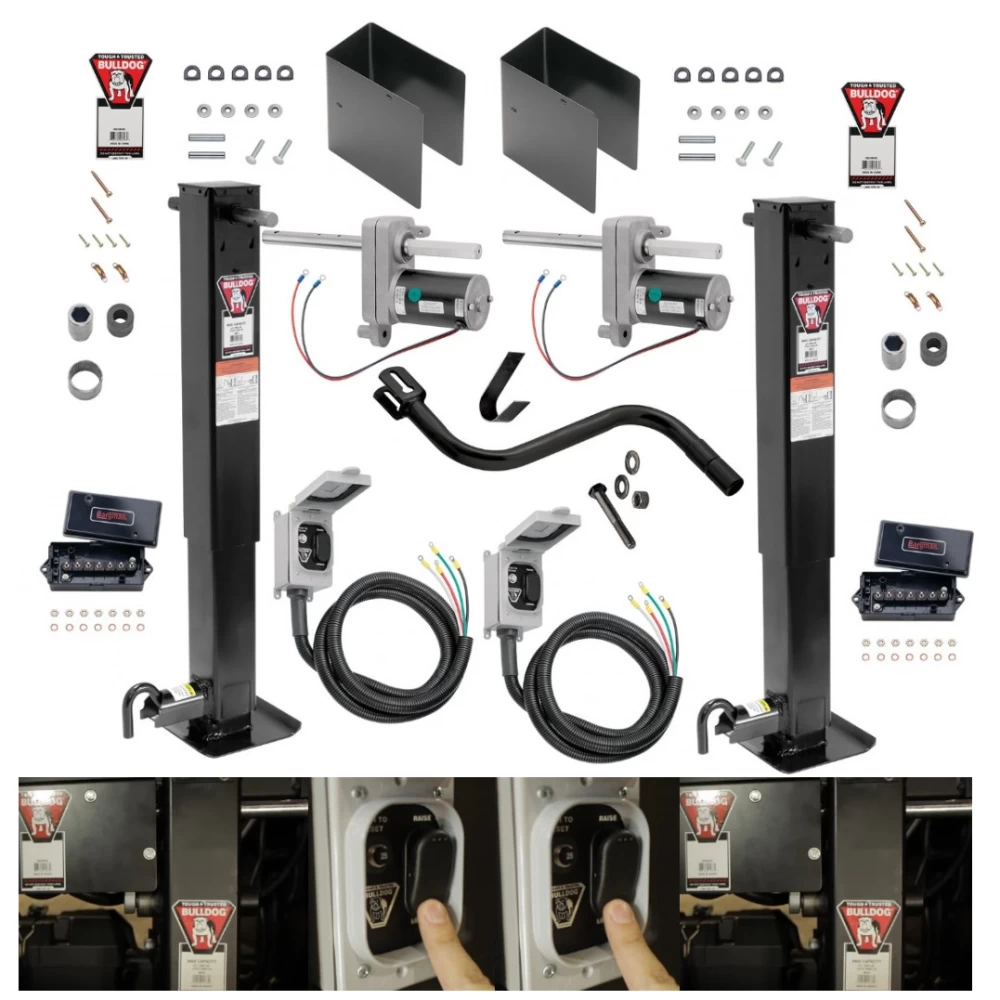

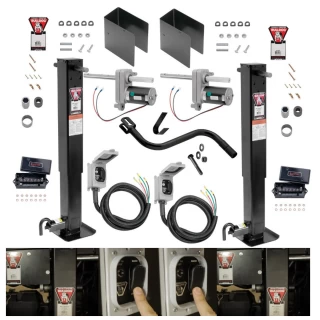

Introducing our complete package, which includes everything pictured:

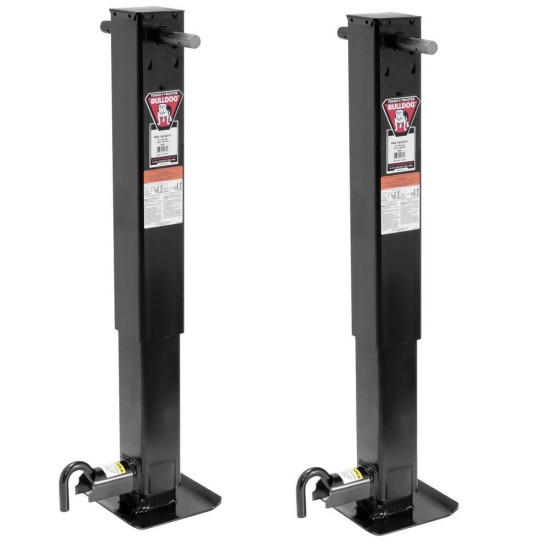

• Quantity 2: Bulldog 12,000 lbs. Square Trailer Jacks Sidewind 26" Lift Drop Leg w/ Spring Return
• Quantity 2: Bulldog 12,000 lbs. Electric Powered-Drive Trailer Jack Kit

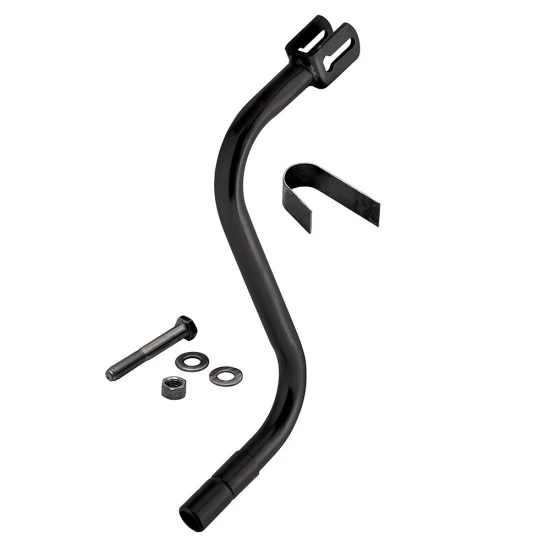

• 1 Manual Crank Handle

For any inquiries, please call us at 702-374-8999.

Note: Each jack is equipped with a separate motor that requires separate switches for operation. It is not recommended to wire both jacks to a single switch. Wiring them separately allows for the use of these jacks as leveling jacks. However, both motors can be connected to the same battery.

Bulldog 12,000 lbs. Square Jack:

The Bulldog 12,000 lbs. square jack is renowned for its strength, durability, and reliability. With a long-standing legacy in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923, it remains the top choice in its class.

Key Features:

• Made from 7-gauge superior alloy steel with 4" square tubing
• Painted outer tube, inner tube, and drop leg
• Drop leg with 5 positioning holes and 13.50" additional adjustment
• Easy-access gear box with grease fitting for routine maintenance
• 12.5" screw travel and a total lift capacity of 10,000 lbs.
• Optional paint or powder paint finish (with or without labels)
• Limited 5-year warranty
• Compliant with ASABE standards

Specifications:

• Support Capacity: 12,000 lbs.
• Lift Capacity: 10,000 lbs.
• Retracted Bracket Height: 28.6"
• Extended Bracket Height: 54.6"
• Travel/Lift: 12.5"
• Designed for direct welding onto your application
• Features a spring return drop leg with a heavy-duty base
• Front-mounted drop leg pull pin
• Crank handle sold separately
• Sidewind model with a 1:1.5 gear ratio

Bulldog Powered Drive Kit for Single Speed Jacks:

Enhance your lifting capabilities with the Bulldog Powered Drive Kit. Designed to be used with BULLDOG 12,000 lbs. and Twin Cam jacks, this kit provides exceptional lifting performance.

Key Features:

• Lifts 50% more weight than the competition
• Lifts 3" per minute under typical working loads
• Manual cranking option available in case of power loss
• 5-year warranty

State-of-the-art 12VDC Electric Motor:

• Operates quietly, offering a 50% noise reduction compared to competitors
• Highly efficient, providing a 60% increase in electrical power usage
• Permanently lubricated for years of maintenance-free use
• Compact dimensions: 8" length x 3-9/16" width x 6-3/16" height

Custom-Designed Wiring Harness & Rocker Switch:

• Weatherproof box housing the wiring harness and rocker switch
• Equipped with a 25 amp circuit breaker featuring a push-button reset

Kit Components:

• Powered drive assembly
• Torque stop tube with energy absorption device
• Replacement bevel gear & dowel pin
• Terminal box
• Wiring harness & switch box
• Weather-resistant cover (not shown)

Installation Instructions:

1. Remove the jack cross shaft as instructed in the included Service Bulletin (F3310 for non-welded hex bushings or F3376 for a planetary two-speed jack).
2. Temporarily replace the jack cross shaft with the powered drive/shaft, ensuring the powered drive is on the non-geared side of the jack with the motor down and within the profile of the jack.
3. With the powered drive/shaft installed, position the torque stop tube on the jack's outer tube wall.
4. Mark the location of the torque stop tube on the outer tube and remove the powered drive/shaft. Weld the torque stop tube onto the marked location on the jack's outer tube.
5. Reinstall the powered drive/shaft, ensuring the energy-absorbing rubber bumper is placed into the torque stop tube during assembly to prevent motor rotation.
6. Follow the appropriate Service Bulletin (in reverse order) to reassemble the jack, using the standard hole for normal installation (do not use hole #2).
7. Attach the powered drive cover using the included ¼” x 1” bolts and ¼” rubber bonded washers, sandwiching the cover between the washers with the rubber side against the cover. Secure the bolts into the mounting flange holes, torquing them to 6 ft. lbs. Optionally, use a thread lock or retaining compound on the bolts. Apply the Bulldog decal to the outside of the cover.

Wiring Instructions:

1. To ensure safety and prevent electrical system damage, disconnect the battery ground cable.
2. Attach the terminal box to the trailer at a suitable location for connecting the powered drive leads to the terminal box studs (refer to Figure 5 for the wiring diagram).
3. Connect the powered drive leads and wiring harness leads to the terminal box studs. For added protection, enclose the leads in non-split tubing or loom (included).
4. Mount the switch box of the wiring harness at the desired location on the trailer (mounting hardware not included).
5. Connect the battery leads to the terminal box studs and attach the terminal box cover.
6. Reconnect the battery ground and test the operation.

Enjoy the powerful and efficient lifting capabilities of the Bulldog Powered Drive Kit for Single Speed Jacks.
