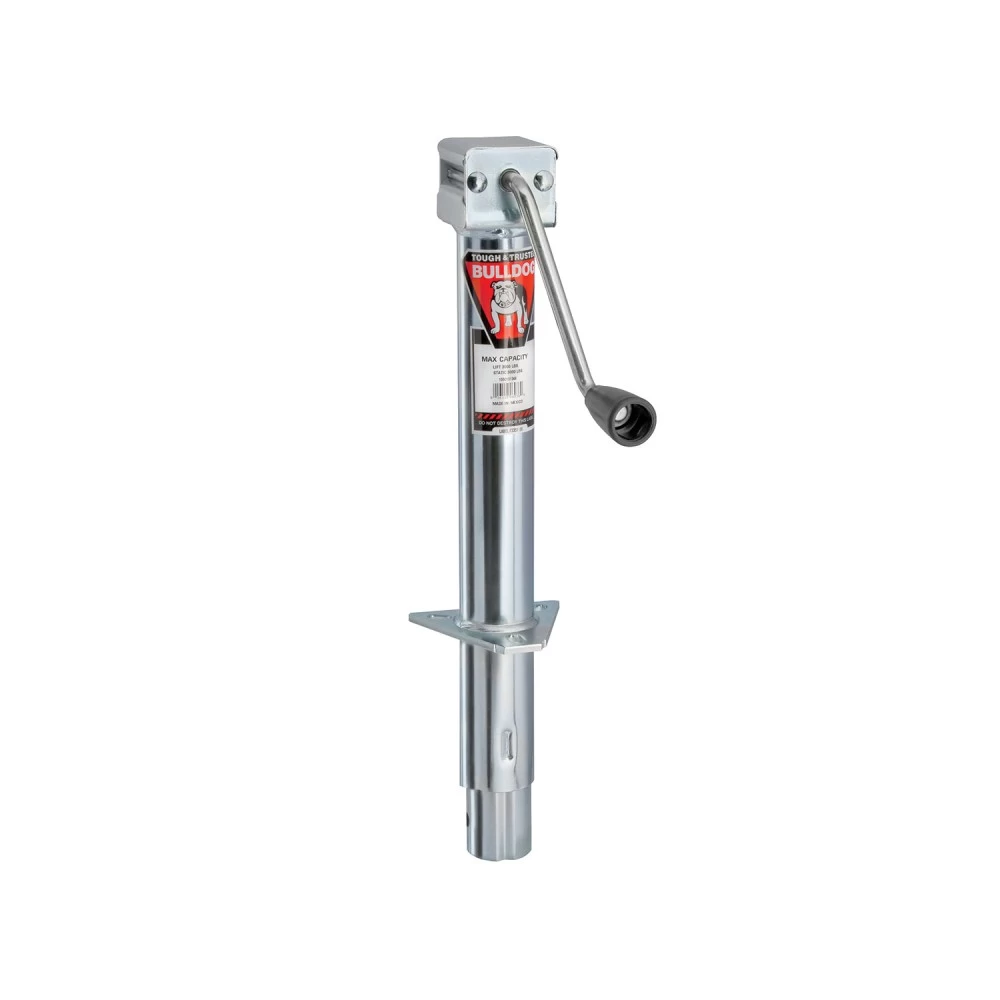

Bulldog 3,000 lbs. Round A-Frame Trailer Jack Sidewind 13" Lift Zinc w/ External gear box

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Zinc outer and inner tube

• Limited 5-year warranty

Specifications:

Lift Capacity: 3,000 lbs.

Retracted Bracket Height: 7" from bracket to bottom

Extended Bracket Height: 20"

Travel/Lift: 13"

Clearance: 14.5" from bracket to top

Weld-on/bolt-on bracket works with any standard A-Frame mount

Handle Radius: 5.80"

Inner tube diameter: 2"

Outer tube diameter: 2-1/4"

Wheel and base sold separately
