Bulldog 3K Round A-Frame Trailer Jack 13" Lift Sidewind w/ 15K Cast Head Coupler for 2-5/16" Ball

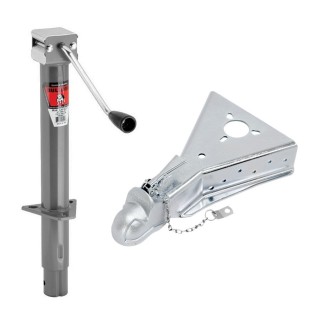

Model: BTJC163BULLDOG 3K Round A-Frame Trailer Jack (13" Lift) & 15K Cast Head Coupler
This convenient bundle combines a reliable 3,000-lb. capacity BULLDOG A-frame trailer jack with a heavy-duty 15,000-lb. cast head coupler. Perfect for securing and lifting utility, livestock, cargo, or construction trailers.
Bundle Contents:

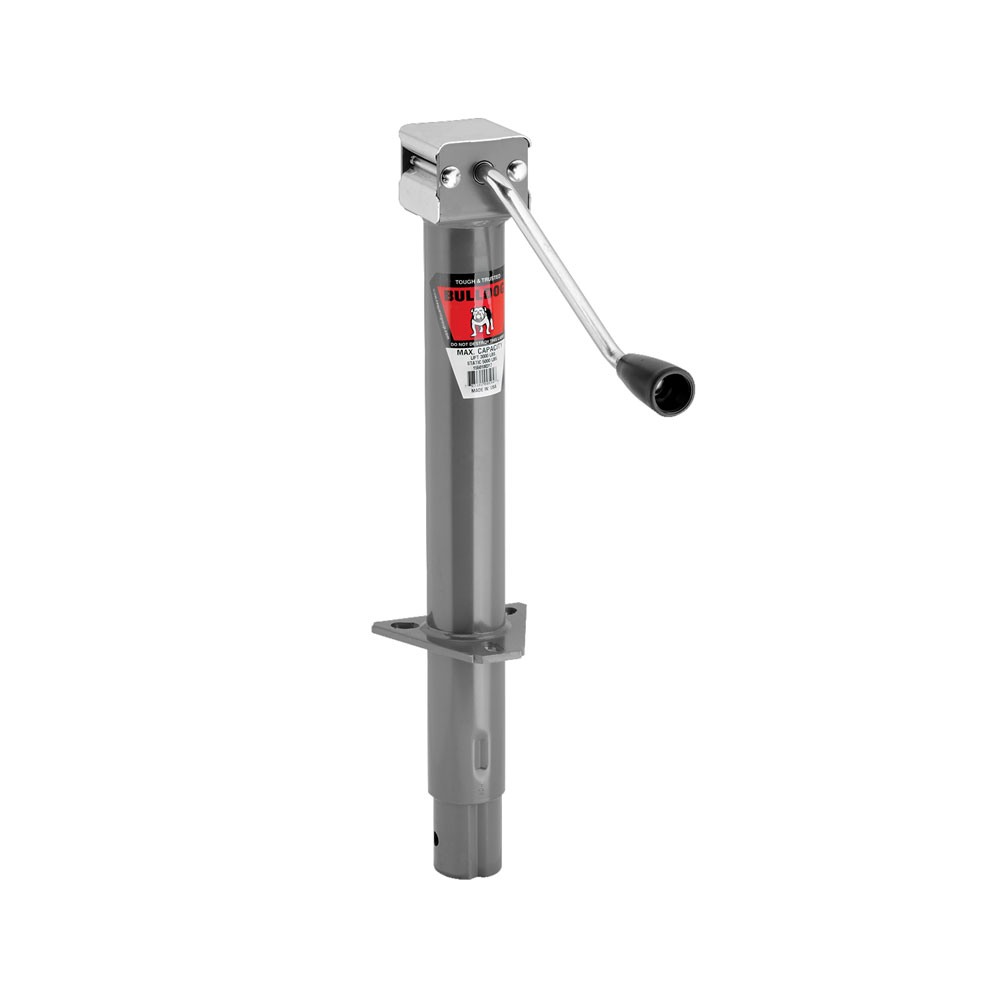

- QTY (1): Round Trailer Jack, A-Frame, 3,000 lbs. Lift Capacity, Sidewind, Bolt-On, 13 Inch Travel
- 3,000-lb. lift capacity for dependable vertical and side load support
- Ergonomic sidewind handle ensures smooth and comfortable operation
- Precision-fitted parts provide long-term reliability at rated loads
- Durable gray painted outer and inner tubes protect against the elements
- QTY (1): A-Frame Coupler, 2-5/16 Inch Diameter, 15,000 lbs. Capacity
- Robust cast head “Wedge-Latch” design for secure towing
- 15,000-lb. capacity ideal for heavy-duty trailer applications
- Patented ball clamp design for quick hookups and disconnects
- Meets SAE standard J684 for added safety and reliability
Always confirm your trailer’s specifications and perform regular maintenance for optimal performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 2001-3000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 13 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 3000 LB Static Capacity |
| Jack Lifting Load Capacity | 3000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Approx Bracket-to-Top Clearance | 15 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 20 Inch |
| Exact Bracket-to-Top Clearance | 14.50 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$239 99 $285.18 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$285.18 $239 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC163
- Includes: A-Frame Jack, Trailer Coupler
