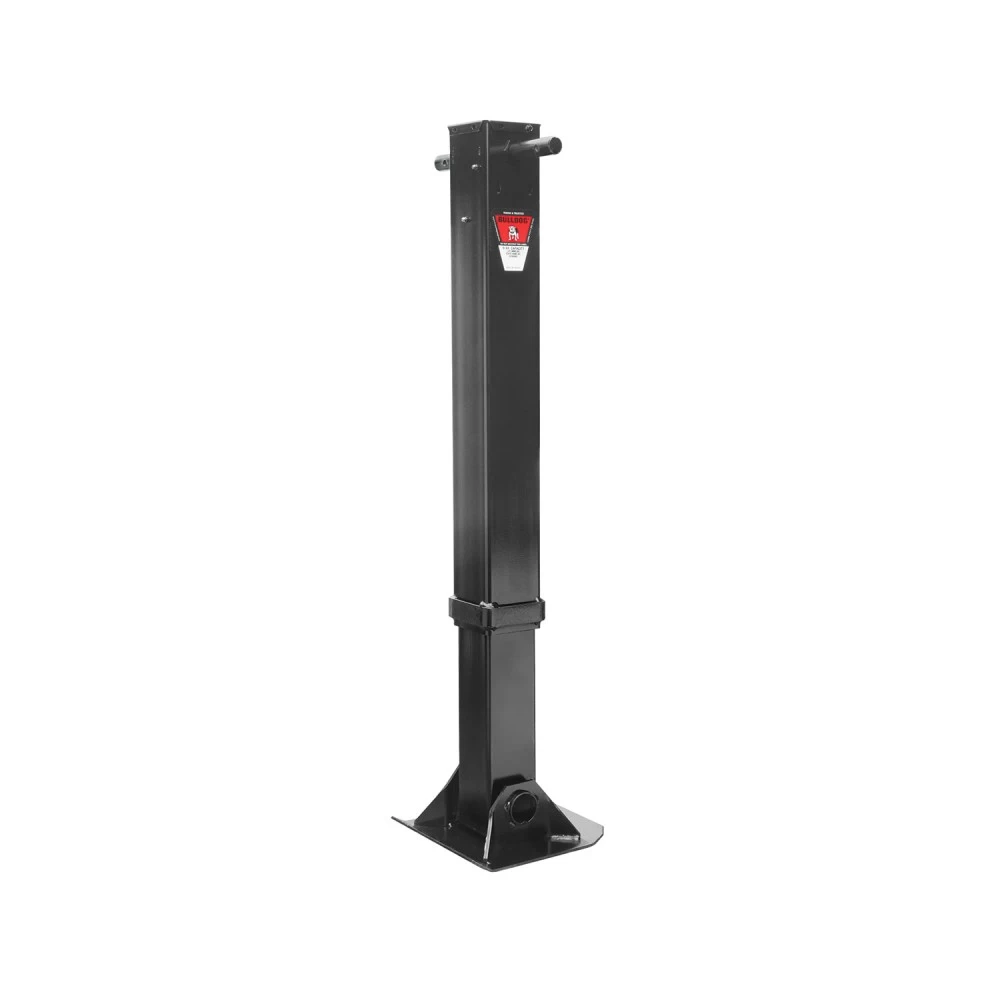

Bulldog 45,000 lbs. Trailer Jack Weld On 17" Lift Fixed Leg

Bulldog 45,000 lbs. Trailer Jack Weld On 17" Lift Fixed Leg

Bulldog 45,000 lbs. Trailer Jack Weld On 17" Lift Fixed Leg
Bulldog 45,000 lbs. Trailer Jack Weld On 17" Lift Fixed Leg
Home Trailer Parts Trailer Jacks Heavy Duty Trailers
0 reviews - Write a review
Bulldog 45,000 lbs. Trailer Jack Weld On 17" Lift Fixed Leg
$343.82
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 1823050383
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

Bulldog HEAVY DUTY SQUARE TRAILER JACK is Ideal for horse, livestock and heavy duty trailers.

Direct Weld Trailer Jack

Features

  • Easy-access grease fittings

  • Heavy duty leg band for added strength. Sand shoe designed to maximize connection strength

Specifications:

  • AAR & TTMA rated (all values per pair):

    • 22,500 lbs. lifting capacity (@ 100 ft. lbs input torque)

    • 45,000 lbs. static capacity

  • Competitive Cranking ratios:

  • 17" of Travel

  • Retracted Height: 31.7"

  • Extended Height: 48.7

  • High efficiency, double lead screw

  • Heavy duty, self-leveling screw

  • Black painted finish

  • Industry leading 5-year warranty



    This Single speed Jack can be combined with another Bulldog Single or 2-Speed Jack for Tandem Landing Gear applications

Specification
Jack Style Direct Weld HD
Finish Black
Static Capacity 45000
Lift Capacity 22500
Lift Style Sidewind
Travel 17"
Retracted 31.7"
Extended 48.7"
Clearance Varies
Tubing Width 4"
Leg Fixed Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Single Speed Jack, Direct Weld. Crank sold separately.
