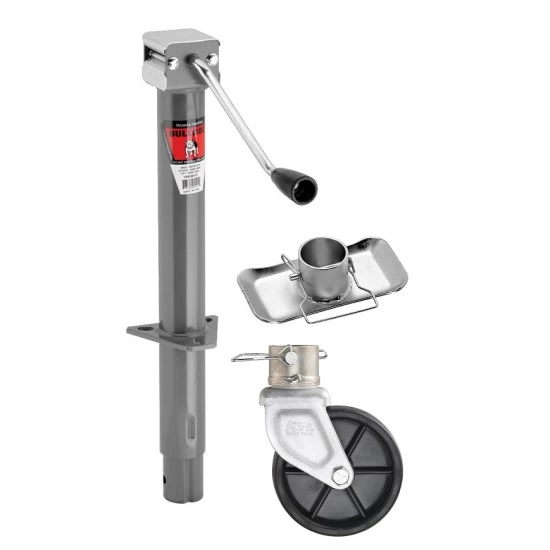

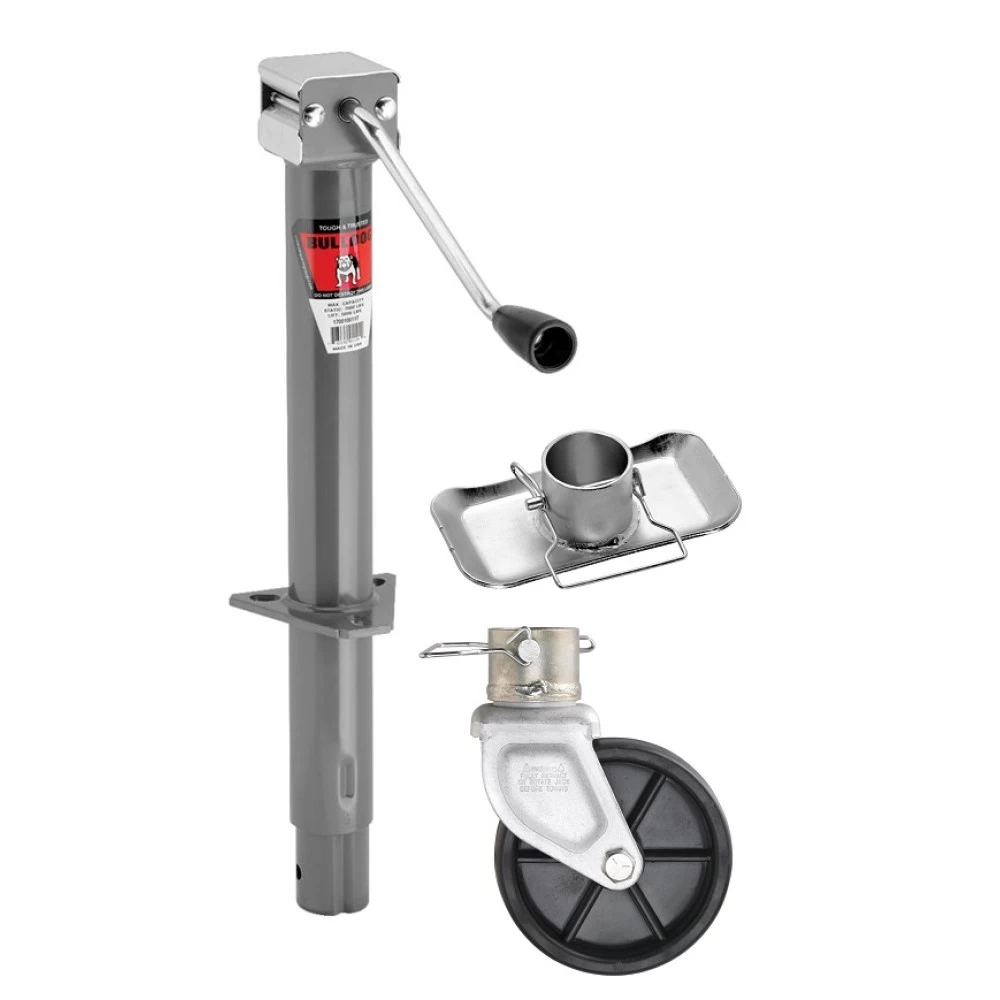

Bulldog 5,000 lbs. Round A-Frame Trailer Jack Sidewind 15" Footplate & 6" Wheel
Model: 1700100317 1400700340 1400750340Custom Fit A-Frame Trailer Jack

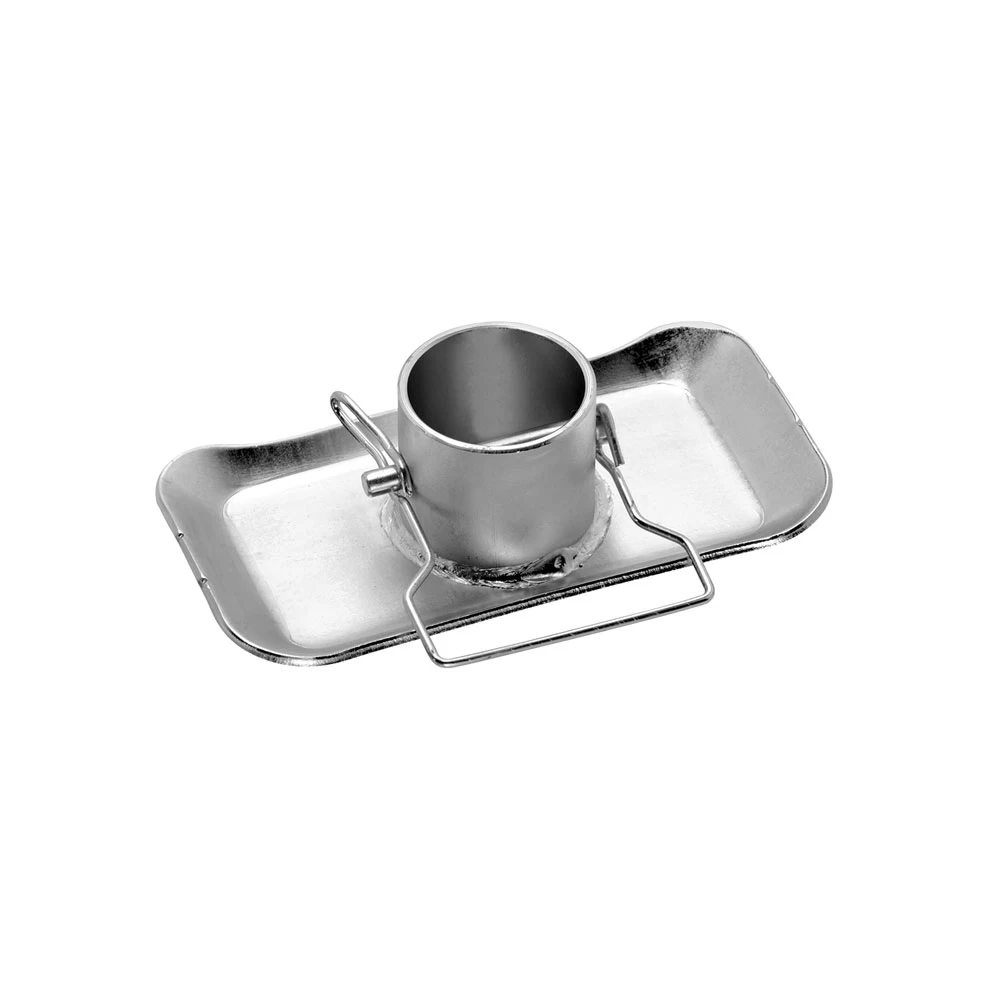

Trailer Jack Plate
Trailer Jack Caster
Installation Hardware
Installation Instructions

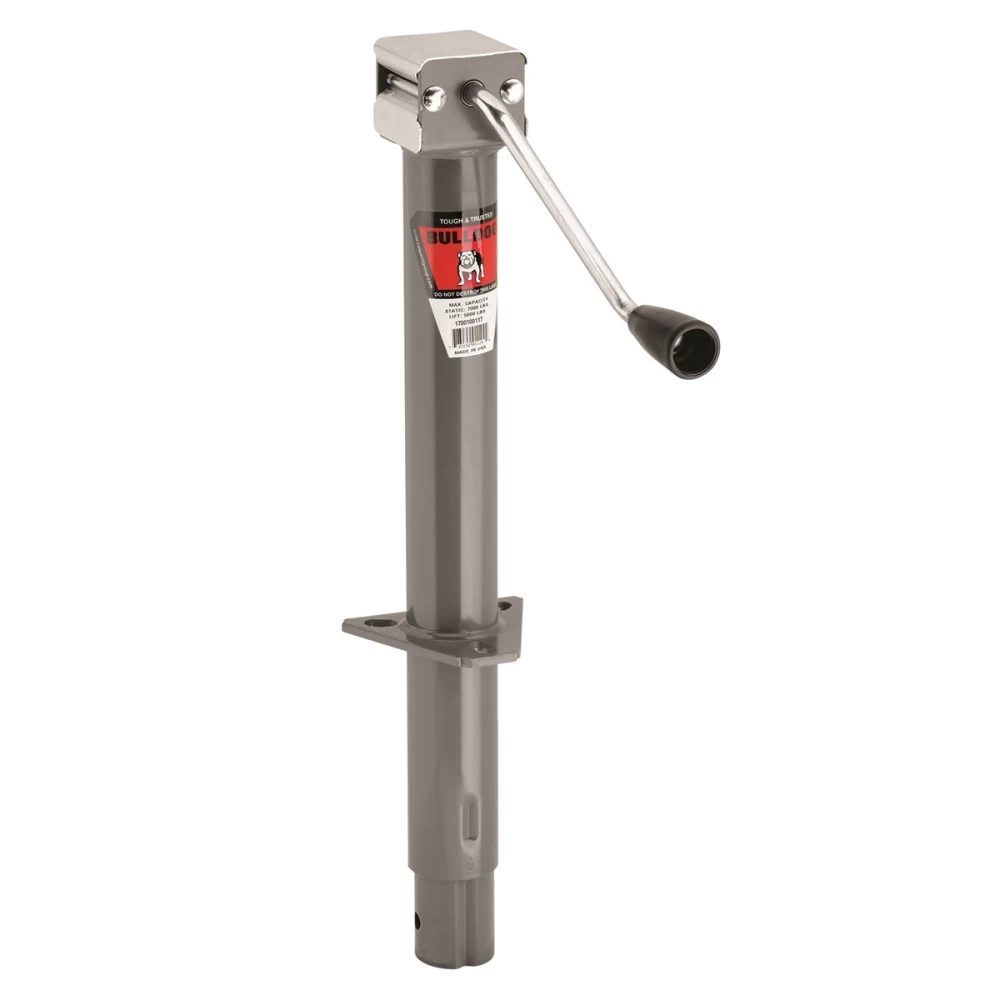

A-Frame Trailer Jack Specs:
Part Number | 1700100317 |
Brand |
BULLDOG
|
Lift Capacity |
5,000 lbs
|
Sidewind | 15" |
Retracted | 8.6" |
Extended | 23.6" |
Clearance | 12.75" |
Warranty | 5 Year |
Install Instructions | ![]() |
Part Number | 1400700340 |
Brand |
Reese Towpower
|
Finish | Bright Zinc |
Warranty | 1 Year |

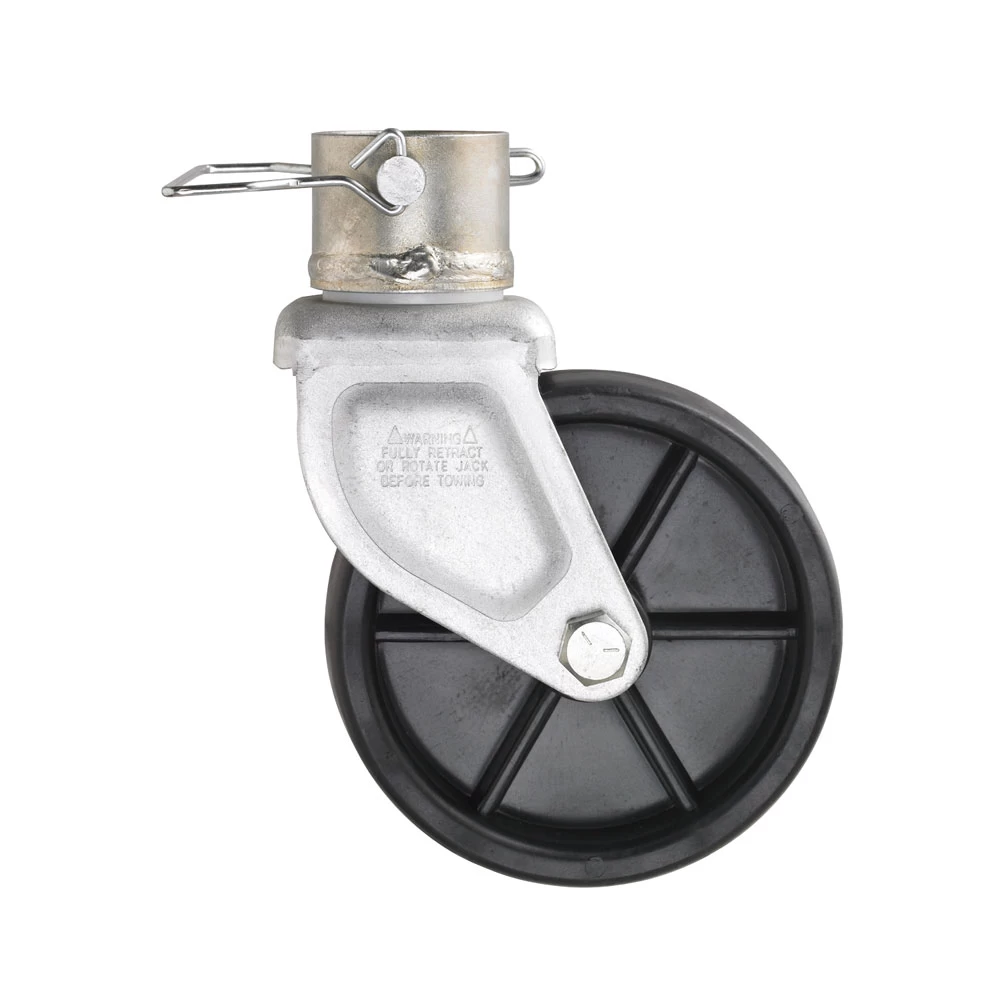

Trailer Jack Caster Specs:
Part Number | 1400750340 |
Brand |
Pro Series
|
Size | 6" |
Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
$111 47 $135.63 18% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$135.63 $111 47
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 1700100317 1400700340 1400750340
- Includes: 5K A-Frame Jack + Foot + Caster Wheel
Specification | |
Jack Style | A-Frame |
Finish | Gray |
Static Capacity | 5000 |
Lift Capacity | 5000 |
Lift Style | Sidewind |
Travel | 15" |
Retracted | 8.60" |
Extended | 23.60" |
Clearance | 12.75" |
Inner tubing diameter | 2" |
Leg | Fixed Leg |
Outer tubing diameter | 2.25" |
Swivel | No |
Foot | Foot and Wheel |
Jack Shape | Round |
Description Facts | Handle to front. Weld-on/bolt-on bracket. Less wheel or base. |
