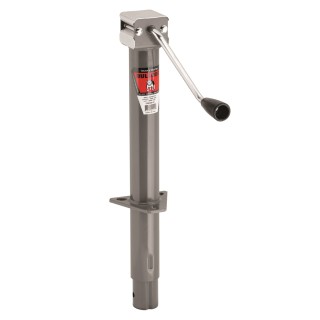

Bulldog 5,000 lbs. Round A-Frame Trailer Jack Sidewind 15" Lift

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

• Smooth, comfortable, ergonomic design

• Dependable vertical and side load capacity

• Proven reliability for long term use at rated loads

• Precision fitted parts for extra stability

• Grey painted outer and inner tube

• Limited 5-year warranty

Specifications:

• Lift Capacity: 5,000 lbs.

• Retracted Bracket Height: 8.60" from bracket to bottom

• Extended Bracket Height: 23.60"

• Travel/Lift: 15"

• Clearance: 12.85" from bracket to top

• Weld-on/bolt-on bracket works with any standard A-Frame mount

• Handle Radius: 5.80"

• Inner tube diameter: 2"

• Outer tube diameter: 2-1/4"

• Wheel and base sold separately
