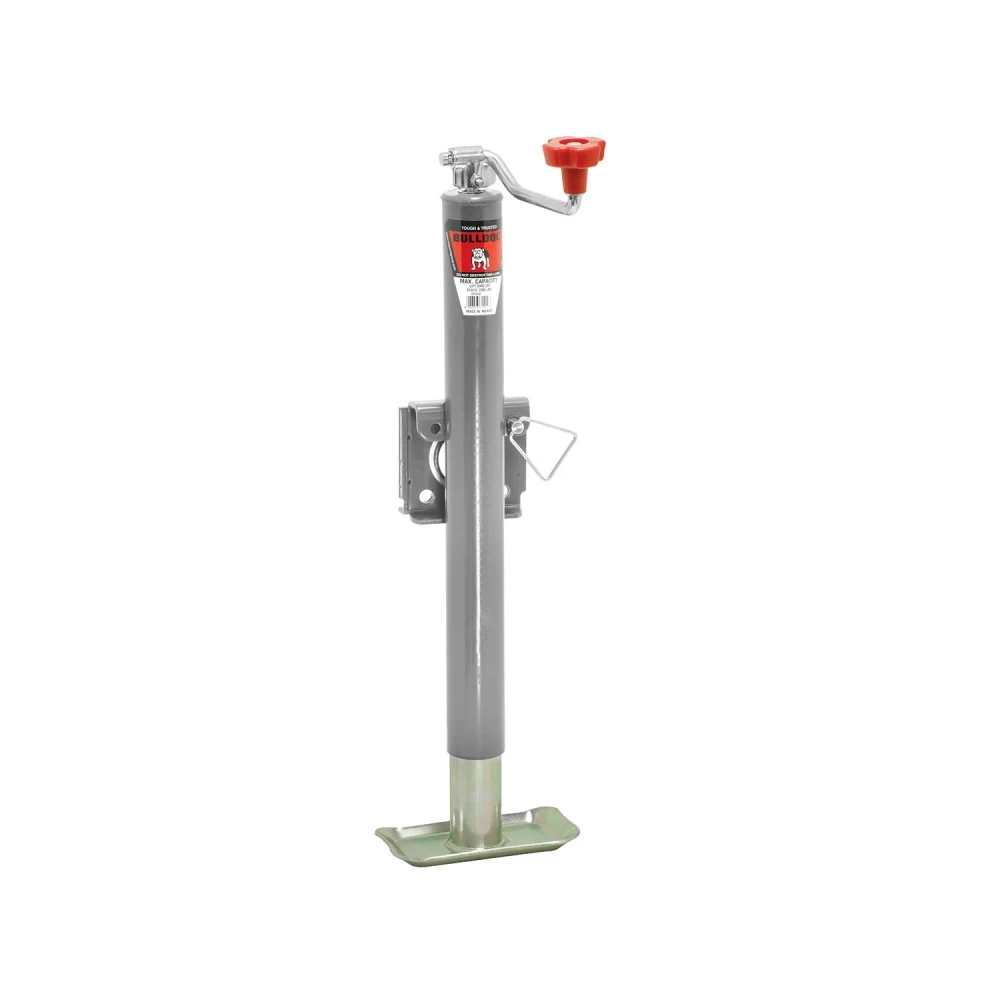

Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 15" Lift w/ Footplate

Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 15" Lift w/ Footplate

Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 15" Lift w/ Footplate
Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 15" Lift w/ Footplate
Home Boat and Marine Boat Trailer Jacks Snap-Ring Style Swivel Bracket Jack
0 reviews - Write a review
Bulldog 5,000 lbs. Round Snap-Ring Swivel Trailer Jack Topwind 15" Lift w/ Footplate
$95.45
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 171412
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.

  • Smooth, comfortable, ergonomic design

  • Dependable vertical and side load capacity

  • Proven reliability for long term use at rated loads

  • Precision fitted parts for extra stability

  • Grey painted outer and zinc inner tubes

  • Weld-on L-bend swivel bracket assembled

  • Limited 5-year warranty


Specifications:

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 14.50" from bracket to bottom

  • Extended Bracket Height: 29.50"

  • Travel/Lift: 10"

  • Clearance: 10" from bracket to top

  • Weld-On L-bend swivel bracket assembled

  • 1/2" diameter plunger pin

  • Includes footplate

  • Outer tube diameter: 2-1/4"

  • Inner tube diameter: 2"

  • Handle Radius: 6.65"

Specification
Jack Style Snap Ring
Finish Gray
Static Capacity 5000
Lift Capacity 5000
Lift Style Topwind
Travel 15"
Retracted 14.50"
Extended 29.50"
Clearance 10.00"
Inner tubing diameter 2"
Leg Fixed Leg
Outer tubing diameter 2.25"
Swivel Yes
Foot Footplate
Jack Shape Round
Description Facts Weld-on L-bend swivel bracket assembled. 1/2" diameter plunger pin. With footplate.
