Name: Bulldog 5,000 lbs. Square Trailer Jack Sidewind 15" Lift Drop Leg w/ Footplate
Brand: Bulldog
Price: 116.95 USD
Availability: InStock

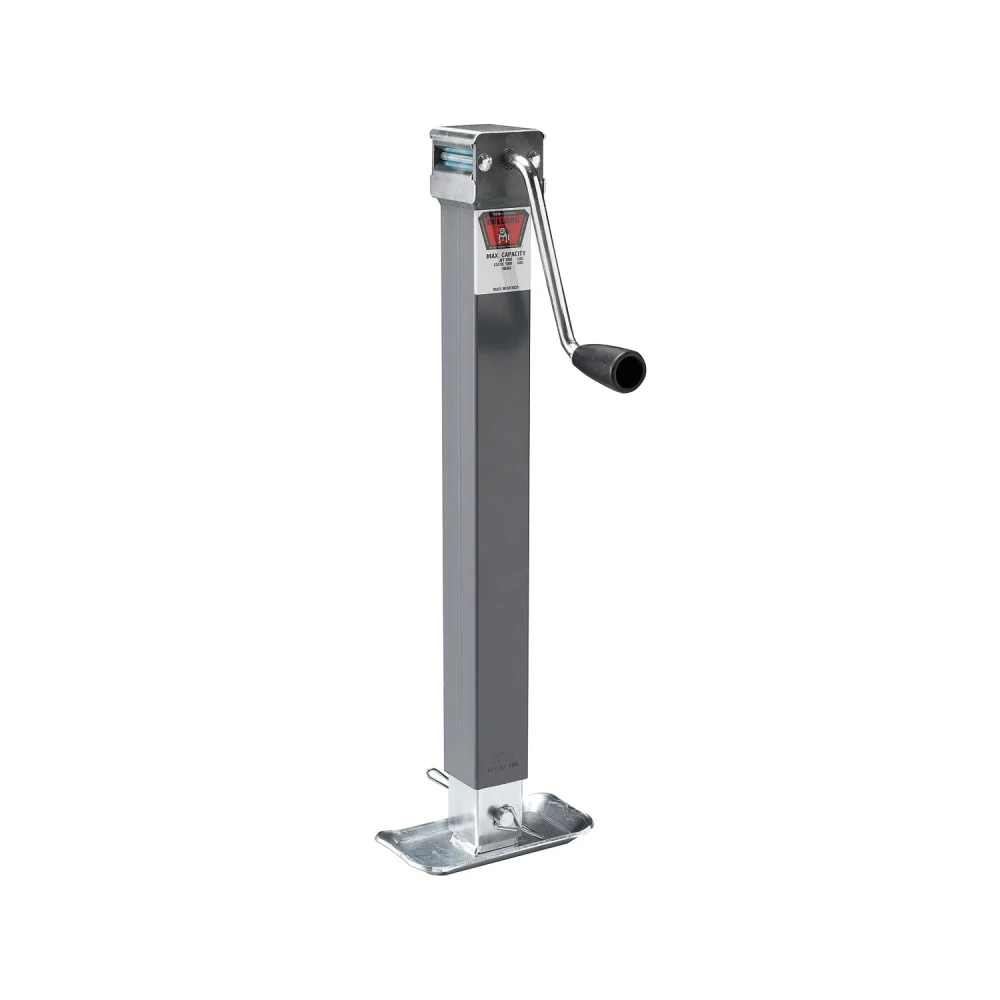

Bulldog 5,000 lbs. Square Trailer Jack Sidewind 15" Lift Drop Leg w/ Footplate

0 reviews - Write a review

$116.95

Stock: In Stock
Brand: Bulldog
Model: 195354

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing overall capacity.

12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
4.62" outer tube overlap at full extension for additional side load strength
Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
Outer inner tubes overlap which results in optimal side load performance
Use the painted outer tube as the final finish or primer
Limited 5-year warranty
ASABE ASABE compliant

Specifications:

Support Capacity: 5,000 lbs.
Lift Capacity: 3,000 lbs.
Retracted Bracket Height: 25.50"
Extended Bracket Height: 54.10"
Travel/Lift: 15"
This Jack is intended to be welded on directly onto your application
Drop Leg w/ Footplate (Drop Leg offers 13.50" of additional adjustment)
Handle Radius: 6.5"
Sidewind model
2-1/4" Tubing width

Specification
Jack Style	Direct Weld HD
Finish	Gray
Static Capacity	5000
Lift Capacity	3000
Lift Style	Sidewind
Travel	15"
Retracted	25.50"
Extended	54.10"
Clearance	Varies
Tubing Width	2.25"
Leg	Drop Leg
Swivel	No
Foot	Footplate
Jack Shape	Square
Description Facts	Drop leg with base. Drop leg offers 13.50" additional adjustment.
Spring Return	No
