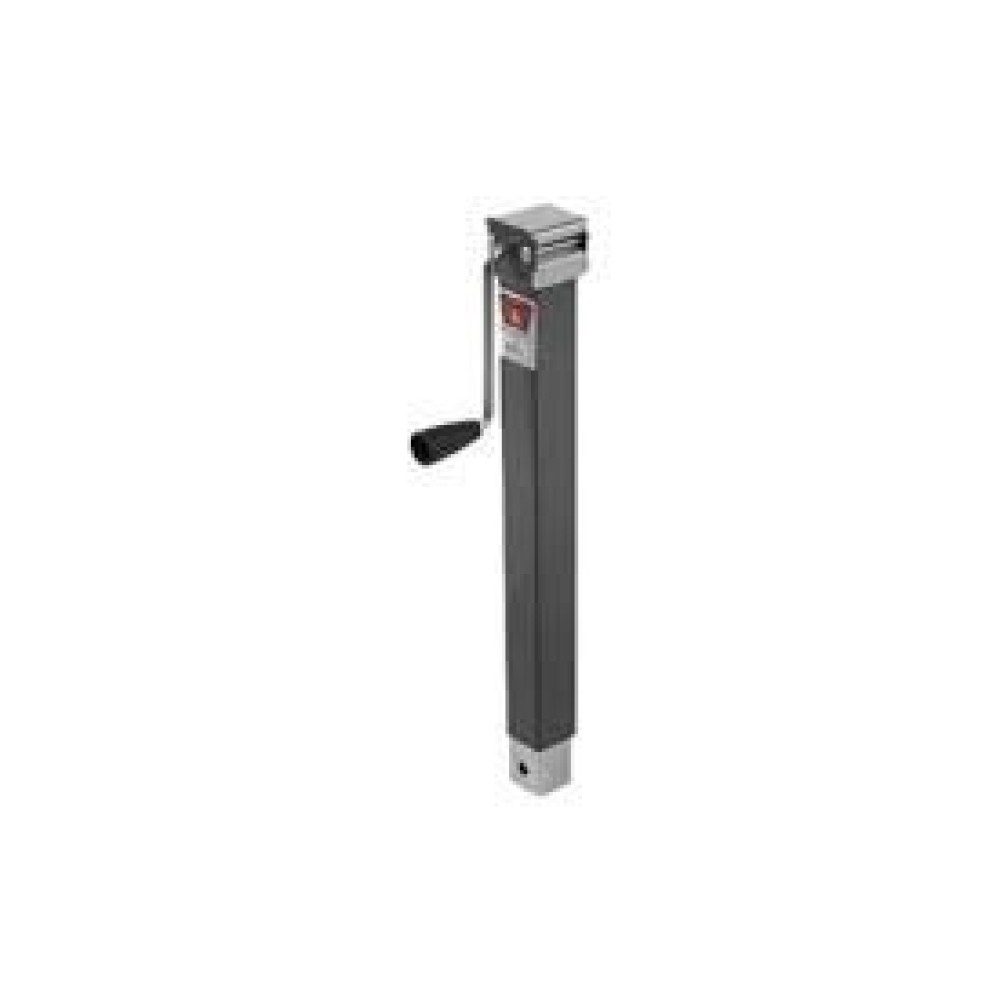

Bulldog 5,000 lbs. Square Trailer Jack Sidewind 15" Lift Fixed Leg w/o Footplate
Model: 195369SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing overall capacity.
12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
4.62" outer tube overlap at full extension for additional side load strength
Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
Outer inner tubes overlap which results in optimal side load performance
Use the painted outer tube as the final finish or primer
Limited 5-year warranty
ASABE ASABE compliant
Specifications:
Support Capacity: 5,000 lbs.
Lift Capacity: 3,000 lbs.
Retracted Bracket Height: 24.20"
Extended Bracket Height: 39.20"
Travel/Lift: 15"
This Jack is intended to be welded on directly onto your application
Fixed Leg, footplate is not included
Handle Radius: 6.5"
Sidewind model
2-1/4" Tubing width
