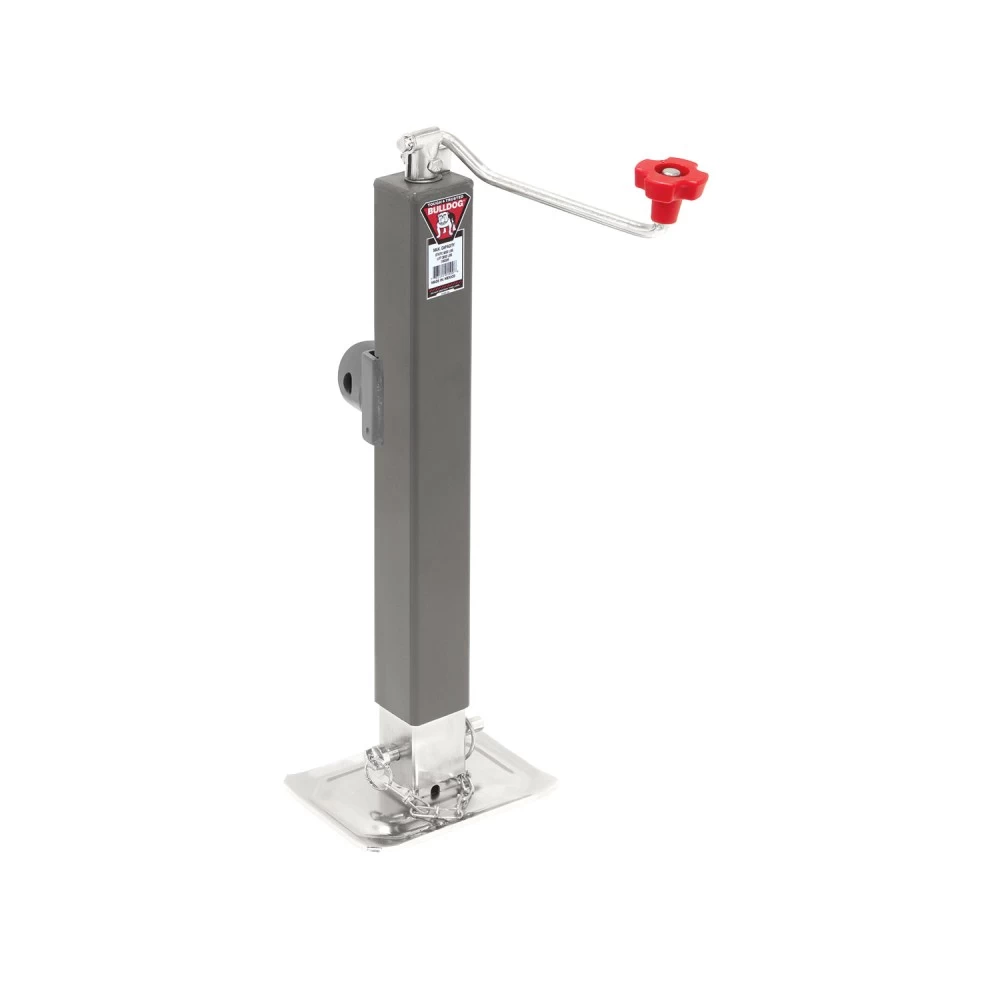

Bulldog 5,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Topwind - 15" Lift

SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing  overall capacity.

• 12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity

• 4.62" outer tube overlap at full extension for additional side load strength


• Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes

• Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance


• Mounts included in this series of jacks

• Outer inner tubes overlap which results in optimal  side load performance

• Use the painted outer tube as the final finish or primer


• Limited 5-year warranty

• ASABE ASABE compliant

Specifications:

• Support Capacity: 5,000 lbs.

• Lift Capacity: 3,000 lbs.


• Retracted Bracket Height: 15.20" from bracket to bottom


• Extended Bracket Height: 30.20"

• Travel/Lift: 15"


• Clearance: 7" from bracket to top

• Fixed leg with base


• Round tubular swivel mount (includes male mating mount, pin and chain)


• Footplate and handle are included


• Handle Radius: 6.5"

• Topwind models - bushing in top cap,  eagle claw grip

• 2-1/4" Tubing width
