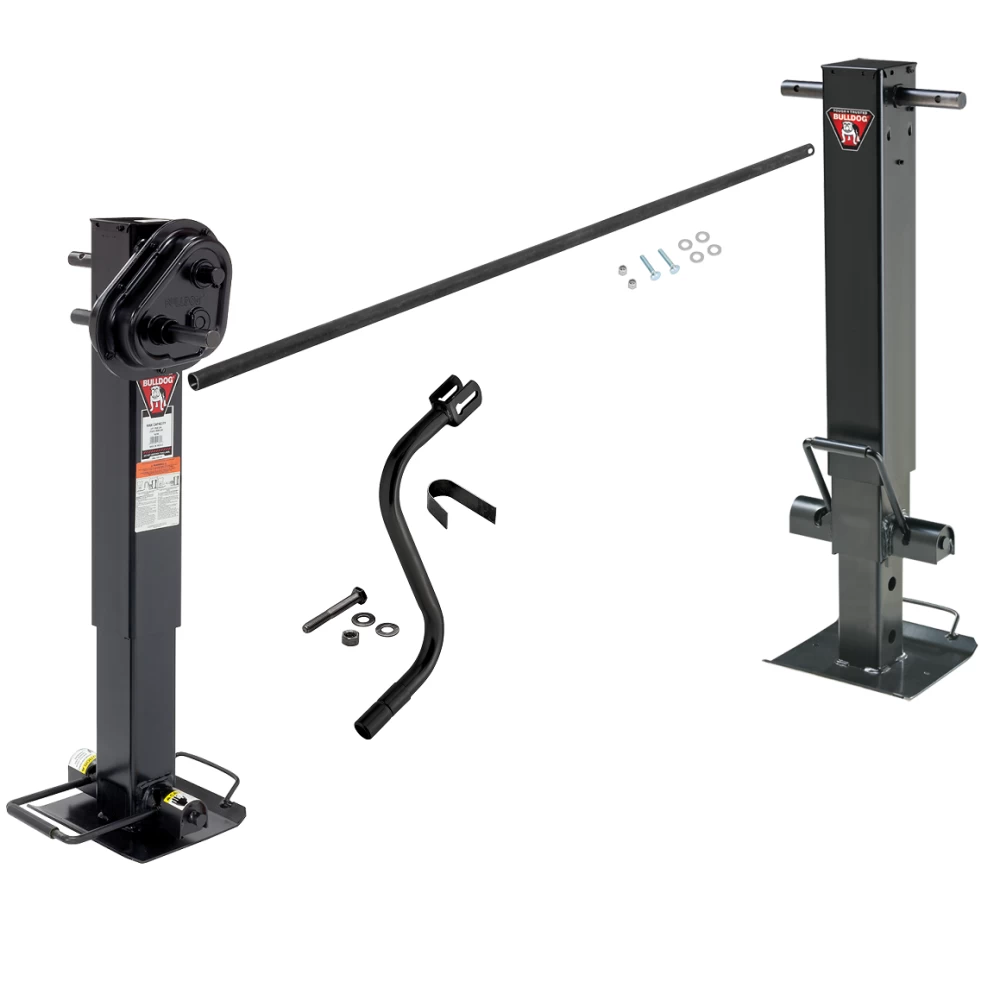

Bulldog 50K 2 Speed Twin Cam Landing Gear Set Two Speed Trailer Jack Traditional Gearbox and Companion Jack Spring Return Drop Legs, Cross Shaft Tube w/ Slotted Ends and Hardware, Manual Override Crank

Bulldog Tandem 50K Dual 2-Speed Twin Cam Trailer Jacks Landing Gear with Crosshaft

Elevate your trailer setup with our premium landing gear bundle, featuring two Bulldog Twin Cam Trailer Jacks (model 183750) with a 2-Speed traditional gearbox and spring return drop legs, alongside its companion model 182701. Connected by a crossdrive crosshaft (model CS730300), this setup is ideal for a variety of trailers, ensuring exceptional convenience and performance.

Comprehensive Package Details

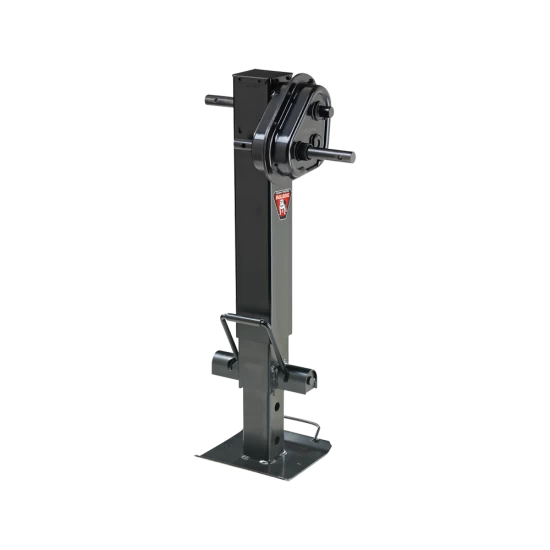

Bulldog Trailer Jack 2-Pack - Models 183750 and 182701

Discover unparalleled support with these steel jacks, finished with a weather-resistant coating for durable, heavy-duty lifting and support.

Primary Features:

• Twin Cam Drop Leg Mechanism for superior static capacity and control.
• Enclosed Twin Cam to prevent dirt and debris interference.
• Precise Alignment for consistent engagement of the drop leg tube.
• Tandem Operation via Crosshaft for simplified single-handle control.

Enhanced Convenience with 2-Speed Functionality:

• 2-Speed Landing Gear allowing for quick and efficient adjustment.
• High-Speed Cranking Ratio of 9 turns per inch for loads up to 25,000 lbs.
• Low-Speed Ratio of 29.5 turns per inch for heavy lifting up to 45,000 lbs.

Distinguished Features:

• Grease Fittings for simplified maintenance.
• Screw Stop Technology to prevent over-extension damage.
• Serviceability with straightforward access to internal parts.
• Adjustability with five drop leg positions for enhanced customization.
• Heavy-Duty Steel Footplate for assured stability and support.
• Durable Input Shaft with a 1" diameter for enduring performance.

Optimized for Heavy-Duty Trailers

These jacks are perfect for supporting a range of heavy-duty trailers, offering easy raising, leveling, and stability.

• Weather-Resistant design for all-conditions durability.
• Direct-Weld Design for secure, hassle-free installation.
• Sidewind Crank available separately for convenience.
• Spring Return Drop Leg for effortless retraction and efficiency.

Compliance and Specifications

Our BULLDOG products are ASABE S485 compliant, reflecting our commitment to quality and reliability.

Technical Specifications:

• Bracket Height: 27-1/2" (Retracted), 53-1/2" (Extended)
• Total Lift: 26"
• Travel: 12-1/2"
• Drop Leg: 13-1/2"
• Manual Lift Capacity: 45,500 lbs
• Static Support Capacity: 50,000 lbs
• Footplate Dimensions: 10" x 10"
• 5-year warranty for peace of mind.

Crosshaft Specifications

The cross shaft tube (72-3/4" long) supports tandem operation, adjustable to meet specific needs.

Choose the BULLDOG Trailer Jacks (models 183750 and 182701) for unparalleled performance and reliability, all backed by a 5-year warranty. Contact us at 877-869-6690 to enhance your trailers with the best. Our landing gear sets the standard in strength and durability, certified ASABE S485 compliant.
