Bulldog 5K Round A-Frame Trailer Jack Sidewind 15" Lift w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC165BULLDOG 5K Round A-Frame Trailer Jack (15" Lift) + 12.5K Collar-Lok Coupler for 2-5/16" Ball
This convenient bundle combines a reliable 5,000-pound capacity BULLDOG Round A-Frame Jack with 15 inches of travel and a heavy-duty 12,500-pound BULLDOG Collar-Lok A-Frame Coupler. Ideal for utility, horse/livestock, cargo, and construction trailers, this setup is designed for exceptional performance and lasting durability.

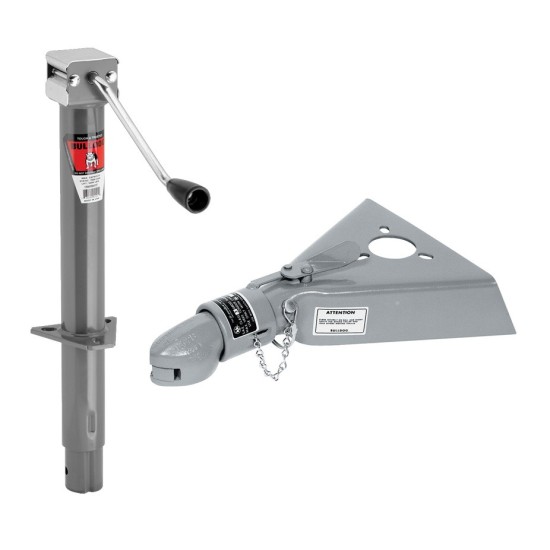

Bundle Contents:

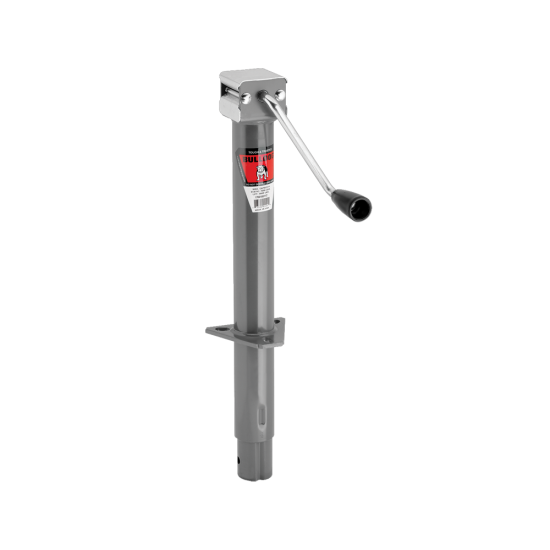

- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15 Inch Travel
- BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers.
- For more than three quarters of a century, BULLDOG jacks have been proven to be the most reliable, field-tested jacks on the market.
- Smooth, comfortable, ergonomic design.
- Dependable vertical and side load capacity.
- Precision-fitted parts for extra stability.
- A-Frame models feature grey painted outer and inner tubes.
- Custom finishes available upon request.
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16 Inch Diameter, 12,500 lbs. Capacity
- Designed for utility, horse/livestock, cargo, and construction trailer applications.
- BULLDOG Collar-Lok couplers are the strongest in the industry, featuring the only automatic and continuously tight ball fit.
- Variety of styles, tongue mounts, and latches to match virtually any trailer.
- Adjustable couplers ensure level operation for different tow vehicles.
- Easiest to use, with a hinged ball socket for easy hookup.
- Provides a clear visual indication of proper closure.
Always verify your trailer’s requirements, perform regular maintenance, and ensure proper load ratings before every trip.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 13 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Exact Bracket-to-Top Clearance | 12.75 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$230 99 $277.50 17% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$277.50 $230 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC165
- Includes: A-Frame Jack, Trailer Coupler
