Bulldog 5K Round A-Frame Trailer Jack Topwind 15" Lift w/ 7K Collar-Lok Coupler for 2" Ball

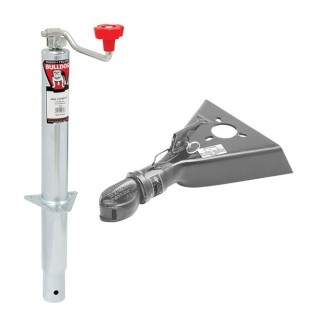

Model: BTJC19Bulldog 5K Round A-Frame Trailer Jack & 7K Collar-Lok Coupler Bundle
Upgrade your trailer’s performance with our Bulldog bundle featuring a 5,000 lb Round A-Frame Trailer Jack with a Topwind 15″ Lift and a 7,000 lb Collar-Lok Coupler. Engineered for durability and precision, this bundle is ideal for agricultural, commercial, and livestock trailer applications.
Bundle Contents:

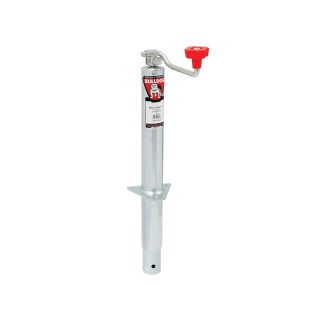

- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Topwind, Bolt-On, 15 Inch Travel
- Recognized industry standard with over 75 years of proven reliability
- Smooth, comfortable, and ergonomic design
- Dependable vertical and side load capacity
- Precision-fitted parts for extra stability
- Grey painted outer and inner tubes for enhanced durability
- Custom finishes available upon request

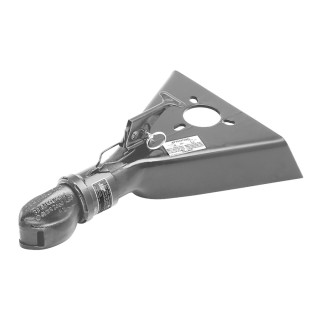

- QTY (1): Collar-Lok™ A-Frame Coupler, 2 Inch Diameter, 7,000 lbs. Capacity
- Designed for utility, horse/livestock, cargo, and construction trailers
- Features the only automatic and continuously tight ball fit in the industry
- Variety of coupler styles, tongue mounts, and latches available
- Adjustable couplers assure level operation with various vehicles
- Easiest to use with a hinged ball socket and clear visual closure
For optimal performance, always verify compatibility with your trailer’s original equipment and perform regular maintenance checks to ensure safe and secure operation.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 11 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 26 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 11 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.82 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 25.82 Inch |
| Exact Bracket-to-Top Clearance | 10.70 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$200 00 $238.70 16% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$238.70 $200 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BTJC19
- Includes: A-Frame Jack, Trailer Coupler
