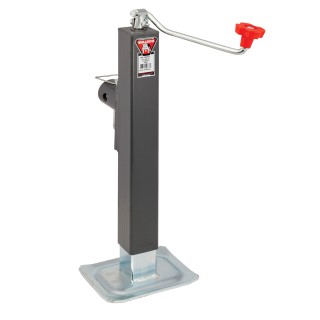

Bulldog 8,000 lbs Square Trailer Jack Tubular Swivel Mount Topwind - 15" Lift w/o Mating Mount

Bulldog 8,000 lbs Square Trailer Jack Tubular Swivel Mount Topwind - 15" Lift w/o Mating Mount
Bulldog 8,000 lbs Square Trailer Jack Tubular Swivel Mount Topwind - 15" Lift w/o Mating Mount
$134.64
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 190724

Applies to this product only

SQUARE JACKS BULLDOG’s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4"  square tube jacks are too big!

  • Use the painted outer tube as the final finish or primer

  • Zinc-plated inner tube

  • 4.7" Outer / inner tube overlap - results in optimal  side load performance

  • 5/8" screw stem - provides insurance against screw  stem twisting off

  • Patented screw nut stop - prevents screw and/or  nut damage when jack is fully extended

  • Limited 5-year warranty

  • ASABE Compliant


Specifications:

  • Support Capacity: 8,000 lbs.

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 15.10" from bracket to bottom

  • Extended Bracket Height: 30.10"

  • Travel/Lift: 15"

  • Clearance: 7" from bracket to top

  • Fixed leg with heavy duty base

  • Round tubular swivel mount welded to outer tube (includes pin and chain, without mating mount)

  • Handle included

  • Handle Radius: 9"

  • Topwind model - bushing in top cap,  eagle claw grip

  • 2-1/2" Tubing width

Specification
Jack Style Pipe Mount
Finish Gray
Static Capacity 8000
Lift Capacity 5000
Lift Style Topwind
Travel 15"
Retracted 15.10"
Extended 30.10"
Clearance 7.00"
Tubing Width 2.5"
Leg Fixed Leg
Swivel Yes
Foot Footplate
Jack Shape Square
Description Facts Fixed leg with heavy-duty base. With tubular swivel mount (includes pin and chain, without mating mount, use 0031550300).
