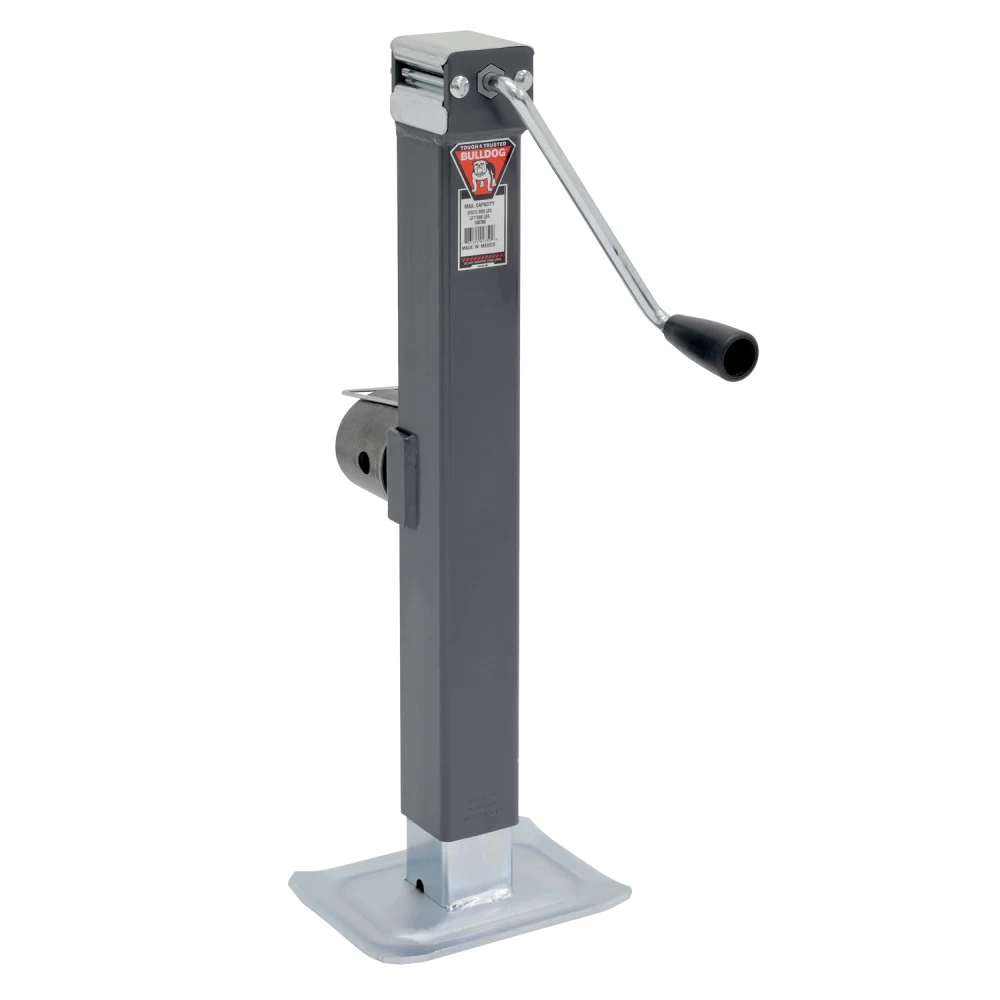

Bulldog 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Sidewind - 15" Lift

0 reviews - Write a review

$139.30

Stock: In Stock
Brand: Bulldog
Model: 190756

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

Description

SQUARE JACKS BULLDOG’s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!

Use the painted outer tube as the final finish or primer
Zinc-plated inner tube
4.7" Outer / inner tube overlap - results in optimal side load performance
5/8" screw stem - provides insurance against screw stem twisting off
Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
Limited 5-year warranty
ASABE Compliant

Specifications:

Support Capacity: 8,000 lbs.
Lift Capacity: 5,000 lbs.
Retracted Bracket Height: 12.16" from bracket to bottom
Extended Bracket Height: 27.16"
Travel/Lift: 15"
Clearance: 12.40" from bracket to top
Fixed leg with heavy duty base
Round tubular swivel mount welded to outer tube (includes male mating mount, pin and chain)
Handle included
Handle Radius: 8.5"
Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
Sidewind models - 1:1.33 gear ratio
2-1/2" Tubing width

Specifications

Specification
Jack Style	Pipe Mount
Finish	Gray
Static Capacity	8000
Lift Capacity	5000
Lift Style	Sidewind
Travel	15"
Retracted	12.16"
Extended	27.16"
Clearance	12.40"
Tubing Width	2.5"
Leg	Fixed Leg
Swivel	Yes
Foot	Footplate
Jack Shape	Square
Description Facts	Fixed leg with heavy-duty base. With tubular swiv- el mount (includes mating mount, pin and chain).

Reviews

Questions & Answeres

Be the first to ask a question.

Tags: 190756 , BULLDOG , Square , Trailer , Jack , Side , Mount , 8000 , lbs. , Support , Capacity , Side , Wind , Weld-On , 15 , inch , Travel
