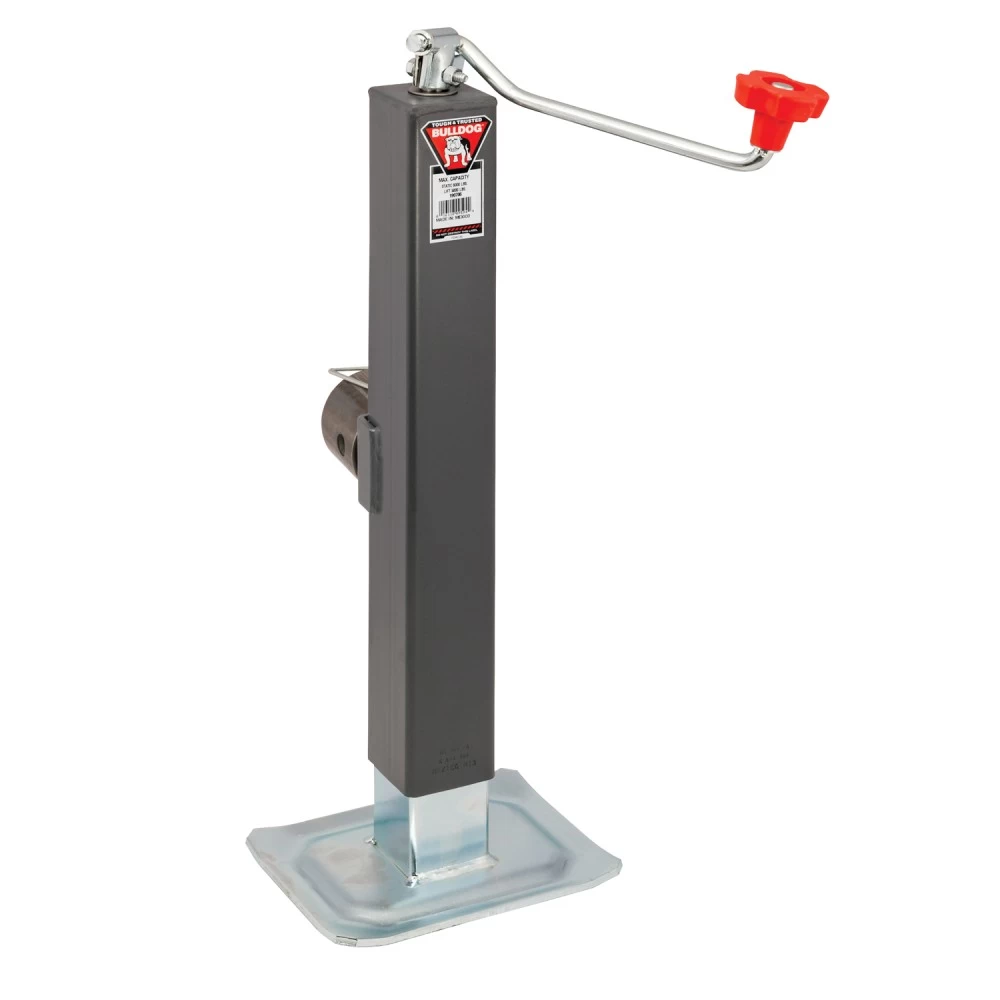

Bulldog 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Topwind - 15" Lift

Bulldog 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Topwind - 15" Lift
Bulldog 8,000 lbs Square Trailer Jack w/ Round Tubular Swivel Mount Topwind - 15" Lift
$122.73
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 190706

Applies to this product only

SQUARE JACKS BULLDOG’s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4"  square tube jacks are too big!

  • Use the painted outer tube as the final finish or primer

  • Zinc-plated inner tube

  • 4.7" Outer / inner tube overlap - results in optimal  side load performance

  • 5/8" screw stem - provides insurance against screw  stem twisting off

  • Patented screw nut stop - prevents screw and/or  nut damage when jack is fully extended

  • Limited 5-year warranty

  • ASABE Compliant


Specifications:

  • Support Capacity: 8,000 lbs.

  • Lift Capacity: 5,000 lbs.

  • Retracted Bracket Height: 12.16" from bracket to bottom

  • Extended Bracket Height: 27.16"

  • Travel/Lift: 15"

  • Clearance: 10.25" from bracket to top

  • Fixed leg with heavy duty base

  • Round tubular swivel mount welded to outer tube (includes male mating mount, pin and chain)

  • Handle included

  • Handle Radius: 9"

  • Topwind model - bushing in top cap,  eagle claw grip

  • 2-1/2" Tubing width


Specification
Jack Style Pipe Mount
Finish Gray
Static Capacity 8000
Lift Capacity 5000
Lift Style Topwind
Travel 15"
Retracted 12.16"
Extended 27.16"
Clearance 10.25"
Tubing Width 2.5"
Leg Fixed Leg
Swivel Yes
Foot Footplate
Jack Shape Square
Description Facts Fixed leg with heavy-duty base. With tubular swiv- el mount (includes mating mount, pin and chain).
