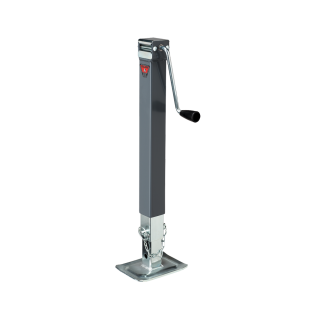

Bulldog 8K Square Drop Leg Trailer Jack Sidewind 15" Lift 13.5" Drop Leg w/ Footplate 1:1.33 gear ratio

BULLDOG 8,000 lbs. Square Jack

The BULLDOG 8,000 lbs. Square Jack is engineered to meet the needs of the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. Its compact design is perfect for applications where space is at a premium, offering a robust support capacity in a more manageable size compared to traditional 3" and 4" square tube jacks.

Features:

• Painted outer tube serves as a final finish or primer, providing versatility in application.
• Zinc-plated inner tube and drop leg for corrosion resistance and durability.
• 4.7" outer/inner tube overlap ensures optimal side load performance.
• 5/8" screw stem offers additional security against twisting off.
• Patented screw nut stop prevents screw and/or nut damage when the jack is fully extended.
• Topwind models feature a bushing in top cap and eagle claw grip for easy handling.
• Sidewind models include a 1/4" cross pin that connects the gear train to the screw stem, guarding against shearing, and offer a 1:1.33 gear ratio for efficient operation.

Specifications:

• Jack Style: Direct Weld HD
• Static Capacity: 8,000 lbs; Lift Capacity: 5,000 lbs
• Lift Style: Sidewind
• Travel: 15" with a retracted height of 25.06" and an extended height of 53.56"
• Finish: Gray, providing a sleek and protective coating.
• Tubing Width: 2.5" for a sturdy and reliable support base.
• Leg: Drop Leg with 13.50" additional adjustment for versatile use.
• Foot: Heavy-duty footplate for stable support.
• Jack Shape: Square, optimized for high load performance.

For inquiries or to order, enhance your trailer's functionality with this durable and compact square jack by calling us now at 877-869-6690.
