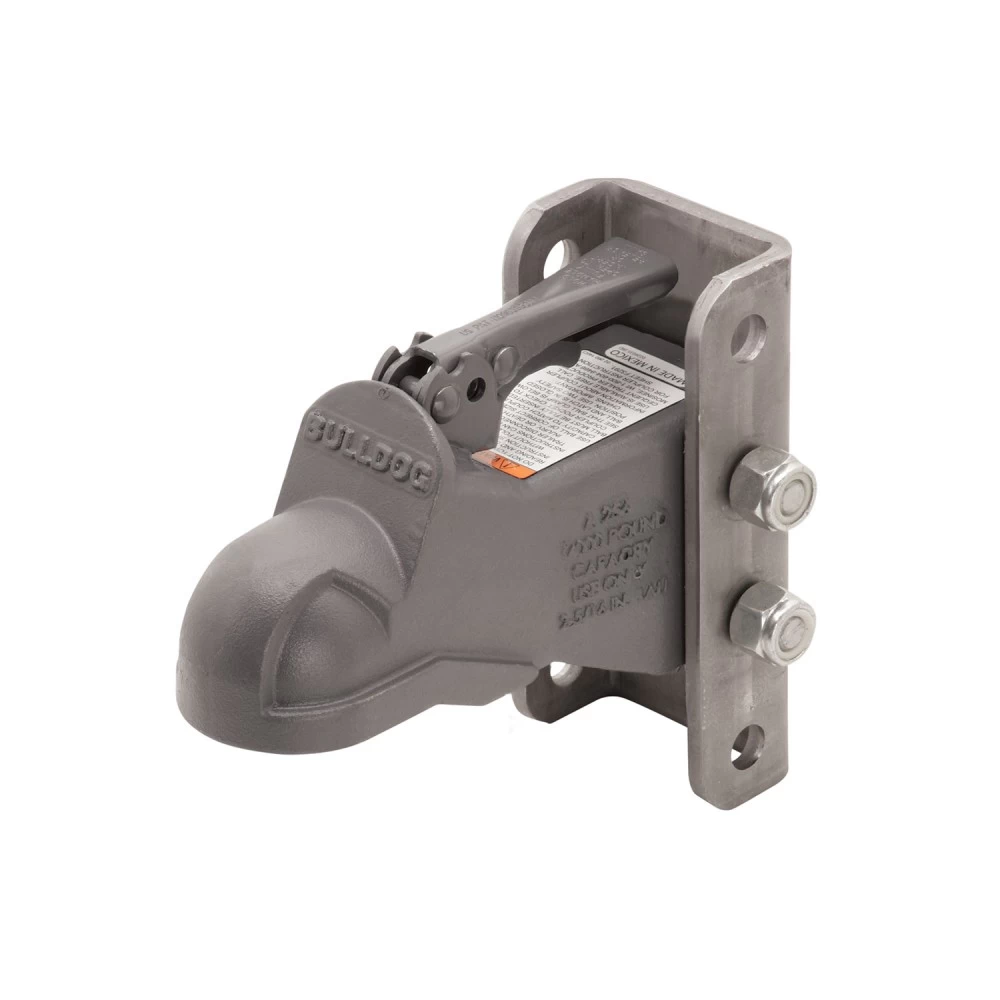

Bulldog Cast Head Trailer Coupler 2-5/16" Ball 14,000 lbs 3 Position Adjustable Channel Tongue Wedge Latch

Bulldog Cast Head Trailer Coupler 2-5/16" Ball 14,000 lbs 3 Position Adjustable Channel Tongue Wedge Latch
Bulldog Cast Head Trailer Coupler 2-5/16" Ball 14,000 lbs 3 Position Adjustable Channel Tongue Wedge Latch
$123.26
  • Stock: In Stock
  • Brand: Bulldog
  • Model: A2563C0317

Applies to this product only

HEAVY DUTY COUPLERS - CAST COUPLERS

Designed for utility, horse/livestock, cargo, and construction trailer applications, BULLDOG Couplers are the strongest in the industry. The patented cast head “Wedge-Latch®” coupler design is offered in heavyduty, A-frame, and convenient adjustable height models. Adjustable couplers assure level operation for trailers when pulled by a variety of different vehicles. The replaceable latching hardware allows for longer service life.

  • Quick and easy to engage
  • Strong and secure on the road
  • Patented Wedge-Latch® ball clamp design
  • Quick to hook up and disconnect
  • In compliance with SAE standard J684
Coupler Specs
Part Number A256C 0317
Brand Bulldog
Gross Trailer Weight 14,000 lbs.
Ball Size 2-5/16"
Application Fits inside 3" wide channel
SAE Class IV
Overall Length 9-1/2"
Latch Wedge-Latch
Material Cast Steel
Warranty 5 Year
Installation Instructions
Adjustable Channel Bracket Specs
Part Number AC300 0300
Brand Bulldog
Holes 4
Positions 3
Height 8"
Vertical Adjustment 4
Material High-strength steel
Warranty 5 Year

About Bulldog
Bulldog trailer couplers are the standard by which all others are measured. No other competitor offers the combination of heavy-duty materials, unique features and replaceable parts for outstanding performance and long life. That’s why Bulldog is the right selection for your heavy duty towing needs, whether its utility hauling, horses & livestock, travel trailer, RV, camper, cargo or construction trailer applications.
