Bulldog Square A-Frame Trailer Jack 5,000 lbs. Drop Leg Topwind 15" Lift

Bulldog Square A-Frame Trailer Jack 5,000 lbs. Drop Leg Topwind 15" Lift

Bulldog Square A-Frame Trailer Jack 5,000 lbs. Drop Leg Topwind 15" Lift
Bulldog Square A-Frame Trailer Jack 5,000 lbs. Drop Leg Topwind 15" Lift
Home Trailer Parts Trailer Jacks Medium Duty Tailers
0 reviews - Write a review

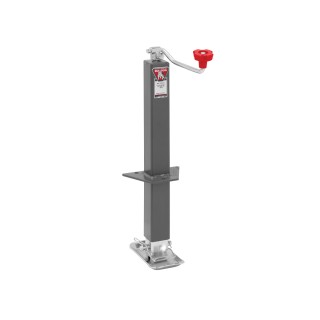

Bulldog Square A-Frame Trailer Jack 5,000 lbs. Drop Leg Topwind 15" Lift
$98.64
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 195318
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing  overall capacity.

  • 12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity

  • 4.62" outer tube overlap at full extension for additional side load strength

  • Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes

  • Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance

  • Mounts included in this series of jacks

  • Outer inner tubes overlap which results in optimal  side load performance

  • Use the painted outer tube as the final finish or primer

  • Limited 5-year warranty

  • ASABE ASABE compliant



Specifications:

  • Support Capacity: 5,000 lbs.

  • Lift Capacity: 3,000 lbs.

  • Retracted Bracket Height: 7.90" from bracket to bottom

  • Extended Bracket Height: 36.50"

  • Travel/Lift: 15"

  • Clearance: 14.70" from bracket to top

  • Drop Leg offers 13.50" additional adjustment

  • A-Frame Mount

  • Footplate and handle are included

  • Handle Radius: 6.5"

  • Topwind models - bushing in top cap,  eagle claw grip

  • 2-1/4" Tubing width

Specification
Jack Style Pipe Mount
Finish Gray
Static Capacity 5000
Lift Capacity 3000
Lift Style Topwind
Travel 15"
Retracted 7.90"
Extended 36.50"
Clearance 14.70"
Tubing Width 2.25"
Leg Drop Leg
Swivel Yes
Foot Footplate
Jack Shape Square
Description Facts Drop leg with base. Drop leg offers 13.50" addi- tional adjustment.
Spring Return No
