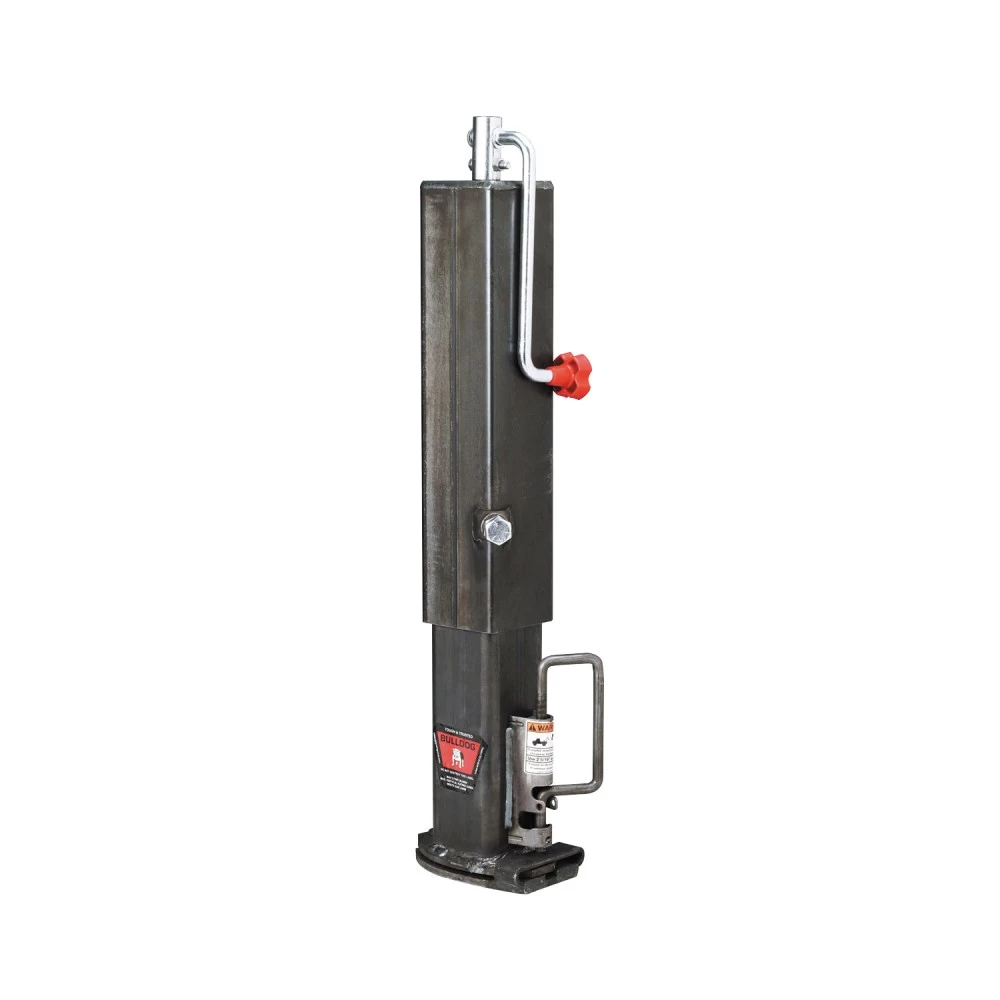

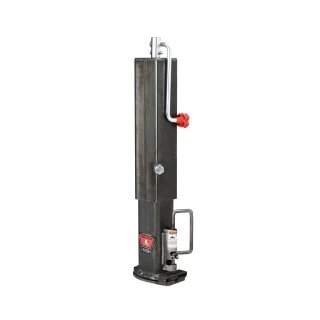

Bulldog Square Gooseneck Trailer Coupler 30,000 lbs 4.5" Outer Sleeve 4" Inner Tube Adjustable 2-5/16" Hitch Ball
$499.99
- Stock: In Stock
- Brand: Bulldog
- Model: 028900
30K Square Adjustable Gooseneck w/Pin and Top Crank Handle
You won’t find a coupler that’s faster or easier to use than the BULLDOG square gooseneck from Horizon Global. Its user-friendly design makes hookup and release swift and secure.
• Easy-grip locking handle is accessible from any position
• Self-centering locking plate lets you miss the ball by more than an inch
• Tight ball fit reduces jarring when changing speeds or on rough roads
• Heavy-duty high-strength fabricated steel components are as strong as heavy cast iron but lighter and less brittle
• User-friendly design enables quick, easy hookup and release
• Locking handle cover protects working parts
• Cam locking pin affords easy vertical adjustment
• Pinch bolt design
| Part Number | 028900 |
| Brand | Bulldog |
| Capacity | 30,000 lbs. |
| Retracted Height | 32" |
| Extended Height | 39" |
| Range of Adjustment | 7" |
| Ball SIze | 2-5/16" |
| Inner Tube Diameter | 4" |
| Inner Tube Wall Thicness | .313" |
| Outer Tube Diameter | 4.5" |
| Outer Tube Wall Thicness | .25" |
| Warranty | 5 Year |
| Installation Instructions |  |
About Bulldog
Bulldog trailer couplers are the standard by which all others are measured. No other competitor offers the combination of heavy-duty materials, unique features and replaceable parts for outstanding performance and long life. That’s why Bulldog is the right selection for your heavy duty towing needs, whether its utility hauling, horses & livestock, cargo or construction trailer applications.
