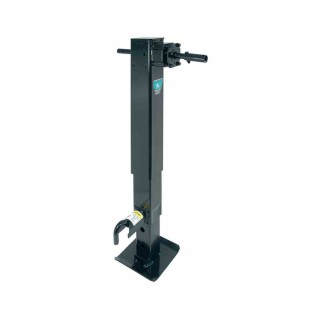

Bulldog Tandem 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Planetary Gearbox 26" Lift w/ Crank and Cross Shaft

Name: Bulldog Tandem 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Planetary Gearbox 26" Lift w/ Crank and Cross Shaft
Brand: Bulldog
Price: 679.99 USD
Availability: InStock

Bulldog Tandem 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Planetary Gearbox 26" Lift w/ Crank and Cross Shaft

0 reviews - Write a review

$679.99

Stock: In Stock
Brand: Bulldog
Model: 183816 182815 CS730300 1400920383

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

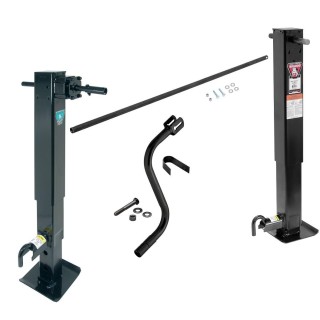

What's Included:
Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Planetary Gearbox 26" Lift
Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Spring Return
Crank Handle
73" Cross Shaft (Can be cut torequired length)

2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting planetary gearbox 27 turns per 1" of travel. In high gear, the cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.

State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads
Designed for today’s standard agricultural, construction and industrial trailer applications.
User friendly design makes operation smooth and easy
Drop Leg increases overall extension
Engineered alloys for enhanced strength, stability and sideload capability
Painted outer tube, inner tube, and drop leg.
Planetary gearbox fits within the width profile of the jack’s outer tube, eliminating the need for spacers

Specifications:

Support Capacity: 12,000 lbs.
Lift Capacity: 10,000 lbs.
Retracted Height: 29.5"
Extended Height: 55.6"
Travel/Lift: 12.5"
Spring Return Drop Leg allows 13.5” of additional adjustment
Standard disc foot included Change Gears by pushing handle in and out
Drop Leg Pull Pin is on the front
Crank Sold Separately
4" Tubing width

Specifications:

Support Capacity: 12,000 lbs.
Lift Capacity: 10,000 lbs.
Retracted Height: 29.5"
Extended Height: 55.6"
Travel/Lift: 12.5"
Spring Return Drop Leg allows 13.5” of additional adjustment
Standard disc foot included
Drop Leg Pull Pin is on the front
4" Tubing width

This Jack system can be paired with the Bulldog 2-Speed Electric Powered Drive Motor Kit, please use part number 1824180100. This is a 2-Speed Motor Kit.

Specification
Jack Style	Landing Gear
Finish	Black
Static Capacity	24000
Lift Capacity	20000
Lift Style	Sidewind
Travel	26"
Retracted	29.5"
Extended	55.6"
Clearance	Varies
Tubing Width	4"
Leg	Drop Leg
Swivel	No
Foot	Footplate
Jack Shape	Square
Description Facts	2-Speed, drop leg landing gear jacks with standard disc foot. 13.50" additional drop leg extension. Drop leg pull pin to the FRONT. Painted outer tube, inner tube, and drop leg.
Spring Return	Yes
