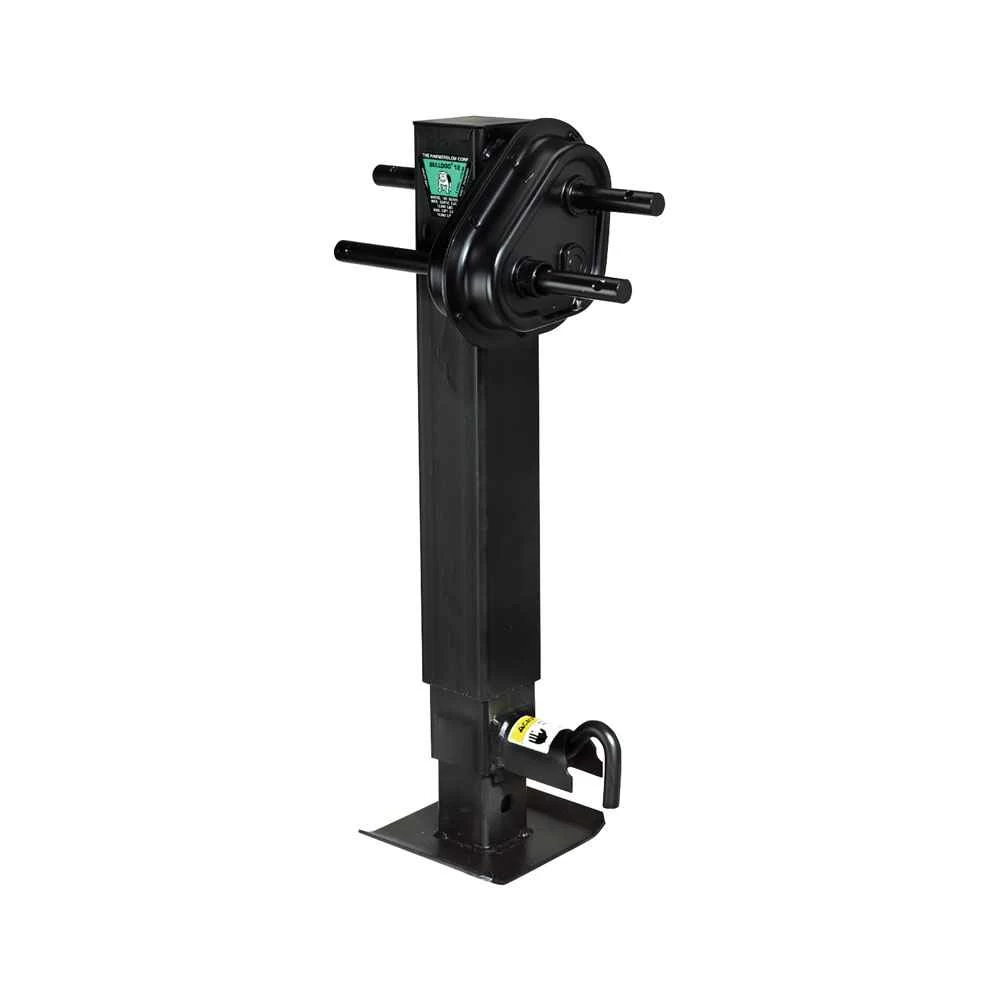

Bulldog Tandem 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift w/ Crank and Cross Shaft Side Plunger Pin
$729.99
  • Stock: In Stock
  • Brand: Bulldog
  • Model: 183902 182800 CS730300 1400920383
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Applies to this product only
Estimate

2-SPEED SQUARE JACKS The First 2-Speed Gearbox Designed with a Drop Leg Jack in Mind.

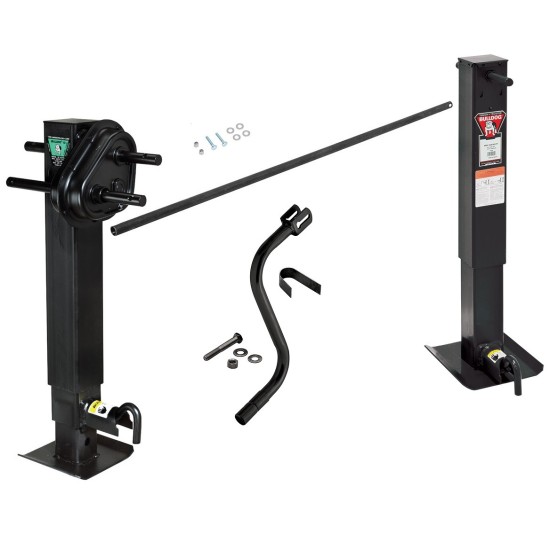

What's Included:
Bulldog 2-Speed 12,000 lbs Square Trailer Jack Drop Leg w/ Spring Return Traditional Gearbox 26" Lift
Bulldog 12,000 lbs. Square Trailer Jack Sidewind 26" Lift Drop Leg w/ Spring Return
Crank Handle
73" Cross Shaft (Can be cut torequired length)

BULLDOG’s 2-speed 12,000 lbs. support capacity square jack makes cranking easier when fully  loaded and faster when unloaded. In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting traditional gearbox 29 turns per 1" of travel. In high gear, the  cranking ratio is a speedy 9 turns per 1" of travel, the fastest in its weight class.

  • State of the art 2 speed gearbox with power and speed for the most effective and efficient jack at all loads

  • Designed for today’s standard agricultural,  construction and industrial trailer applications.

  • User friendly design makes operation smooth  and easy

  • Drop Leg increases overall extension

  • Engineered alloys for enhanced strength, stability and sideload capability

  • Painted outer tube, inner tube, and drop leg.



Specifications:

  • Support Capacity: 12,000 lbs.

  • Lift Capacity: 10,000 lbs.

  • Retracted Height: 29.5"

  • Extended Height: 55.6"

  • Travel/Lift: 12.5"

  • Spring Return Drop Leg allows 13.5” of additional adjustment

  • Standard disc foot included

  • Drop Leg Pull Pin is on the side

  • 4" Tubing width



Specification
Jack Style Landing Gear
Finish Black
Static Capacity 24000
Lift Capacity 20000
Lift Style Sidewind
Travel 26"
Retracted 28.5"
Extended 54.6"
Clearance Varies
Leg Drop Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts 2-Speed, drop leg with standard disc foot. 13.50" additional drop leg extension. Drop leg pull pin to the SIDE. Painted outer tube, inner tube, and drop leg. Crank sold separately.
Spring Return Yes
