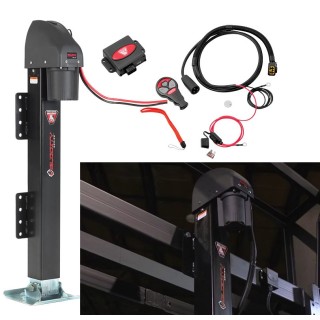

Bulldog Wireless 12K High Speed Powered Electric Trailer Jack Stand Landing Gear Velocity Series 24" Lift w/ Remote
Bulldog Wireless 12K High Speed Powered Electric Trailer Jack Stand Landing Gear Velocity Series 24" Lift w/ Remote

Bulldog Wireless 12K High Speed Powered Electric Trailer Jack Stand Landing Gear Velocity Series 24" Lift w/ Remote

Model: 185402 500527

Effortlessly Lift Your Trailer with Bulldog's High Speed Powered Electric Jack Stand

The Bulldog Velocity Series High Speed Jack is a high-speed system, equipped with a wireless remote control, allowing for a lift capacity of up to 12,000 lbs. per leg with secure, two-way digital transmission for control up to 90 feet away. Installation is easy; mounting is not required, nor is hydraulic oil, hoses, or pumps. This system offers 24” of travel with an approximate travel speed and current draw of 31 Inches per minute with no load and 15 amps, 30 Inches per minute at 4,000 lbs. with 40 amps, 26 Inches per minute at 8,000 lbs. with 65 amps, and 21 Inches per minute at 12,000 lbs. with 100 amps. It also features a manual override in the case of power loss. The system has a lift capacity of 12,000 lbs. and a retracted bracket height of 44.8", an extended bracket height of 69.1", and a travel/lift of 24". Additionally, the 12-volt motor can lift 20"/minute with a 10x10 footplate, 4" outer tube, and a drop leg with heavy-duty base offering 13.50" of additional adjustment.

  • Fits a variety of applications for OEM and Aftermarket Industrial, Horse & Livestock, and RV Applications
  • Wireless pluh & Play remote control DC hoists with a 3-pin connector.
  • Secure, two-way digital transmissions deliver reliable control from up to 90 feet away
  • Easy to install – Mounts without welding and requires no hydraulic oil, hoses, or pumps
  • Fully Powered – 12,000 lbs. capacity per leg with Proprietary high-speed system
  • 24” of travel
  • Approximate Travel Speed and Current Draw
  • 31 Inches per minute at no load, 15 amps
  • 30 Inches per minute at 4,000 lbs., 40 amps
  • 26 Inches per minute at 8,000 lbs., 65 amps
  • 21 Inches per minute at 12,000 lbs., 100 amps
  • Manual override in case of power loss

Specifications:

  • Lift Capacity: 12,000 lbs.

  • Retracted Bracket Height: 44.8"

  • Extended Bracket Height: 69.1"

  • Travel/Lift: 24"

  • 12 Volt Motor - Lifts 20"/minute

  • Drop Leg w/ heavy-duty base (Drop Leg offers 13.50" of additional adjustment)

  • 10x10 footplate

  • 4" Outer Tube

$1,699 99 $1,865.46 9% OFF

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$1,865.46 $1,699 99

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

  • Brand: Bulldog
  • Model: 185402 500527
  • Includes: 12K High Speed Jacks + Wireless Remote

Specification
Jack Style Direct Weld HD
Finish Black
Static Capacity 12000
Lift Capacity 12000
Electric Lift Capacity 12000
Lift Style Electric
Travel 24"
Retracted 44.8"
Extended 69.1"
Tubing Width 4"
Leg Fixed Leg
Swivel No
Foot Footplate
Jack Shape Square
Description Facts Velocity Series™ High Speed Jack (less remote)

Be the first to ask a question.

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

Effortlessly Lift Your Trailer with Bulldog's High Speed Powered Electric Jack Stand

The Bulldog Velocity Series High Speed Jack is a high-speed system, equipped with a wireless remote control, allowing for a lift capacity of up to 12,000 lbs. per leg with secure, two-way digital transmission for control up to 90 feet away. Installation is easy; mounting is not required, nor is hydraulic oil, hoses, or pumps. This system offers 24” of travel with an approximate travel speed and current draw of 31 Inches per minute with no load and 15 amps, 30 Inches per minute at 4,000 lbs. with 40 amps, 26 Inches per minute at 8,000 lbs. with 65 amps, and 21 Inches per minute at 12,000 lbs. with 100 amps. It also features a manual override in the case of power loss. The system has a lift capacity of 12,000 lbs. and a retracted bracket height of 44.8", an extended bracket height of 69.1", and a travel/lift of 24". Additionally, the 12-volt motor can lift 20"/minute with a 10x10 footplate, 4" outer tube, and a drop leg with heavy-duty base offering 13.50" of additional adjustment.

  • Fits a variety of applications for OEM and Aftermarket Industrial, Horse & Livestock, and RV Applications
  • Wireless pluh & Play remote control DC hoists with a 3-pin connector.
  • Secure, two-way digital transmissions deliver reliable control from up to 90 feet away
  • Easy to install – Mounts without welding and requires no hydraulic oil, hoses, or pumps
  • Fully Powered – 12,000 lbs. capacity per leg with Proprietary high-speed system
  • 24” of travel
  • Approximate Travel Speed and Current Draw
  • 31 Inches per minute at no load, 15 amps
  • 30 Inches per minute at 4,000 lbs., 40 amps
  • 26 Inches per minute at 8,000 lbs., 65 amps
  • 21 Inches per minute at 12,000 lbs., 100 amps
  • Manual override in case of power loss

Specifications:

  • Lift Capacity: 12,000 lbs.

  • Retracted Bracket Height: 44.8"

  • Extended Bracket Height: 69.1"

  • Travel/Lift: 24"

  • 12 Volt Motor - Lifts 20"/minute

  • Drop Leg w/ heavy-duty base (Drop Leg offers 13.50" of additional adjustment)

  • 10x10 footplate

  • 4" Outer Tube
