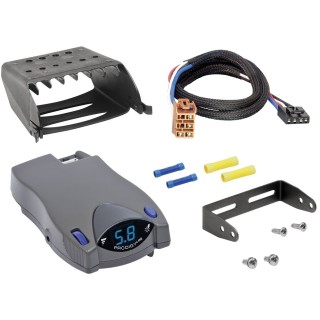

Clam Shell Trailer Brake Control for 99‑02 Chevy Silverado 1500 2500 3500 w/ Plug Play Wiring Adapter Tekonsha Prodigy P2 Eletric Trailer Brakes Module Box Controller
Model: 90885c 3025-2Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2000 - 2002 Chevrolet, Suburban 1500, w/Amber Turn Signals
1999 - 2002 Chevrolet, Silverado 2500, All Styles
2000 - 2002 Chevrolet, Suburban 2500, w/Amber Turn Signals
2001 - 2002 Chevrolet, Silverado 3500, All Styles
Brake Control Specs:
| Part Number | 90885c |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Limited lifetime warranty |
| Features: | Reverse battery protection for both vehicle and breakaway Designed to work with electric over hydraulic brake systems Numerous mounting options - including 360 degree vertical rotation Digital display depicts voltage delivery to trailer during braking No level adjustment necessary - it adjusts itself to varying terrain as you drive Great for backing into tough spots! Works proportionally in reverse with the ability to disable when not needed Produces stops that are in proportion to vehicles deceleration rate "Boost" feature gives users the ability to apply more initial trailer braking power when towing heavier trailers Continual diagnostics check for proper connection, shorted magnet conditions and much more Quick and easy disconnect feature allows user to remove and store the control when not in use Electric trailer brake control for up to 4 braking axles Limited lifetime warranty. |
| Installation Instructions |  |
2-Plug Wiring Adapter Specs:
| Part Number | 3025 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Tekonsha the most powerful manufacturer of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 99 00 01 02 1999 2000 2001 2002
$149 99 $237.81 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$237.81 $149 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $37.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 90885c 3025-2
- Includes: Prodigy P2 Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
1999 - 2002 Chevrolet, Silverado 1500, All Styles
2000 - 2002 Chevrolet, Suburban 1500, w/Amber Turn Signals
1999 - 2002 Chevrolet, Silverado 2500, All Styles
2000 - 2002 Chevrolet, Suburban 2500, w/Amber Turn Signals
2001 - 2002 Chevrolet, Silverado 3500, All Styles
Brake Control Specs:
| Part Number | 90885c |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Limited lifetime warranty |
| Features: | Reverse battery protection for both vehicle and breakaway Designed to work with electric over hydraulic brake systems Numerous mounting options - including 360 degree vertical rotation Digital display depicts voltage delivery to trailer during braking No level adjustment necessary - it adjusts itself to varying terrain as you drive Great for backing into tough spots! Works proportionally in reverse with the ability to disable when not needed Produces stops that are in proportion to vehicles deceleration rate "Boost" feature gives users the ability to apply more initial trailer braking power when towing heavier trailers Continual diagnostics check for proper connection, shorted magnet conditions and much more Quick and easy disconnect feature allows user to remove and store the control when not in use Electric trailer brake control for up to 4 braking axles Limited lifetime warranty. |
| Installation Instructions | |
2-Plug Wiring Adapter Specs:
| Part Number | 3025 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Tekonsha the most powerful manufacturer of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 99 00 01 02 1999 2000 2001 2002
Get Expert Help
Clam Shell Trailer Brake Control for 99-02 Chevy Silverado 1500 2500 3500 w/ Plug Play Wiring Adapter Tekonsha Prodigy P2 Eletric Trailer Brakes Module Box Controller Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302500
Tools Required:
- Circuit Tester
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Junction Box
- Locate the vehicle’s black Electric Junction Box:
- Inside the vehicle, underneath the dashboard, to the left of the steering column, just above the carpet.
- Remove the junction box cover to expose the connection points.
- Find the electric trailer brake connection point:
- Located in the top row, second slot from the left.
Step 2: Plug in the Brake Control Adapter
- Plug the brake control adapter into the mating connection point in the Electric Junction Box.
- Use a circuit tester to verify that the adapter has battery (+) power supplied.
Step 3: Install Additional Wiring if Power Is Not Supplied
If power is not present at the Electric Junction Box, follow these steps:
A. Vehicle Brake Control Feed Wire (Blue):
- Open the vehicle’s hood and locate the black Electrical Center Box on the driver’s side.
- Remove the lid and cover of the Electrical Center Box.
- Locate the blue brake control feed wire. This may require temporarily removing the vehicle’s support brace.
B. Vehicle Battery (+) Power Supply Wire (Red):
- In the same location, find the red battery (+) power supply wire.
- Attach and route the power wire as specified in the brake control manufacturer’s instructions.
- Install an in-line fuse or circuit breaker to protect the circuit.
Step 4: Connect the Brake Controller
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions for wiring, mounting, and securing the brake controller.
Warnings:
- Circuit Overload:
- Do NOT exceed the lower of:
- Manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- Do NOT exceed the lower of:
- Overloading circuits may cause fires or electrical damage.
- Always follow the vehicle owner’s manual and brake control installation instructions.
Wiring Overview:
- Brake Control Feed (Blue): Sends brake signal to trailer brakes.
- Battery Power Supply (Red): Provides fused power to the brake controller.
- Ground: Grounds the controller to the vehicle.
- Stop Lamp Switch (Input): Signals braking input to the brake controller.
Final Notes:
- Verify all connections are secure and wires are properly routed away from sharp edges or heat sources.
- Use a circuit tester or connect a trailer to confirm proper operation.
- Periodically inspect the wiring system for damage or loose connections.
End of Instructions
Installation and Operation Instructions for Prodigy P2 Electronic Brake Control
Part Numbers:
- N90885
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Proportional braking with inertial sensing for smooth and effective trailer braking.
Tools Required:
- Drill with 1/8" bit.
- Screwdriver.
- Wire crimp tool.
- Wire stripper.
- Circuit tester.
Wiring Access Location:
Not specified.
Safety Notes:
- Keep the control away from RF-generating devices, such as cell phones, within 12 inches.
- The unit supports proportional braking even in reverse.
- Always adhere to the Gross Combined Weight Rating (GCWR) recommended by the vehicle manufacturer.
- Warm trailer brakes before setting power for more accurate adjustments.
- Inspect brakes and connections regularly for safety and performance.
Hardware List:
- Brake control unit.
- Mounting bracket.
- Screws for mounting.
Step-by-Step Instructions:
Mounting the Brake Control:
- Choose a Mounting Location:
- Install on a solid, flat surface.
- The front of the unit must be horizontal within ±20°.
- Attach the Mounting Bracket:
- Secure the bracket using #8 x 3/8" machine screws.
- Install the Brake Control:
- Position the brake control on the bracket and adjust for easy access.
Wiring the Brake Control:
- Black Wire: Connect to a positive 12V battery source.
- White Wire: Connect to the vehicle ground.
- Blue Wire: Connect to the trailer brake system.
- Red Wire: Connect to the cold side of the brake pedal switch.
Initial Power Setup:
- Connect the trailer to the tow vehicle.
- Set the power knob to approximately 6.0.
- Drive on a flat surface at 25 mph and test the manual control.
- Adjust the power to prevent brake lock-up or ensure sufficient stopping force.
Boost Settings:
- Boost Levels:
- [b.1]: For light braking or minimal loads.
- [b.2]: Moderate braking for medium loads.
- [b.3]: Aggressive braking for heavy loads.
- Press the boost button repeatedly to adjust the level. The display will show the current setting.
Troubleshooting Guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| No trailer brakes. | Poor ground or disconnected wires. | Inspect and reconnect wires. |
| Brakes lock up. | Power too high. | Lower the power setting. |
| Display error. | Overload or short circuit detected. | Check all connections for faults. |
| No display or response. | Power interruption or loose connections. | Verify the black wire and connections. |
Maintenance:
- Adjust brakes after the first 200 miles and every 3,000 miles.
- Periodically inspect connections, wires, and the brake control unit.
Warranty Information:
- Limited Warranty:
- Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and overloading.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
