Class 3 Hitch For 03-24 Chevy Express GMC Savana Van w/ Tekonsha Prodigy P3 Trailer Brake Control 7-Way RV Wiring Breakaway Battery Charger Complete System Receiver 2" Tow Ball

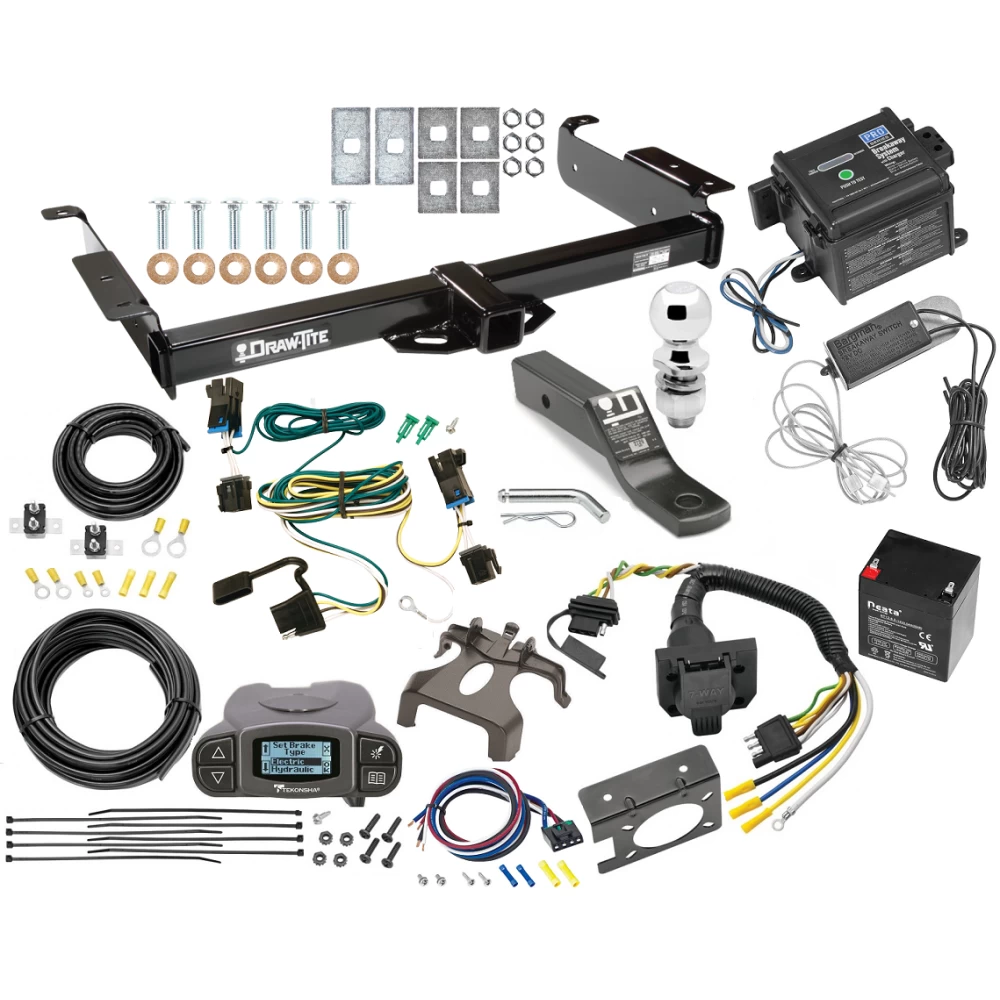

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 3
Class 3 Ball Mount and 2" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions

What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This is the best entry level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.

This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.

This Kit is recommended for trailers weighing up to 5,000 lbs, or 7,500 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.

Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles

Trailer Hitch Specs:



Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Part Number	90195
Brand	Tekonsha
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Features:	5 storable setting options for pulling different trailers or preferences of multiple drivers. A distinct, easy-to-read LCD display with multiple screen color options. Up-Front controls provide easy access to all P3 features. Easy to understand diagnostics show output current, battery, brake, and output voltage. A flashing red warning system alerts user to No Trailer Brake situations. Select Electric over Hydraulic or Electric trailer brake mode. Screen information display in English, French or Spanish. The Original Boost feature allows for different levels of customized braking. Compact, dash-hugging design.
Installation Instructions
Warranty	Lifetime

Adapter Installation + Brake Control Wiring Install

Part Numbers	85343 20506 7012A
Brand	Tekonsha
Warranty	1 Year
4-Way to 7-Way Adapter Installation
Brake Control Wiring Installation

Breakaway System Specs

Part Number	50-85-320
Brand	Pro Series
Features	Push to Test: LED’s indicate fully charged or recharge Built in battery charger charges battery when plugged into the tow vehicle Breakaway Switch with 7.5” or 48” lead wires 5 Amp/hr Battery Activates trailer brakes upon separation of trailer and tow vehicle For use on 1, 2, or 3 axle trailers equipped with electric brakes 2 or 3 mounting options Note: Make sure battery is fully charged prior to towing
Installation Instructions
Warranty	1 Year

Questions or Comments? Call 702-374-8999


Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
