Class 3 Hitch For 15-24 Ford Transit 150 250 350 w/ Tekonsha Prodigy P3 Trailer Brake Control 7-Way RV Wiring Complete System Receiver 2" Ball
$534.76
- Stock: In Stock
- Brand: Draw-Tite
- Model: 75912 23 63845 118643 85343 20506 7012A 90195

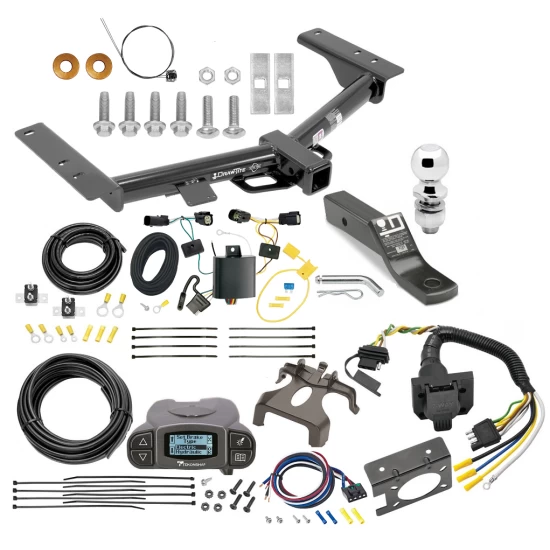

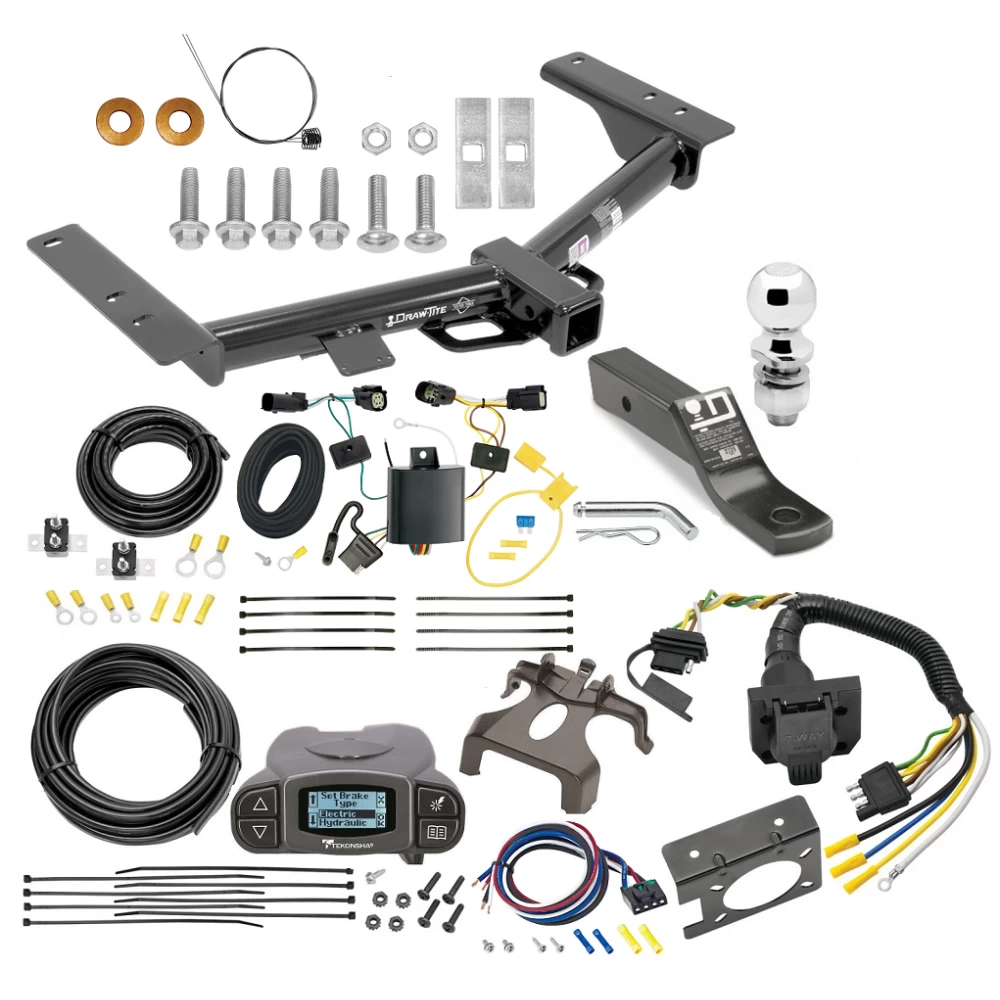

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 3
Class 3 Ball Mount and 2" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Ford Transit Van . This is the best entry level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
This Kit is recommended for trailers weighing up to 5,000 lbs, or 8,000 lbs with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
Custom Fit Trailer Hitch Class 3
Class 3 Ball Mount and 2" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Ford Transit Van . This is the best entry level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
This Kit is recommended for trailers weighing up to 5,000 lbs, or 8,000 lbs with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2015 - 2024 Ford, Transit-150, Except Cab & Chassis and the Cutaway
2015 - 2024 Ford, Transit-250, Except Cab & Chassis and the Cutaway
2015 - 2024 Ford, Transit-350, Single Rear Wheel w/148" Wheelbase, Except Cab & Chassis and the Cutaway
Trailer Hitch Specs:
| Part Number | 75912 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 8,000 lbs |
| Max Tongue Weight | 750/800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 118643 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Brake Control Unit Specs:
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: |
|
| Installation Instructions | |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
