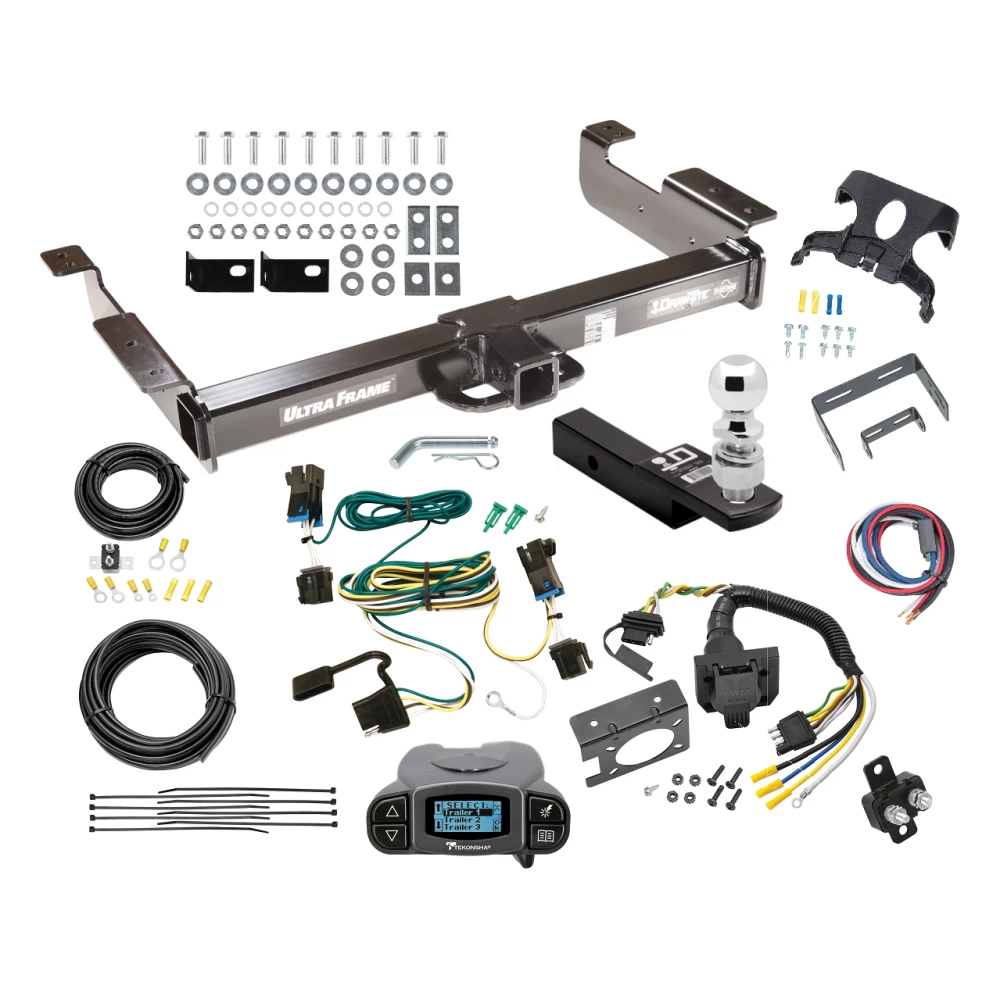

Class 5 10K Trailer Hitch Tow Package Prodigy P3 Brake Control For 03-24 Chevy Express GMC Savana 1500 2500 3500 w/ 7-Way RV Wiring 2-5/16" Ball 2" Drop Mount Ultra Frame 2" Receiver Draw-Tite Tekonsha
$667.32
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41946 85343 20506 7012a 118392 40200 63836 63240 90195
This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 41946 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | V |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,500/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 118392 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 8-1/2" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Towing Capacity in Drop Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Ball Hole Diameter | 1-1/4" |
| Rise | 3/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
