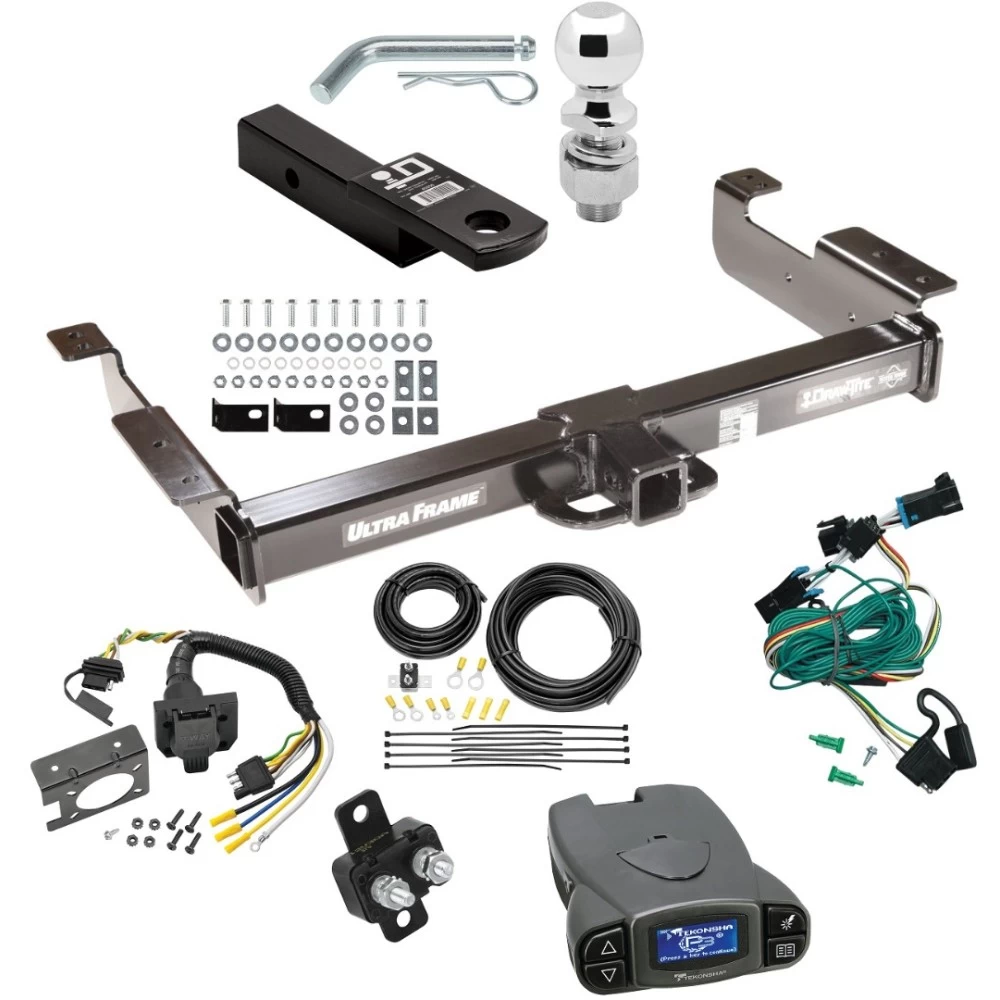

Class 5 10K Trailer Hitch Tow Package Prodigy P3 Brake Control For 96-99 Chevy Express GMC Savana 1500 2500 3500 w/ 7-Way RV Wiring 2-5/16" Ball 2" Drop Mount Ultra Frame 2" Receiver Draw-Tite Tekonsha
Model: 41946 85343 20506 7012a 118335 40200 63836 63240 901951996-1999 Chevrolet, Express 1500, All Styles
1996-1999 Chevrolet, Express 2500, All Styles
1996-1999 Chevrolet, Express 3500, All Styles
1996-1999 GMC, Savana 1500, All Styles
1996-1999 GMC, Savana 2500, All Styles
1996-1999 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 41946 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,500/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:

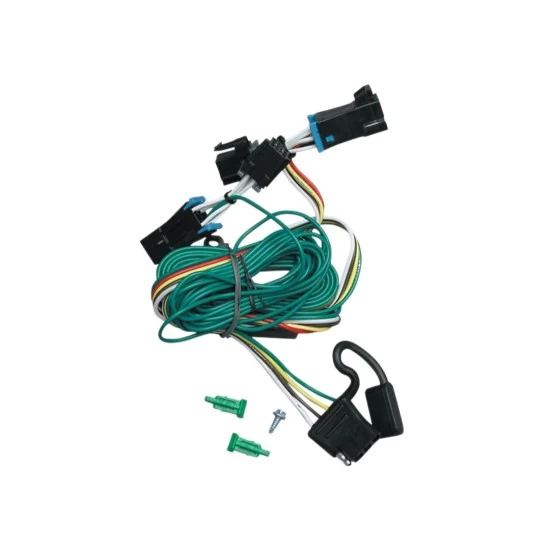

- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 118335 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| T-One Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 8-1/2" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Towing Capacity in Drop Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Ball Hole Diameter | 1-1/4" |
| Rise | 3/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
