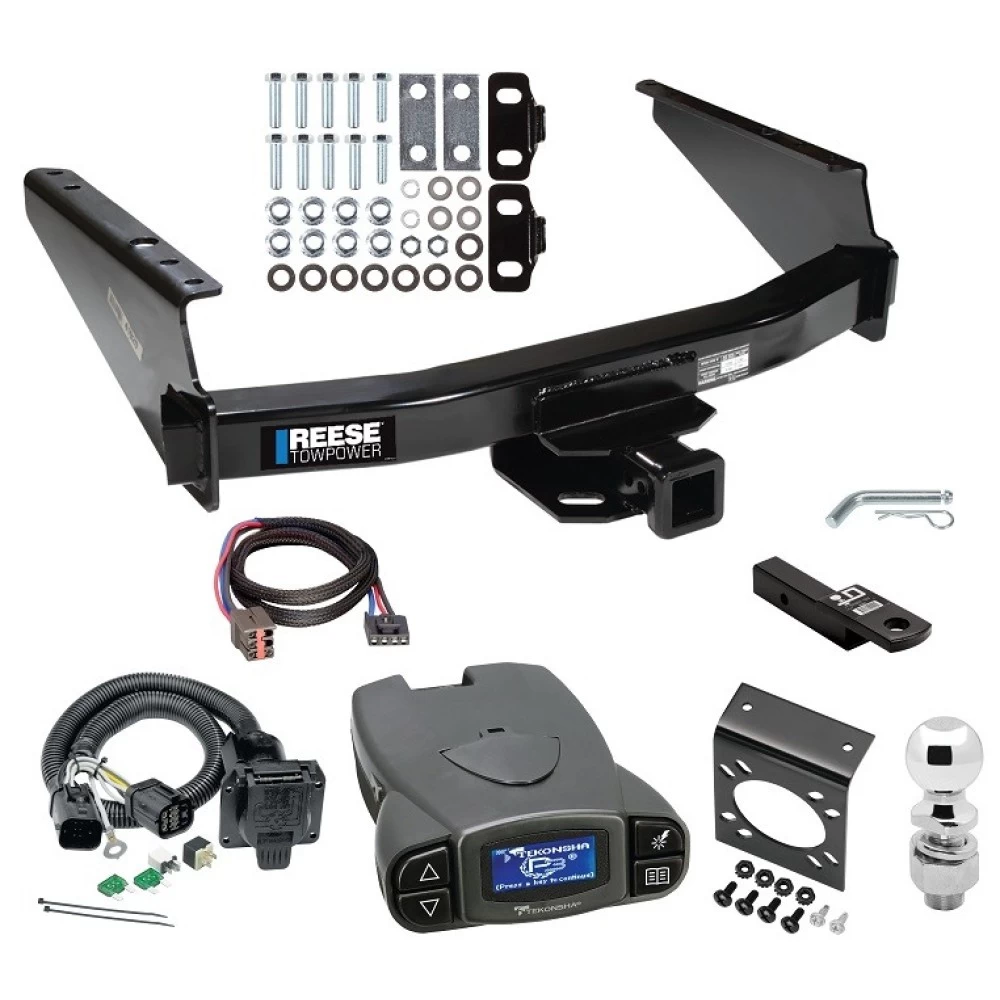

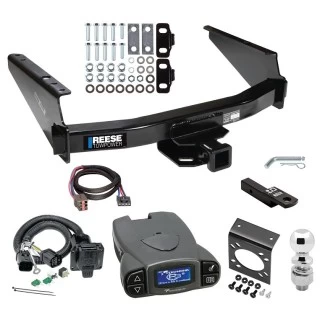

Class 5 10K Trailer Hitch Tow Package Prodigy P3 Brake Control For 97-03 Ford F-150 97-99 F-250 2004 F-150 Heritage w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha
- Stock: Pre-Order
- Brand: Reese
- Model: 96920 118242 20212 40200 63836 63240 3035 90195
1997 - 2003 Ford, F-150, Flareside
1997 - 2003 Ford, F-150, Styleside
2004 - 2004 Ford, F-150 Heritage, Flareside
2004 - 2004 Ford, F-150 Heritage, Styleside
1997 - 1999 Ford, F-250, Styleside
Trailer Hitch Specs:
| Part Number | 96920 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,000/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118242 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 8-1/2" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Towing Capacity in Drop Position | 10,000 lb Gross Towing Weight 1,000 lb Tongue Weight |
| Ball Hole Diameter | 1-1/4" |
| Rise | 3/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
2-Plug Wiring Adapter Specs:
| Part Number | 3035 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 97 98 99 00 01 02 03 04 1997 1998 1999 2000 2001 2002 2003 2004
