- Stock: In Stock
- Brand: Reese
- Model: 96948 85343 20506 7012a 20252 21330 63836 63240 90195
2011 - 2018 RAM, 1500, All Styles
2019 - 2022 RAM, 1500, (Classic)

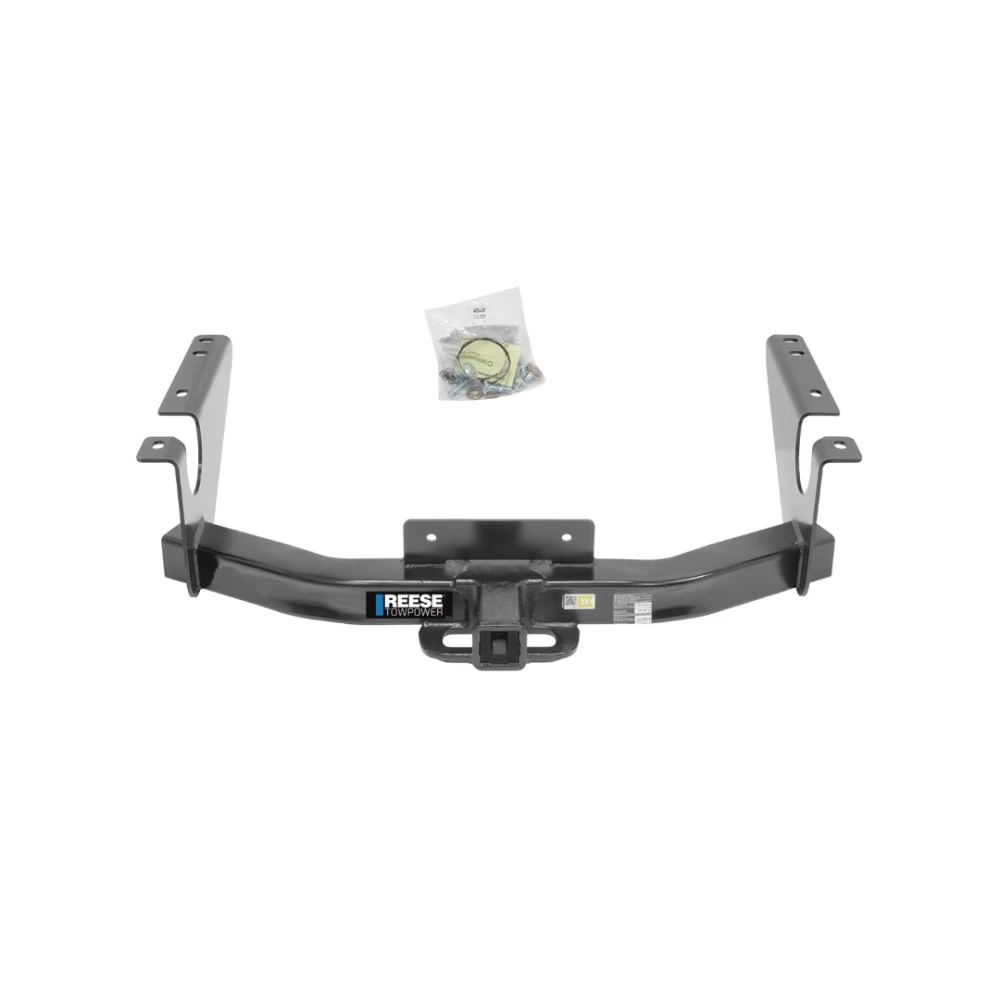

Trailer Hitch Specs:
| Part Number | 96948 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 15,000 lbs |
| Max Tongue Weight | 1,500/1,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Each Wiring Kit includes:
- Plug and Play T-One Wiring Harness Connector
- 4-Way to 7-Way adapter w/ mounting bracket and screws
- Wiring Kit for 6 to 8 Brake Control Systems
- Includes 25 ft. 12-2 Duplex Wire
- (2) 30 Amp Circuit Breakers
- Attaching Terminals and Ring Connectors
| Part Numbers | 20252 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
REESE Towpower heavy duty forged ball mounts are designed and manufactured as a solid weld free solution for heavy duty applications where high gross towing weight capacity is required.
Ball Mount Specs:
| Part Number | 21330 |
| Brand |
Reese Towpower |
| Class | 5 |
| Finish | Black powder coat |
| Towing Capacity |
16000 lbs |
| Fits | 2" Reciever |
| Drop |
2" |
| Rise | 4" |
| Ball Hole Size | 1-1/4" |
| Shank Length | 8-1/2" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 11 12 13 14 15 16 17 18 19 20 21 22 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
