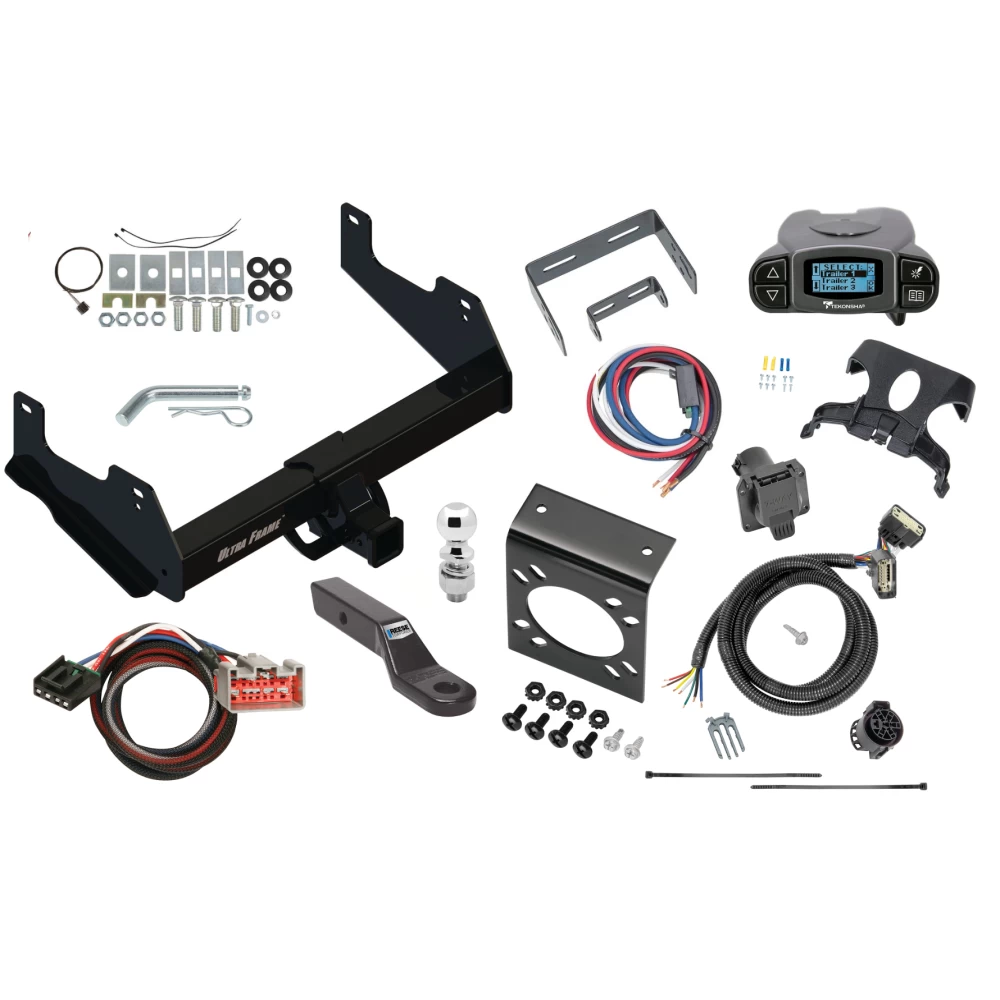

Class 5 11K Trailer Hitch Tow Package Prodigy P3 Brake Control For 15-21 Ford F-150 w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha
Model: 96954 118283 20212 21330 63836 63240 3036 90195This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
Fits The Following Vehicles
2015 - 2021 Ford, F-150, All Styles
Trailer Hitch Specs:
Part Number | 118283 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
7-Way Mount Bracket
Part Number | 20212 |
Fits | 7-Way Flat Pin Connectors |
Brand | Tow Ready |
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
Warranty | 1 Year |
REESE Towpower heavy duty forged ball mounts are designed and manufactured as a solid weld free solution for heavy duty applications where high gross towing weight capacity is required.
Ball Mount Specs:
Part Number | 21330 |
Brand |
Reese Towpower |
Class | 5 |
Finish | Black powder coat |
Towing Capacity |
16000 lbs |
Fits | 2" Reciever |
Drop |
2" |
Rise | 4" |
Ball Hole Size | 1-1/4" |
Shank Length | 8-1/2" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63836 |
Brand | Draw-Tite |
Size | 2-5/16" x 1-1/4" x 2-3/4" |
Towing Capacity | 14,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 450 ft. lbs |
Ball Hole Diameter | 1-1/4" |
Warranty | Lifetime |

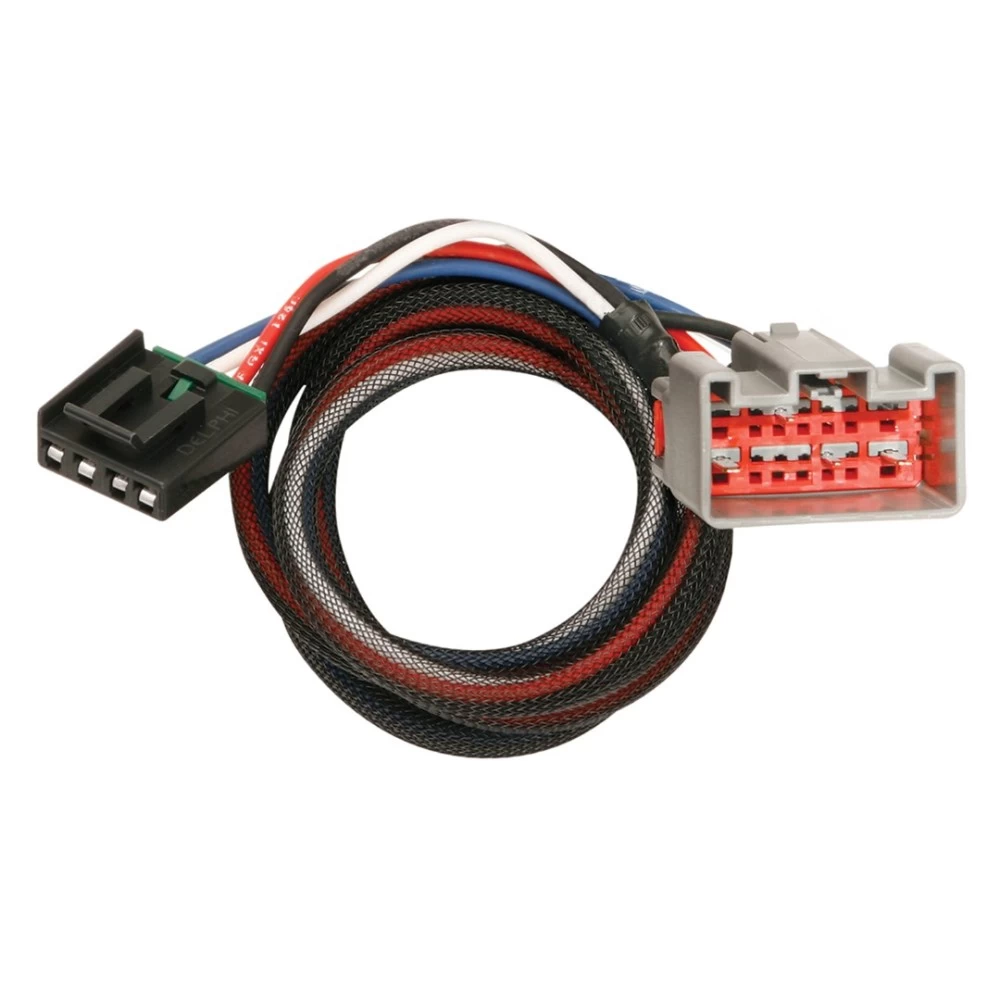

2-Plug Wiring Adapter Specs:
Part Number | 3036 |
Brand | Tekonsha |
Warranty | 1 Year |
Installation Instructions | ![]() |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
Part Number | 90195 |
Brand | Tekonsha |
Type | Proportional |
Axles | 1 to 4 axle trailers |
Warranty | Lifetime |
Installation Instructions | ![]() |
$610 93 $970.04 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$970.04 $610 93
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 96954 118283 20212 21330 63836 63240 3036 90195
- Includes: Class 5 Trailer Tow Hitch, Tow Custom Harness, Trailer Brake Controller Custom Harness, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles, Mounting Bracket, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Year Range | Make | Model | Style |
---|
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 11,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 14,000 lbs. |
Hitch Class | V |
Material | Steel |
Maximum Tongue Weight | 1,100 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 1,400 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
