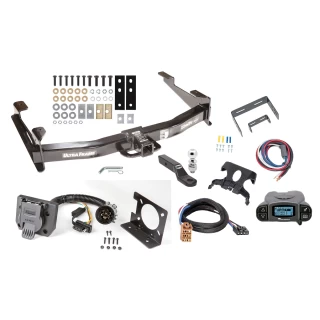

Class 5 13K Trailer Hitch Tow Package Prodigy P3 Brake Control For 01-02 Chevy Silverado GMC Sierra 2500 HD 3500 w/ 7-Way RV Wiring 2-5/16" Ball 2" Drop Mount Ultra Frame 2" Receiver Draw-Tite Tekonsha
-320x320.jpg "41944 74682 21330 63836 63240 3025 90195 Draw-Tite Class 5 13K Trailer Hitch Tow Package Prodigy P3 Brake Control 01-02 Chevy Silverado GMC Sierra 2500 HD 3500 7-Way RV Wiring 2-5/16\" Ball 2\" Drop Mount Ultra Frame 2\" Receiver Tekonsha 01 0")
-320x320.jpg "41944 74682 21330 63836 63240 3025 90195 Draw-Tite Class 5 13K Trailer Hitch Tow Package Prodigy P3 Brake Control 01-02 Chevy Silverado GMC Sierra 2500 HD 3500 7-Way RV Wiring 2-5/16\" Ball 2\" Drop Mount Ultra Frame 2\" Receiver Tekonsha 01 0")
-60x60.jpg "41944 74682 21330 63836 63240 3025 90195 Draw-Tite Class 5 13K Trailer Hitch Tow Package Prodigy P3 Brake Control 01-02 Chevy Silverado GMC Sierra 2500 HD 3500 7-Way RV Wiring 2-5/16\" Ball 2\" Drop Mount Ultra Frame 2\" Receiver Tekonsha 01 0")
-60x60.jpg "41944 74682 21330 63836 63240 3025 90195 Draw-Tite Class 5 13K Trailer Hitch Tow Package Prodigy P3 Brake Control 01-02 Chevy Silverado GMC Sierra 2500 HD 3500 7-Way RV Wiring 2-5/16\" Ball 2\" Drop Mount Ultra Frame 2\" Receiver Tekonsha 01 0")
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41944 74682 21330 63836 63240 3025 90195
2001 - 2002 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2001 - 2002 GMC, Sierra 2500 HD, All Styles
2001 - 2002 GMC, Sierra 3500, All Styles

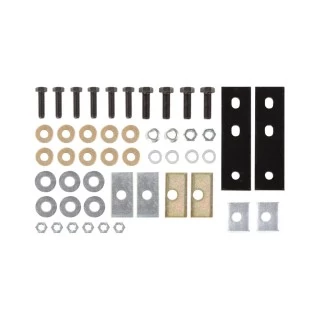

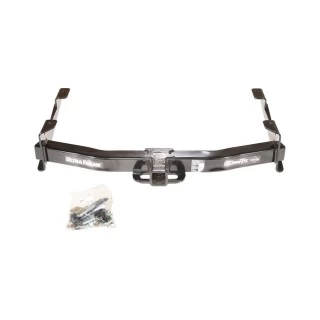

Trailer Hitch Specs:
| Part Number | 41944 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 13,000 lbs |
| Max GTW w/ weight distribution | 16,000 lbs |
| Max Tongue Weight | 1,950/1,600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Direct Plug & Play Wiring Kit
| Part Number | 74682 |
| Brand | Reese |
| Features |
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
|
| Warranty | 1 Year |
| Installation Instructions | |

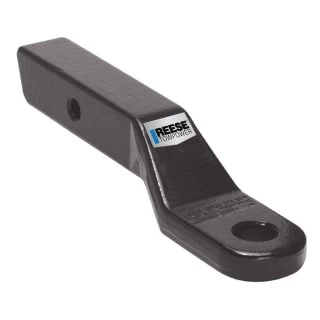

REESE Towpower heavy duty forged ball mounts are designed and manufactured as a solid weld free solution for heavy duty applications where high gross towing weight capacity is required.
Ball Mount Specs:
| Part Number | 21330 |
| Brand |
Reese Towpower |
| Class | 5 |
| Finish | Black powder coat |
| Towing Capacity |
16000 lbs |
| Fits | 2" Reciever |
| Drop |
2" |
| Rise | 4" |
| Ball Hole Size | 1-1/4" |
| Shank Length | 8-1/2" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |

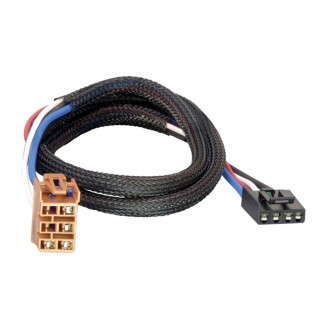

2-Plug Wiring Adapter Specs:
| Part Number | 3025 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |

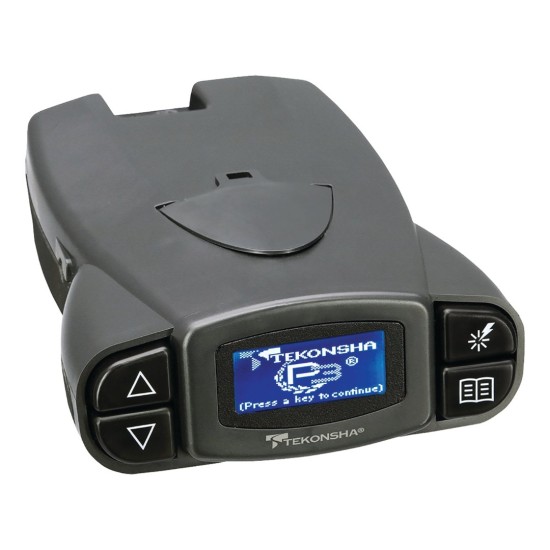

P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
