Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV

Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
Class 5 18K Trailer Hitch Package w/ Wiring For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV
$478.12
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 45519 74682 45122 63836 63243

Applies to this product only

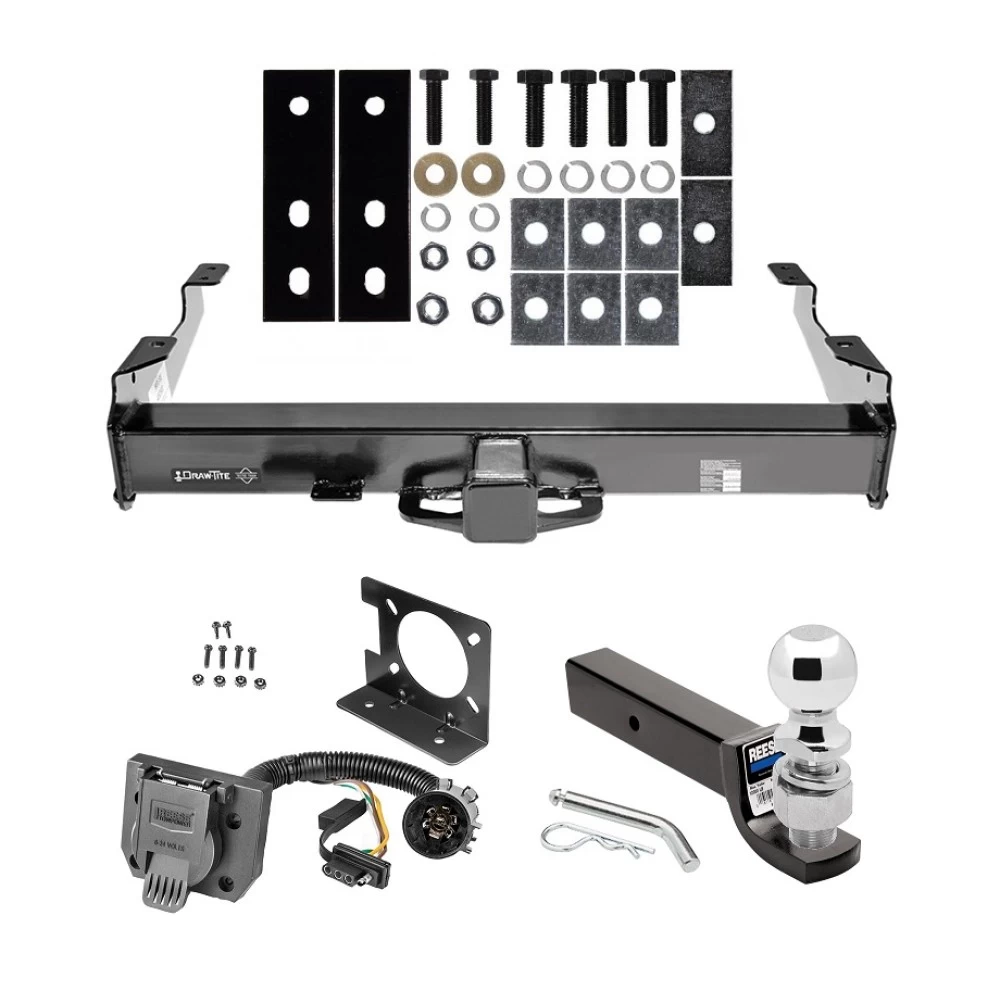

Includes Everything Pictured:
Class 5 Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Class 5 3" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions


Fits The Following Vehicles:

2001 - 2010    Chevrolet, Silverado 2500 HD, 8 ft. Bed
2001 - 2002    Chevrolet, Silverado 3500, All Styles
2003 - 2007    Chevrolet, Silverado 2500 HD, (Classic)
2003 - 2007    Chevrolet, Silverado 3500, (Classic)
2007 - 2010    Chevrolet, Silverado 3500 HD, All Styles
2001 - 2010    GMC, Sierra 2500 HD, All Styles
2001 - 2002    GMC, Sierra 3500, All Styles
2003 - 2007    GMC, Sierra 2500 HD, (Classic)
2003 - 2007    GMC, Sierra 3500, (Classic)
2007 - 2010    GMC, Sierra 3500 HD, All Styles

Trailer Hitch Specs:

Part Number 45519
Brand Draw-Tite
Finish Black Powdercoat
Class 5
Receiver size opening 2-1/2"
Max gross trailer weight 18,000 lbs
Max GTW w/ weight distribution 18,000 lbs
Max Tongue Weight 2,500/2,500 lbs
Warranty Lifetime
Installation Instructions
Direct Plug & Play Wiring Kit
Part Number 74682
Brand Reese
Features
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
  • For quick connection to 4-Flat or 7-Way trailer connectors
  • Includes mounting bracket and hardware
  • Easily adapts to existing vehicle 7-Way plug
  • Ability to tow trailers with different style trailer connectors
  • Durable plastic shell
  • Weather tight seal
  • Attractive point-of-purchase packaging
Warranty 1 Year
Installation Instructions

Ball Mount Specs:


Fits 2-1/2" x 2-1/2" Trailer Hitch Receiver
Brand Reese
Finish Black Powdercoat
Length 9-3/4" From Center of Pin Hole to Center of Ball Hole
Towing Capacity in Rise Position 14,000 lb Gross Towing Weight
1,400 lb Tongue Weight
Drop 3" From inside top of hitch opening
Towing Capacity in Drop Position 14,000 lb Gross Towing Weight
1,400 lb Tongue Weight
Rise 1-1/2" from top of inside of hitch opening
Ball Hole Diameter 1-1/4"
Warranty Limited Lifetime

Hitch Ball Specs:


Part Number 63836
Brand Draw-Tite
Size 2-5/16" x 1-1/4" x 2-3/4"
Towing Capacity 14,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 450 ft. lbs
Ball Hole Diameter 1-1/4"
Warranty Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 18,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 18,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 2,000 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 2,500 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2.5 in.
Receiver Type Square Tube
