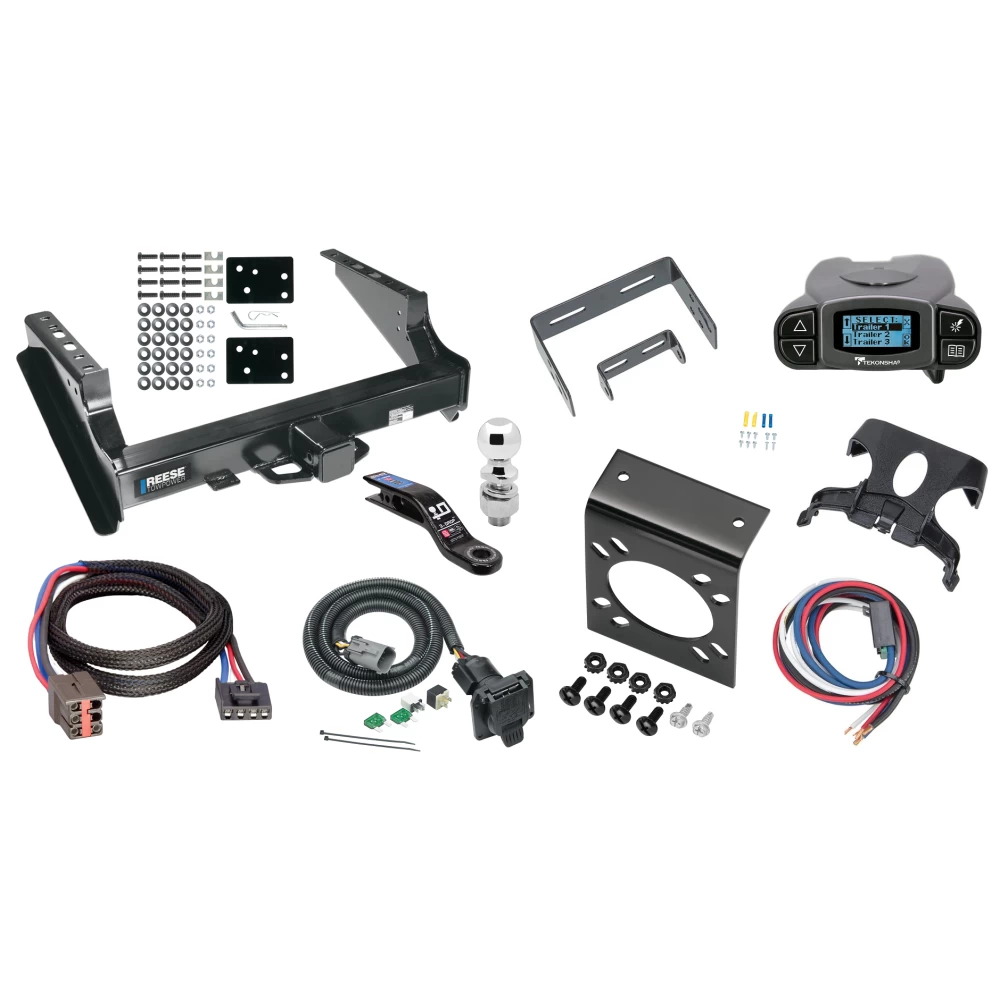

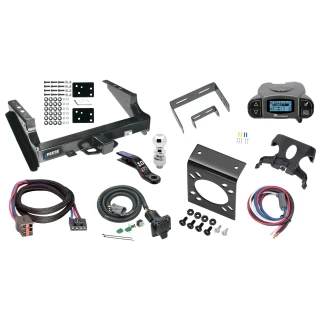

Class 5 18K Trailer Hitch Tow Package Prodigy P3 Brake Control For 99-22 Ford F-250 F-350 08-22 F-450 Super Duty w/ 7-Way RV Wiring 2" Drop Mount 2" Ball Class 4 2" Receiver Reese Tekonsha
$766.55
- Stock: In Stock
- Brand: Reese
- Model: 45708 118243 20212 45322 63840 3035 90195
This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
This Hitch Fits The Following Vehicles:
1999 - 2022 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2022 Ford, F-350 Super Duty, Except Cab & Chassis
2008 - 2022 Ford, F-450 Super Duty, Except Cab & Chassis

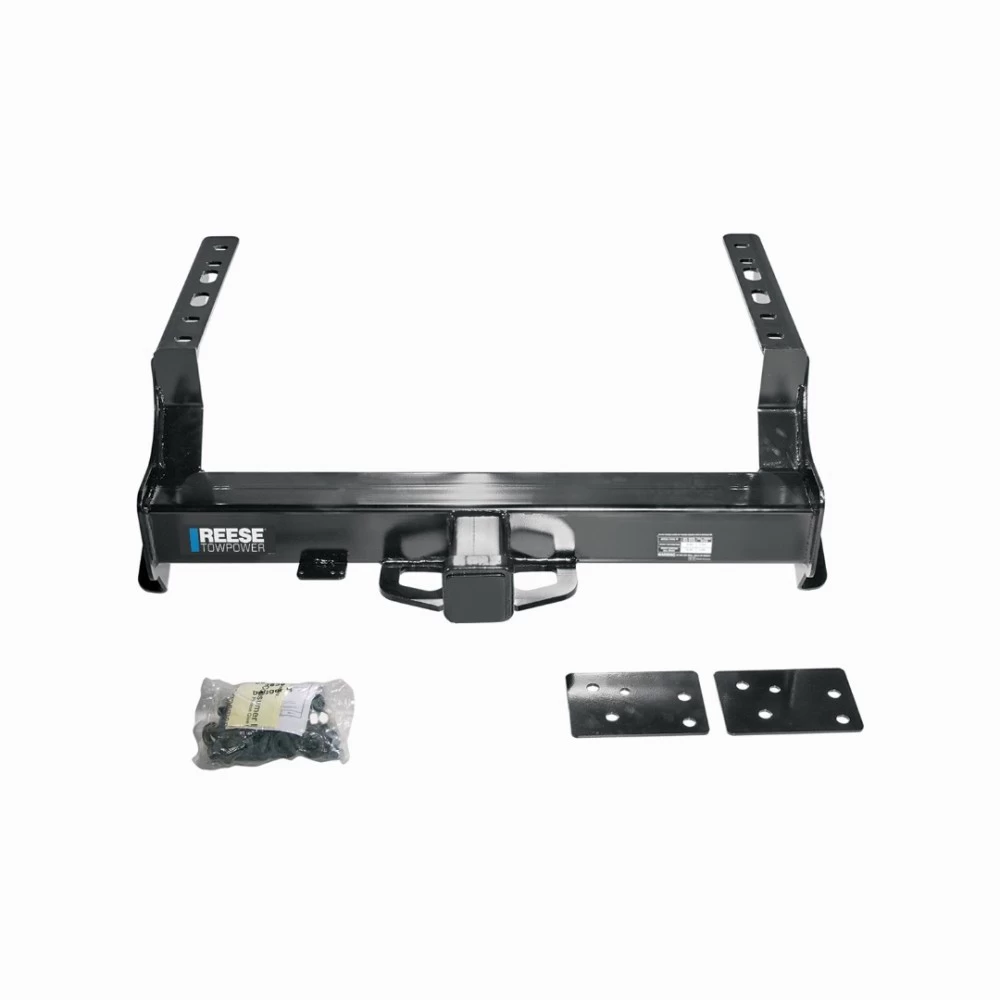

Trailer Hitch Specs:
1999 - 2022 Ford, F-250 Super Duty, Except Cab & Chassis
1999 - 2022 Ford, F-350 Super Duty, Except Cab & Chassis
2008 - 2022 Ford, F-450 Super Duty, Except Cab & Chassis
Trailer Hitch Specs:
| Part Number | 45708 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,000/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Specs
| Part Number | 118243 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |

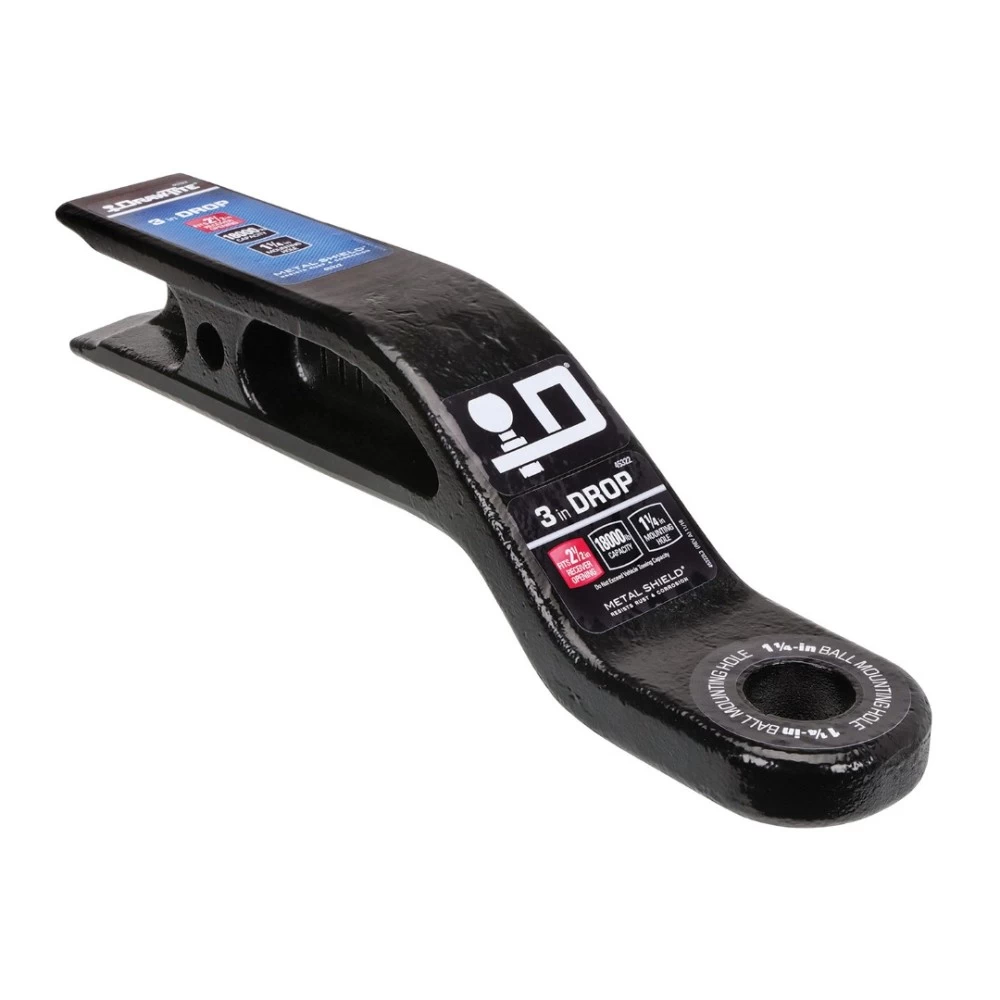

Ball Mount Specs:
| Part Number | 45322 |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 10" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Drop | 3" From inside top of hitch opening |
| Towing Capacity in Drop Position | 18,000 lb Gross Towing Weight 2,000 lb Tongue Weight |
| Rise | 1-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Pin Hole Diameter | 5/8" |
| Warranty | Limited Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip sold seperately)

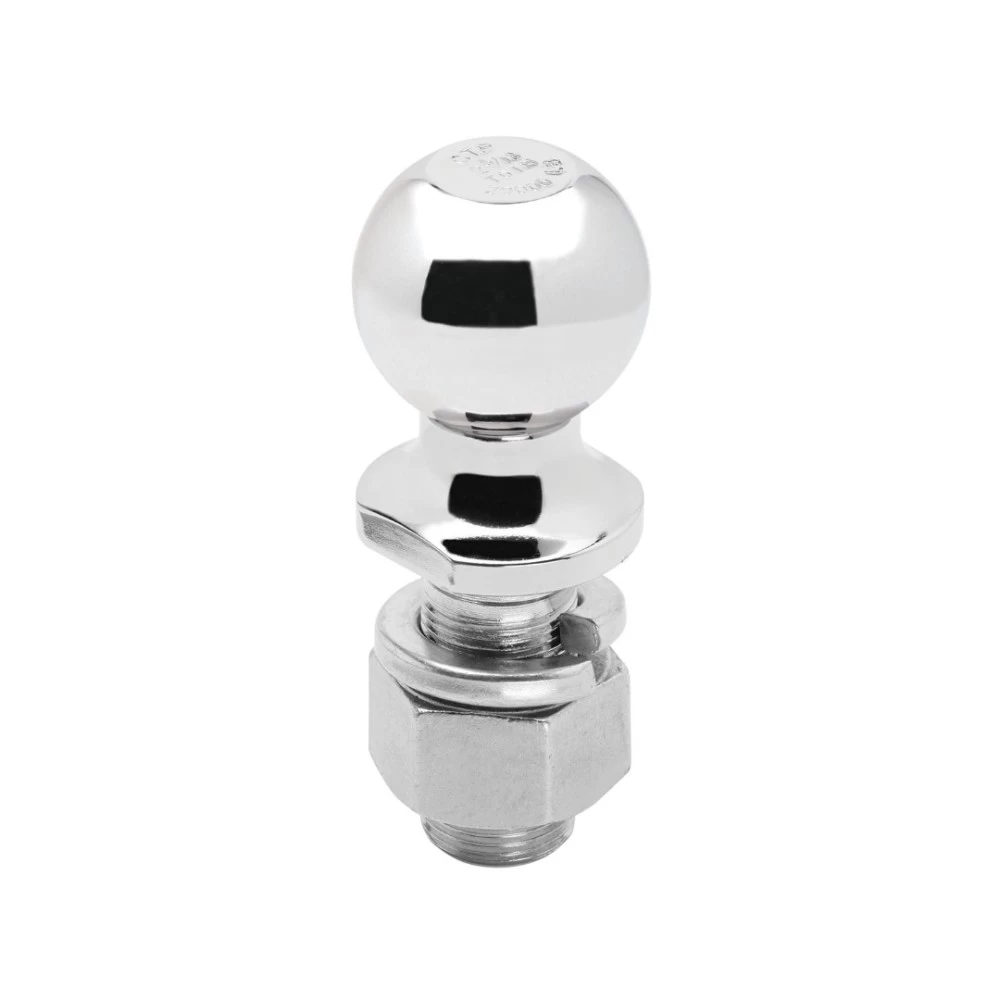

Hitch Ball Specs:
| Part Number | 63840 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 20,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
2-Plug Wiring Adapter Specs:
| Part Number | 3035 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |

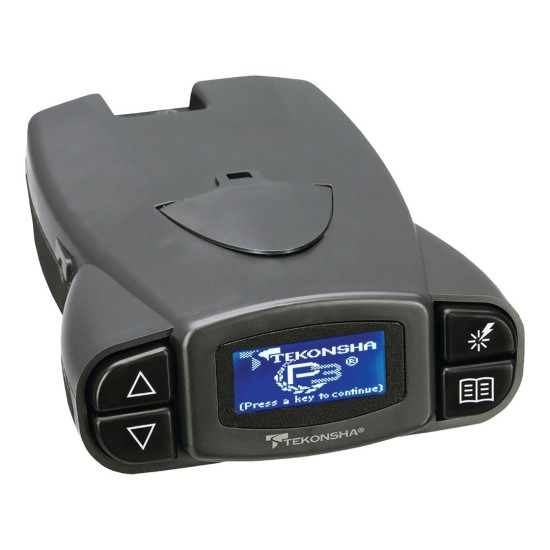

P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
