$592.08
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 45507 45122 63836 118392 85343 20506 7012A 5535 63243

Applies to this product only

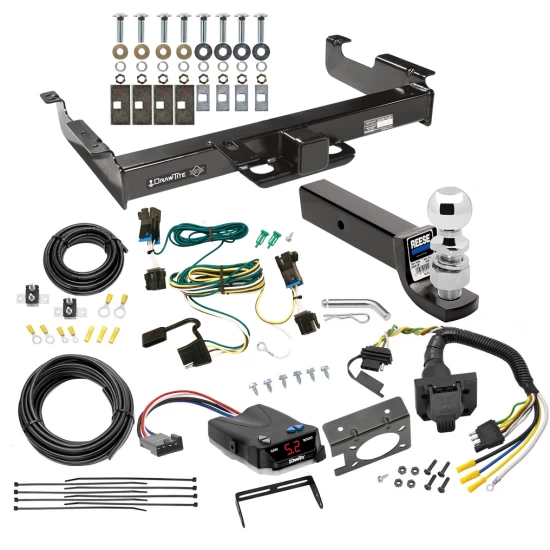

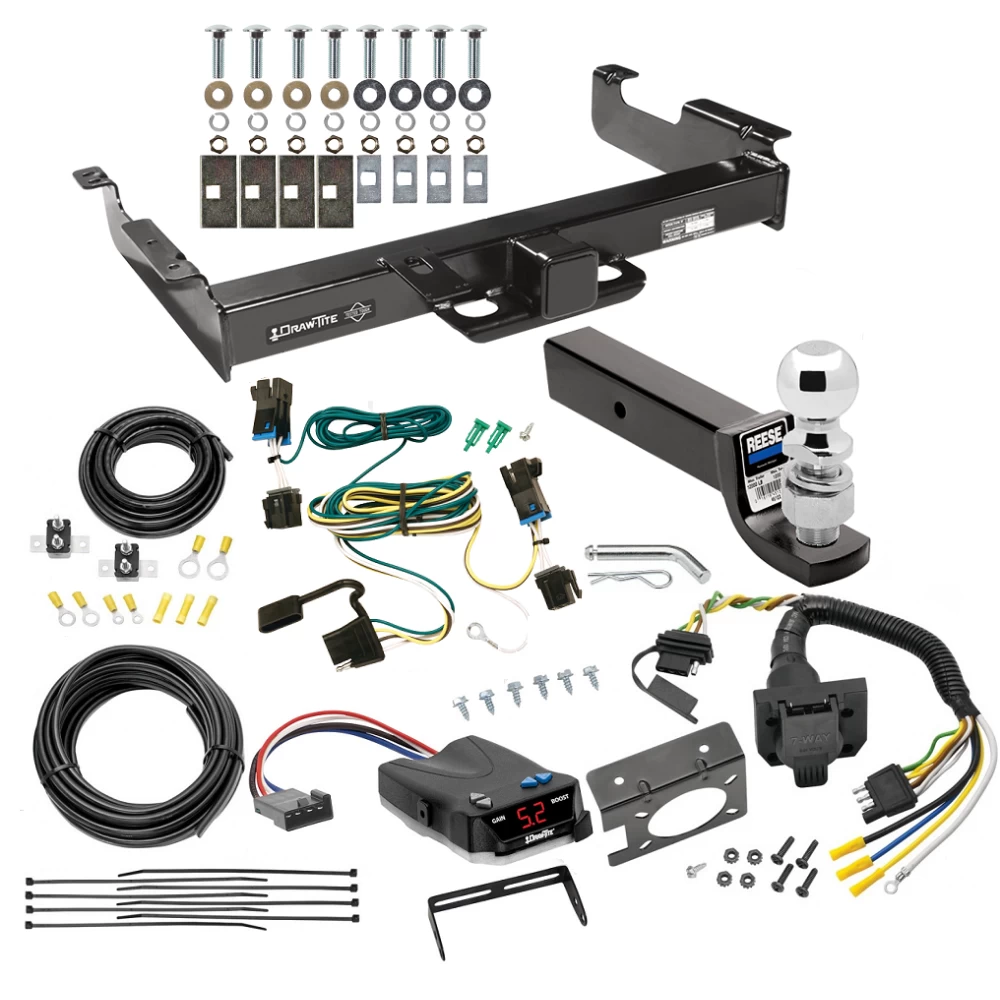

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 5

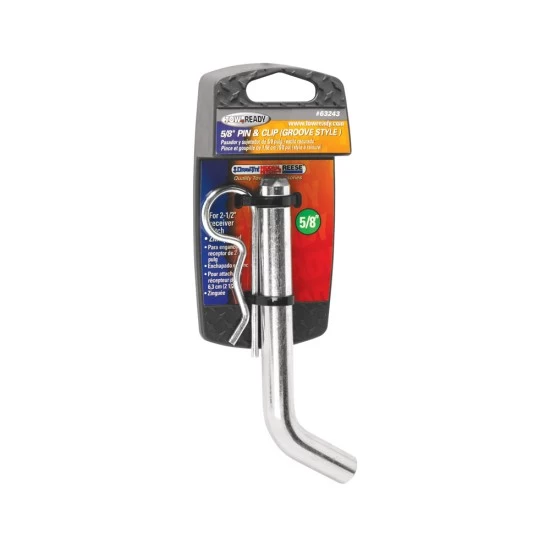

Class 5 Ball Mount and 2-5/16" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions


What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This is the heaviest duty kit we have to offer and is recommended for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need.

This Kit is recommended for trailers weighing up to 12,000 lbs, or 14,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.


Fits The Following Vehicles

2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles

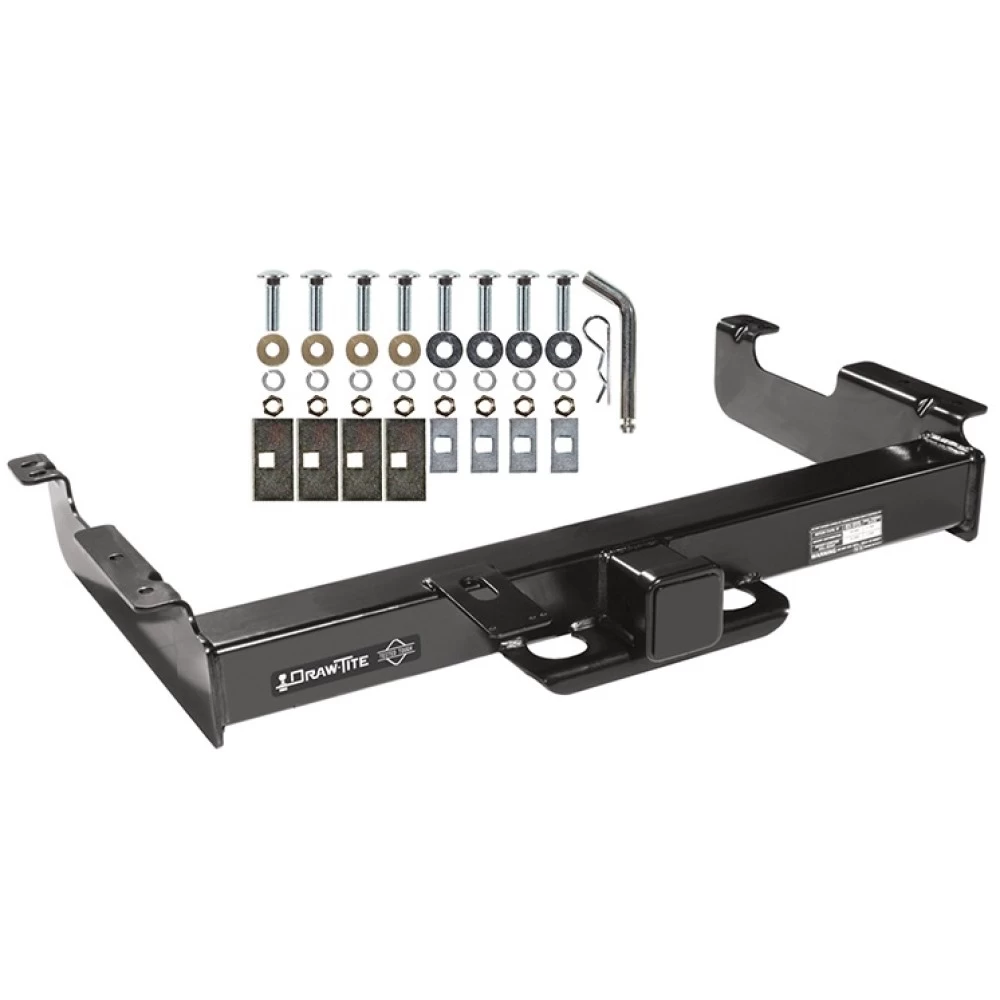

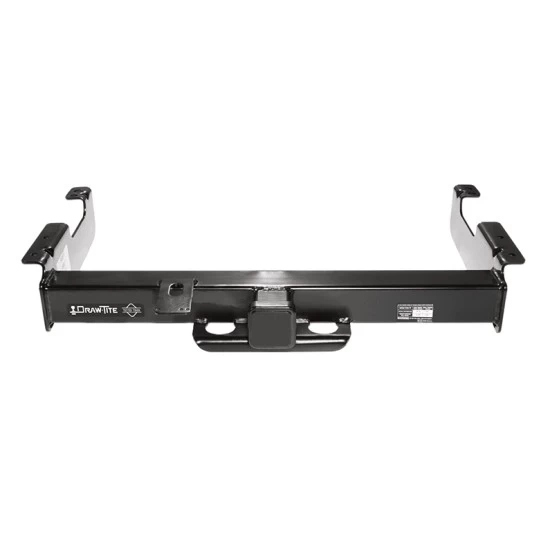

Trailer Hitch Specs:
Part Number 45507
Brand Draw-Tite
Finish Black Powdercoat
Class V
Receiver size opening 2-1/2""
Max gross trailer weight 12,000 lbs
Max GTW w/ weight distribution 14,000 lbs
Max Tongue Weight 1,200/1,700 lbs
Warranty Lifetime
Installation Instructions


T-One Wiring Kit Specs:
Part Number 118392
Brand Tekonsha
Warranty 1 Year
Installation Instructions

Ball Mount Specs:
Fits 2-1/2" x 2-1/2" Trailer Hitch Receiver
Brand Reese
Finish Black Powdercoat
Length 9-3/4" From Center of Pin Hole to Center of Ball Hole
Towing Capacity in Rise Position 14,000 lb Gross Towing Weight
1,400 lb Tongue Weight
Drop 3" From inside top of hitch opening
Towing Capacity in Drop Position 14,000 lb Gross Towing Weight
1,400 lb Tongue Weight
Rise 1-1/2" from top of inside of hitch opening
Ball Hole Diameter 1-1/4"
Warranty Limited Lifetime

Hitch Ball Specs:
Part Number 63836
Brand Draw-Tite
Size 2-5/16" x 1-1/4" x 2-3/4"
Towing Capacity 14,000 lbs. GTW
Material Chrome
(Cold forged for superior strength)
Torque torgue to 450 ft. lbs
Ball Hole Diameter 1-1/4"
Warranty Lifetime

Brake Control Specs:
Part Number 5535
Brand Draw-Tite
Type Proportional
Axles 1 to 4 axle trailers
Warranty Lifetime
Features: Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with “up-front” buttons for easy access to Output and Boost.
  • Boost feature gives the ability to apply more initial trailer braking
  • Reverse battery protection
  • No level adjustment necessary
  • Diagnostics features incorporated in LED Display
  • Plug and Play feature allows for quick and easy connection
Installation Instructions
Warranty Lifetime

Adapter Installation + Brake Control Wiring Install
Part Numbers 85343 20506 7012A
Brand Tekonsha
Warranty 1 Year
4-Way to 7-Way
Adapter Installation
Brake Control
Wiring Installation

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Specification
Attachment Location Rear
Ball Mount Included Yes
Color Black
Drilling Required No
Gross Towing Weight 12,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 14,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 1,200 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 1,700 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2.5 in.
Receiver Type Square Tube
