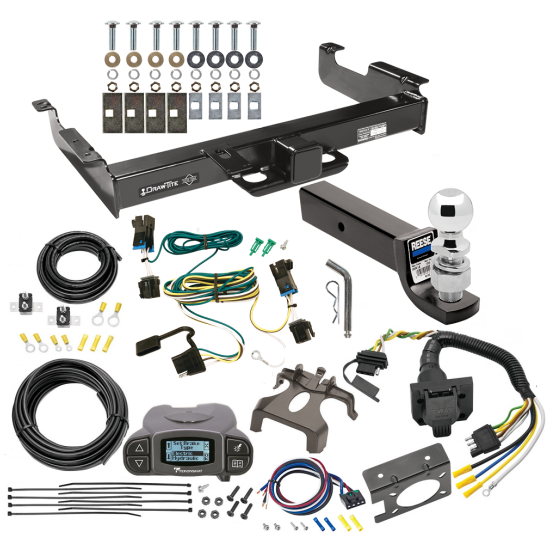

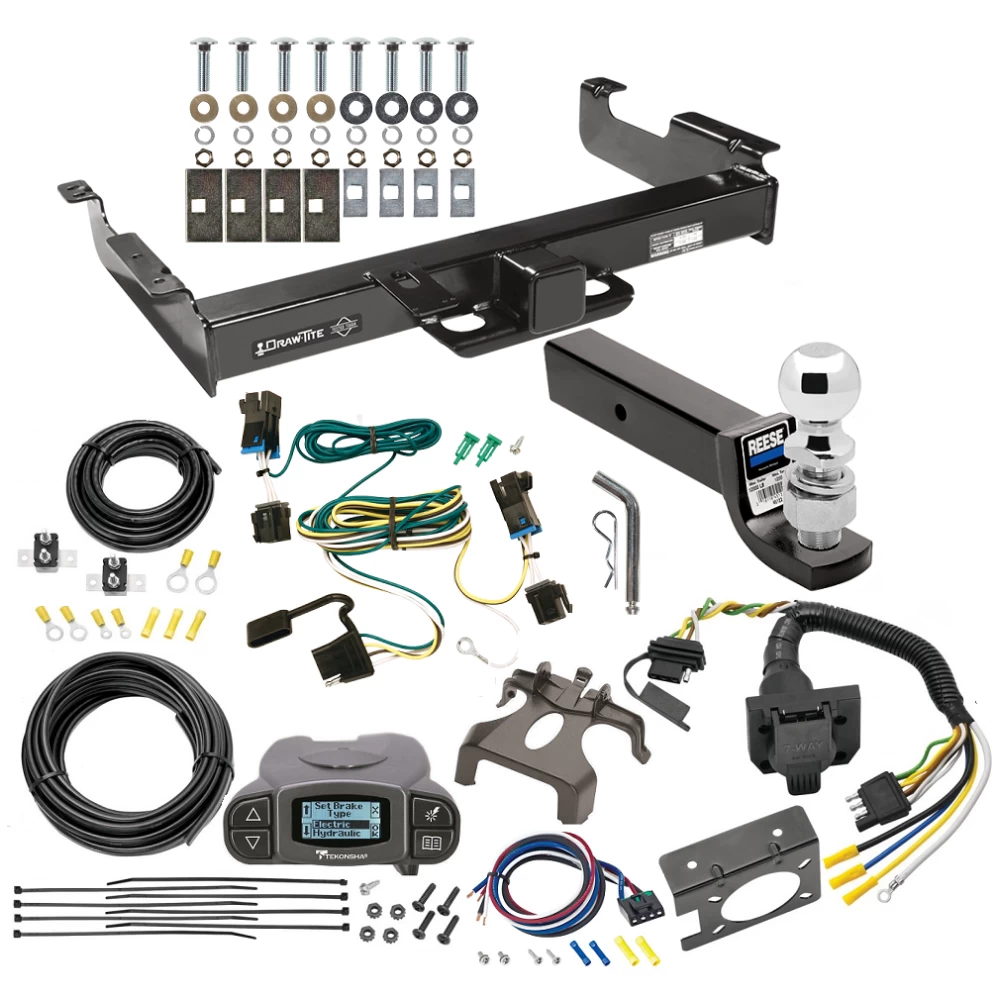

Class 5 2-1/2" Receiver Hitch For 03-24 Chevy Express GMC Savana Van w/ Tekonsha Prodigy P3 Trailer Brake Control 7-Way RV Wiring Complete System Receiver 2-5/16" Tow Ball
Model: 45507 45122 63836 118392 85343 20506 7012A 90195 63243Custom Fit Trailer Hitch Class 5
Class 5 Ball Mount and 2-5/16" Chrome Ball w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws

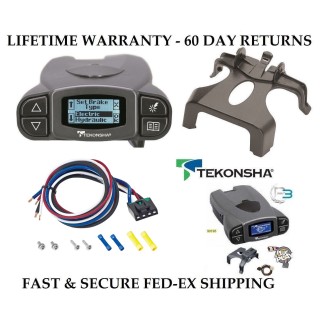

Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This is the heaviest duty kit we have to offer and is recommended for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
This Kit is recommended for trailers weighing up to 12,000 lbs, or 14,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 45507 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | V |
| Receiver size opening | 2-1/2"" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
T-One Wiring Kit Specs:
| Part Number | 118392 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Reese |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Drop | 3" From inside top of hitch opening |
| Towing Capacity in Drop Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Rise | 1-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: |
|
| Installation Instructions | |
| Warranty | Lifetime |
Adapter Installation + Brake Control Wiring Install
| Part Numbers | 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
