Class 5 2-1/2" Receiver Hitch For 03-24 Chevy Express GMC Savana Van w/ Tekonsha Prodigy P3 Trailer Brake Control 7-Way RV Wiring Breakaway Battery Charger Complete System Tri-Tow-Ball 1-7/8" 2" 2-5/16"
$661.74
- Stock: Pre-Order
- Brand: Draw-Tite
- Model: 45507 45325 118392 85343 20506 7012A 90195 50-85-320

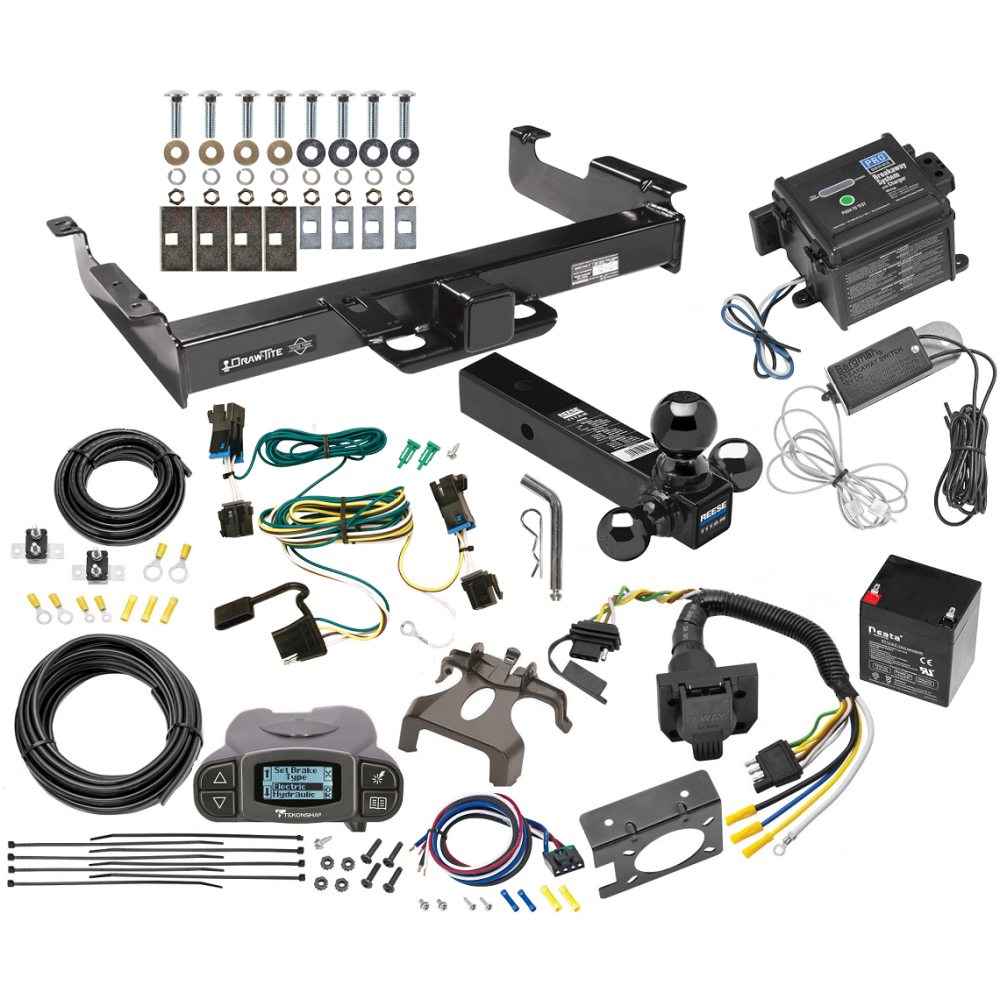

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 5
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This is the heaviest duty kit we have to offer and is recommended for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls. On top of everything we are including a triball system, no need to wonder what size ball you may need. All 3 ball sizes are included
This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.
This Kit is recommended for trailers weighing up to 12,000 lbs, or 14,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Custom Fit Trailer Hitch Class 5
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This is the heaviest duty kit we have to offer and is recommended for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls. On top of everything we are including a triball system, no need to wonder what size ball you may need. All 3 ball sizes are included
This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.
This Kit is recommended for trailers weighing up to 12,000 lbs, or 14,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 45507 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | V |
| Receiver size opening | 2-1/2"" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
T-One Wiring Kit Specs:
| Part Number | 118392 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 45325 |
| Brand | Reese |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8-3/4" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 10,000 Lb. capacity |
| 2 5/16 In. ball | 14,000 Lb. capacity |
| Warranty | Lifetime |
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: |
|
| Installation Instructions | |
| Warranty | Lifetime |
Adapter Installation + Brake Control Wiring Install
| Part Numbers | 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Breakaway System Specs
| Part Number | 50-85-320 |
| Brand | Pro Series |
| Features |
|
| Installation Instructions | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
