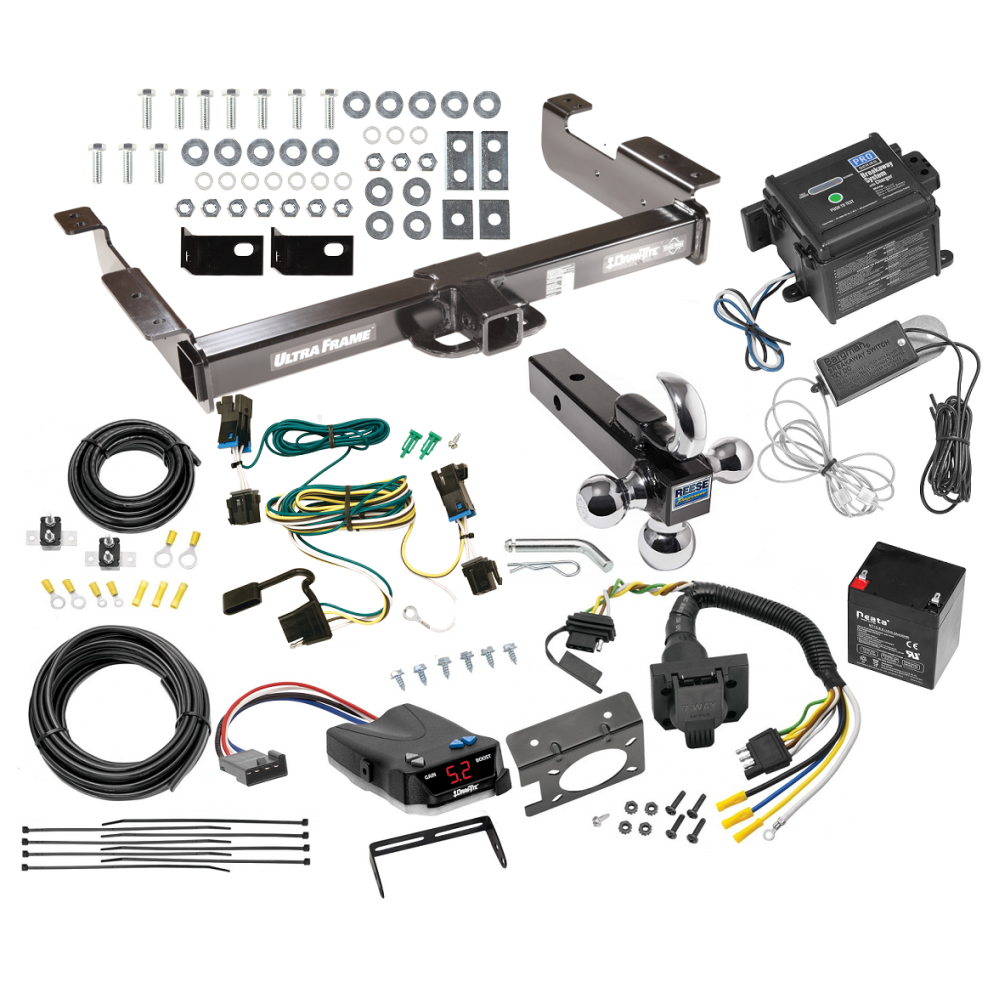

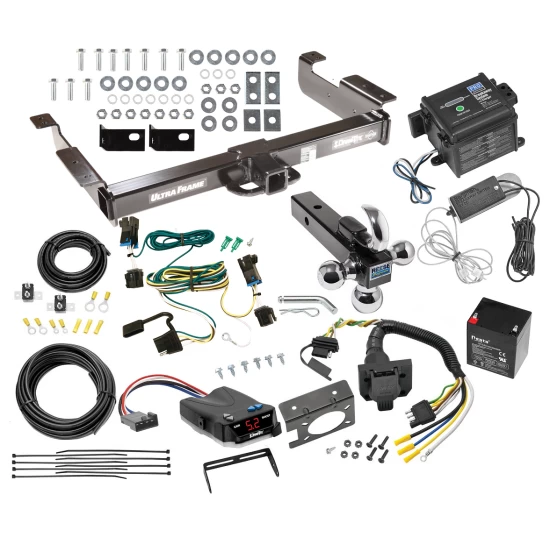

Class 5 2" Receiver Hitch For 03-24 Chevy Express GMC Savana Van w/ Draw-Tite Trailer Brake Control 7-Way RV Wiring Breakaway Battery Charger Complete System Tri-Tow-Ball 1-7/8" 2" 2-5/16"
Model: 41946 7031400 118392 85343 20506 7012A 5535 50-85-320 63240Custom Fit Trailer Hitch Class 5
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Proportional Brake Control For 1-4 Axles
Push-To-Test LED Electric Trailer Breakaway System Kit
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors

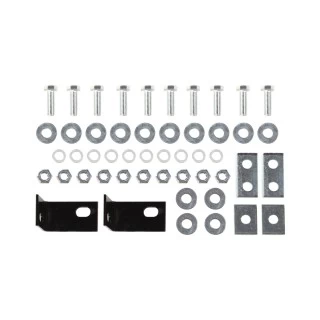

Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy Express or GMC Savana Cargo Van. This heavy duty kit is for those planning on towing a large trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. On top of everything we are including a triball system, no need to wonder what size ball you may need. All 3 ball sizes are included
This specific bundle also includes a break away kit, many states require you to have this part. Having a break away system installed is a good idea in general which is why we include it with this bundle.
This Kit is recommended for trailers weighing up to 10,000 lbs. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
Fits The Following Vehicles
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 41946 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | V |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,500/1,300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

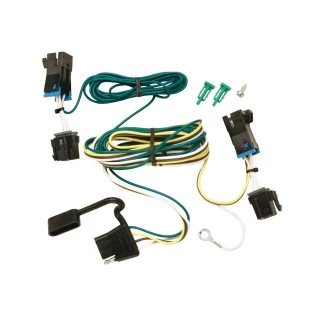

T-One Wiring Kit Specs:
| Part Number | 118392 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
| Part Number | 5535 |
| Brand | Draw-Tite |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost.
|
| Installation Instructions | |
| Warranty | Lifetime |
Adapter Installation + Brake Control Wiring Install
| Part Numbers | 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|

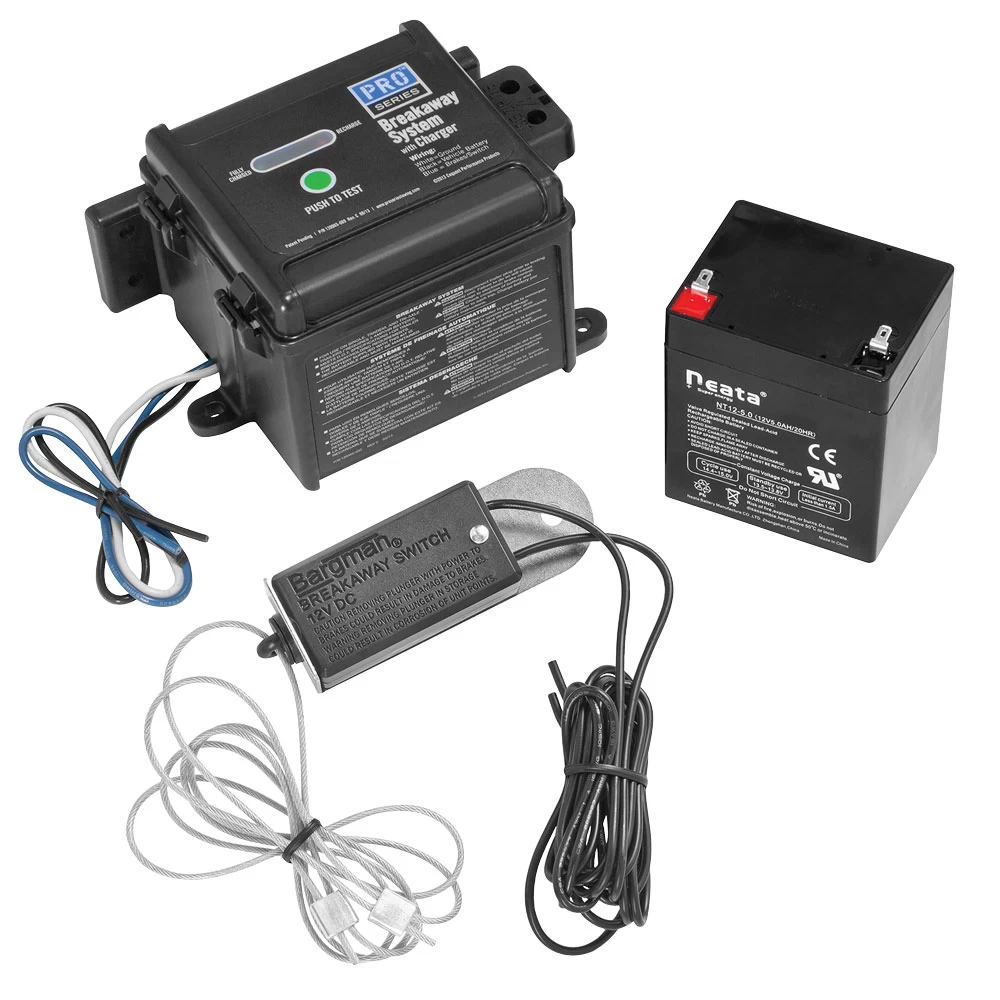

Breakaway System Specs
| Part Number | 50-85-320 |
| Brand | Pro Series |
| Features |
|
| Installation Instructions | |
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
