Class 5 2" Receiver Hitch For 88-00 Chevy GMC C/K 1500 2500 3500 8 ft. Bed Pickup w/ Prodigy P3 Trailer Brake Control 7-Way RV Wiring Complete System Tri-Tow-Ball 1-7/8" 2" 2-5/16"
$540.24
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41901 23 63845 118315 85343 20506 7012A 90195

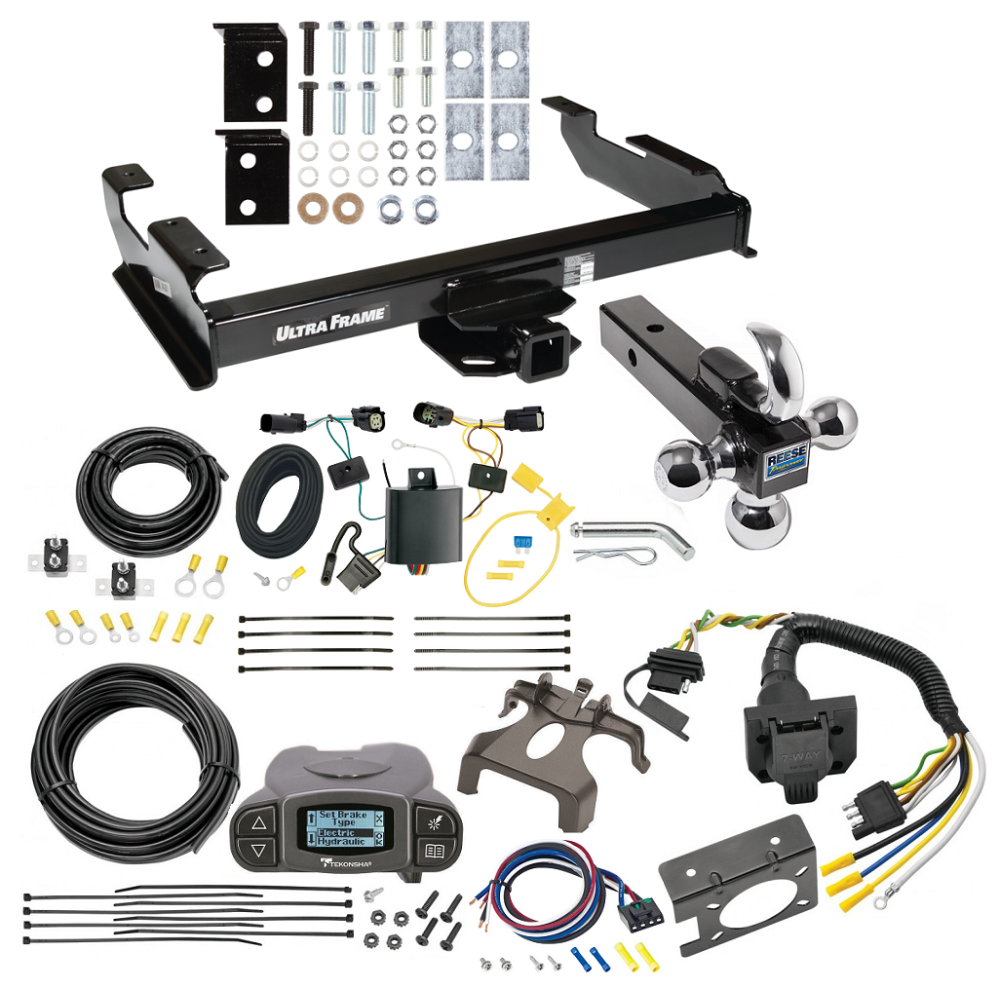

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 5
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy GMC C/K Series Pickup. This is the best heavy duty level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls. On top of everything we are including a triball system, no need to wonder what size ball you may need. All 3 ball sizes are included
This Kit is recommended for trailers weighing up to 10,000 lbs, or 13,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
This Hitch Fits The Following Vehicles:
1988 - 1999 Chevrolet, C1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, C2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 Chevrolet, C3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, K1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, K2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 Chevrolet, K3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 GMC, C1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, C2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, C3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 GMC, K1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, K2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, K3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
Custom Fit Trailer Hitch Class 5
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
Wiring Harness (Plug & Play)
4-Way to 7-Way adapter w/ mounting bracket and screws
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Wiring Kit for 4 to 8 Brake Control Systems
25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
Installation Hardware
Installation Instructions
What you are looking at is a complete tow package for your Chevy GMC C/K Series Pickup. This is the best heavy duty level kit for those planning on towing a trailer with electric brakes. This All-in-One bundle takes care of everything. No more searching and stressing out over what parts you need. This package includes the most sought after brake control on the market Tekonsha Prodigy P3. Being industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls. On top of everything we are including a triball system, no need to wonder what size ball you may need. All 3 ball sizes are included
This Kit is recommended for trailers weighing up to 10,000 lbs, or 13,000 with weight distribution. Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up.
This Hitch Fits The Following Vehicles:
1988 - 1999 Chevrolet, C1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, C2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 Chevrolet, C3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, K1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 Chevrolet, K2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 Chevrolet, K3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 GMC, C1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, C2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, C3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 1999 GMC, K1500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, K2500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
1988 - 2000 GMC, K3500, Standard or Step Bumper Except 88-91 Crew Cab, w/ 8 ft. Bed Only
Trailer Hitch Specs:
| Part Number | 41901 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 10,000 lbs |
| Max GTW w/ weight distribution | 13,000 lbs |
| Max Tongue Weight | 1,000/1,300lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
T-One Wiring Connector Specs:
| Part Number | 118315 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: |
|
| Installation Instructions | |
| Warranty | Lifetime |
Adapter Installation + Brake Control Wiring Install
| Part Numbers | 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite and Tekonsha the most powerful names in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
