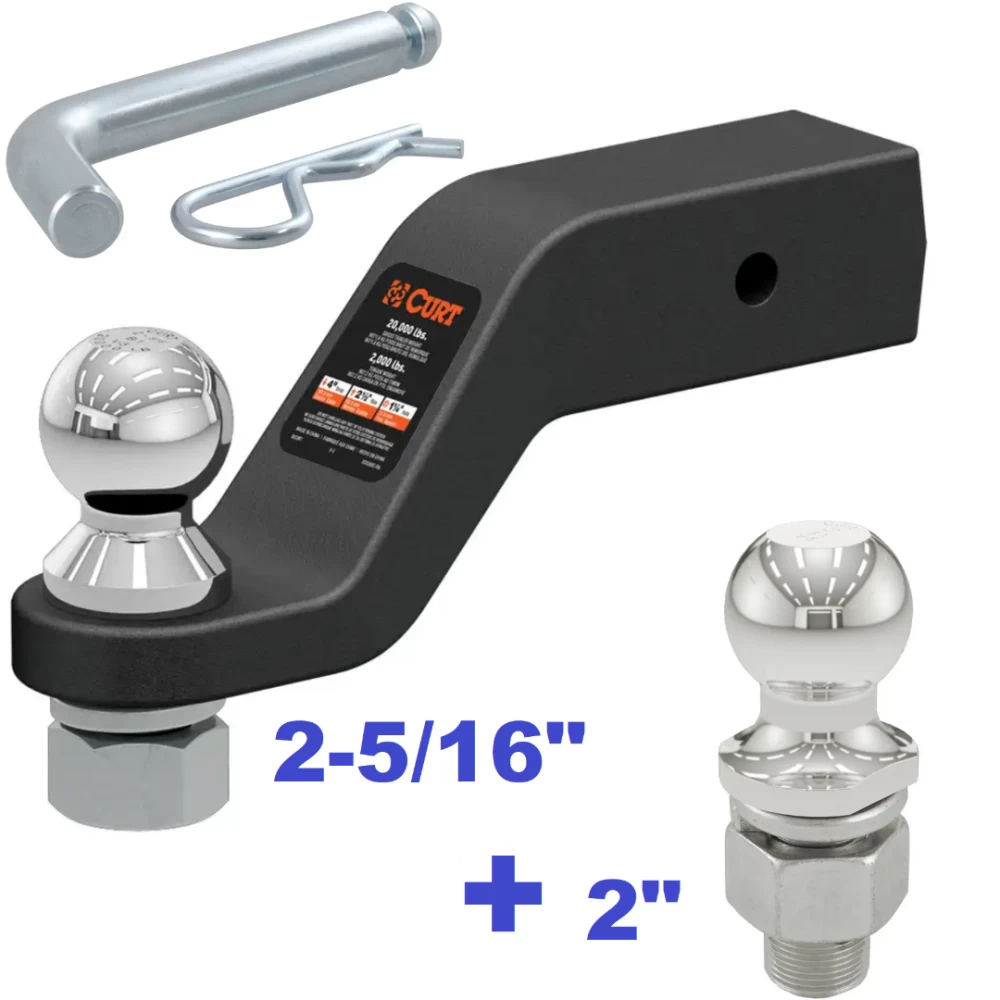

Class 5 Ball Mount 20,000 LBS Tow Kit w/ Dual 2" + 2-5/16" Balls - 2.5" Shank 4" Drop 2,000 LBS Tongue Capacity Includes Pin/Clip

Class 5 Ball Mount 20,000 LBS Tow Kit w/ Dual 2" + 2-5/16" Balls - 2.5" Shank 4" Drop 2,000 LBS Tongue Capacity Includes Pin/Clip

Part 1: Loaded Forged Ball Mount with 2-5/16" Ball (Part #45426)

This CURT forged loaded ball mount features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,000 lbs. It comes with a 2-5/16" trailer ball, making it an excellent choice for towing most heavy-duty trailers, including large boat trailers, double-axle utility trailers, deluxe campers, livestock trailers and recreational vehicle trailers used for hauling motorcycles, personal watercraft and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a drop of 4" and comes with a durable carbide black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts are made with the same superior quality we put into each of our products.

• Rated to 20,000 lbs. gross trailer weight and 2,000 lbs. tongue weight
• Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
• Factory-torqued CURT trailer ball accepts a 2-5/16" coupler
• Constructed from solid, forged steel for superior strength
• 4" drop for precise trailer leveling
• Protected by a highly durable carbide powder coat finish
• Trailer ball features a polished chrome-plated finish
• Limited lifetime warranty (one-year finish, one-year parts)

Part 2: 2" Trailer Ball (1-1/4" x 2-5/8" Shank, 10,000 lbs., Stainless) #40056

This CURT 2" trailer ball is designed for heavy-duty towing, featuring a 10,000 lbs. gross towing weight capacity. Constructed from stainless steel, it offers excellent rust resistance, ensuring long-lasting durability and reliability. The ball fits 2" couplers and features a zinc-plated hex nut and helical lock washer for secure mounting. Its fine threads provide superior holding strength, enhancing safety and performance. This ball meets all U.S. VESC V-5 specifications for towing safety. Note: The mounting platform must be at least 3/8" thick, and the hole size must not exceed 1/16" larger in diameter than the threaded shank.

• Fits 2" couplers and accepts up to 10,000 lbs. GTW
• Stainless steel construction for excellent rust resistance
• Zinc-plated hex nut and helical lock washer for secure mounting
• Features fine threads for superior holding strength
• Tested for safety to meet U.S. VESC V-5 specifications
• Limited lifetime warranty (one-year finish, one-year parts)

Part 3: 5/8" Hitch Pin with Groove (Part #21510)

When you mount a ball mount on your trailer hitch, you expect it to stay put. Whatever type of load you are hauling, having towing equipment that can work as hard as you do is a must. For all types of heavy-duty towing, CURT 5/8" hitch pins and clips pack a little extra punch. We make our 5/8" hitch pins out of solid steel and coat them in one of four finish options. All of these finishes offer excellent resistance to rust and corrosion for long-lasting, smooth operation. CURT hitch pins are also constructed with a 105-degree bend, creating a useful handle for a better grip and allowing the pin to stay securely engaged in the trailer hitch and ball mount. This particular 5/8" hitch pin features a zinc finish and comes with a groove that allows the clip to be inserted at any angle. CURT 5/8" hitch pins and clips are ready to work. They provide reliable installation for any ball mount or hitch-mounted accessory with a 2" or 2-1/2" shank, making them the perfect fit for class 3, 4, and 5 trailer hitches.

• 5/8" diameter pin fits 2" or 2-1/2" receiver tubes
• Secures ball mounts and other receiver tube inserts
• Grooved pin allows clip attachment at any angle
• Bent handle for an easier grip
• Protected by a durable zinc-plated finish
• Limited lifetime warranty (one-year finish, one-year parts)
