Class 5 Trailer Hitch w/ Brake Control For 01-10 Chevy Silverado GMC Sierra 2500 HD 8ft Bed 3500 w/ 2-5/16" Ball 3" Drop Mount 7-Way Pin Blade RV Controller
$536.97
- Stock: In Stock
- Brand: Draw-Tite
- Model: 45519 74682 45122 63836 63240 5535

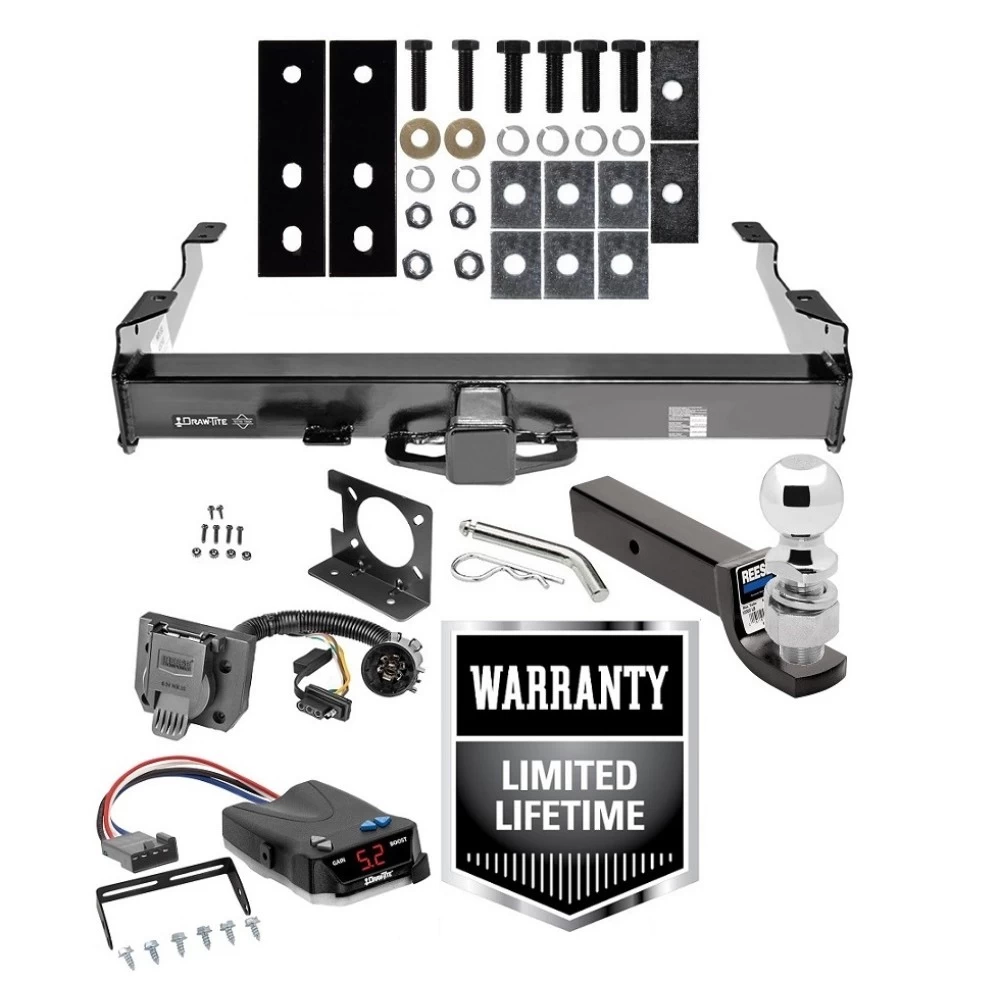

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 5
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Class 5 3" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up
Fits The Following Vehicles
2001 - 2010 Chevrolet, Silverado 2500 HD, 8 ft. Bed
2007 Chevrolet, Silverado 2500 HD, 8 ft. Bed (Classic)
2001 - 2006 Chevrolet, Silverado 3500, All Styles
2007 Chevrolet, Silverado 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2001 - 2010 GMC, Sierra 2500 HD, 8 ft. Bed
2007 GMC, Sierra 2500 HD, 8 ft. Bed (Classic)
2001 - 2006 GMC, Sierra 3500, All Styles
2007 GMC, Sierra 3500, (Classic)
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Custom Fit Trailer Hitch Class 5
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Class 5 3" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up
Fits The Following Vehicles
2001 - 2010 Chevrolet, Silverado 2500 HD, 8 ft. Bed
2007 Chevrolet, Silverado 2500 HD, 8 ft. Bed (Classic)
2001 - 2006 Chevrolet, Silverado 3500, All Styles
2007 Chevrolet, Silverado 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2001 - 2010 GMC, Sierra 2500 HD, 8 ft. Bed
2007 GMC, Sierra 2500 HD, 8 ft. Bed (Classic)
2001 - 2006 GMC, Sierra 3500, All Styles
2007 GMC, Sierra 3500, (Classic)
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 45519 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 1,800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Direct Plug & Play Wiring Kit
| Part Number | 74682 |
| Brand | Reese |
| Features |
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
|
| Warranty | 1 Year |
| Installation Instructions | |
Brake Control Specs:
| Part Number | 5535 |
| Brand | Draw-Tite |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost.
|
| Installation Instructions | |
| Warranty | Lifetime |
Ball Mount Specs:
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Reese |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Drop | 3" From inside top of hitch opening |
| Towing Capacity in Drop Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Rise | 1-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
