Class 5 Trailer Hitch w/ Brake Control For 15-19 Chevy Silverado GMC Sierra 2500 3500 HD Exc Cab & Chassis w/ Plug Play Wiring 2- 5/16" Ball 3" Drop Mount 7-Way Pin Blade RV Controller
$528.49
- Stock: In Stock
- Brand: Draw-Tite
- Model: 45511 74682 45122 63836 63240 5535 3016

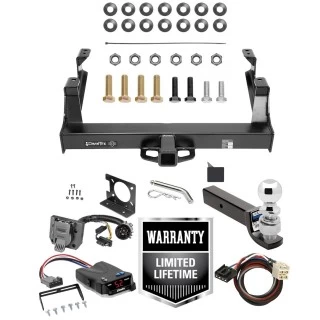

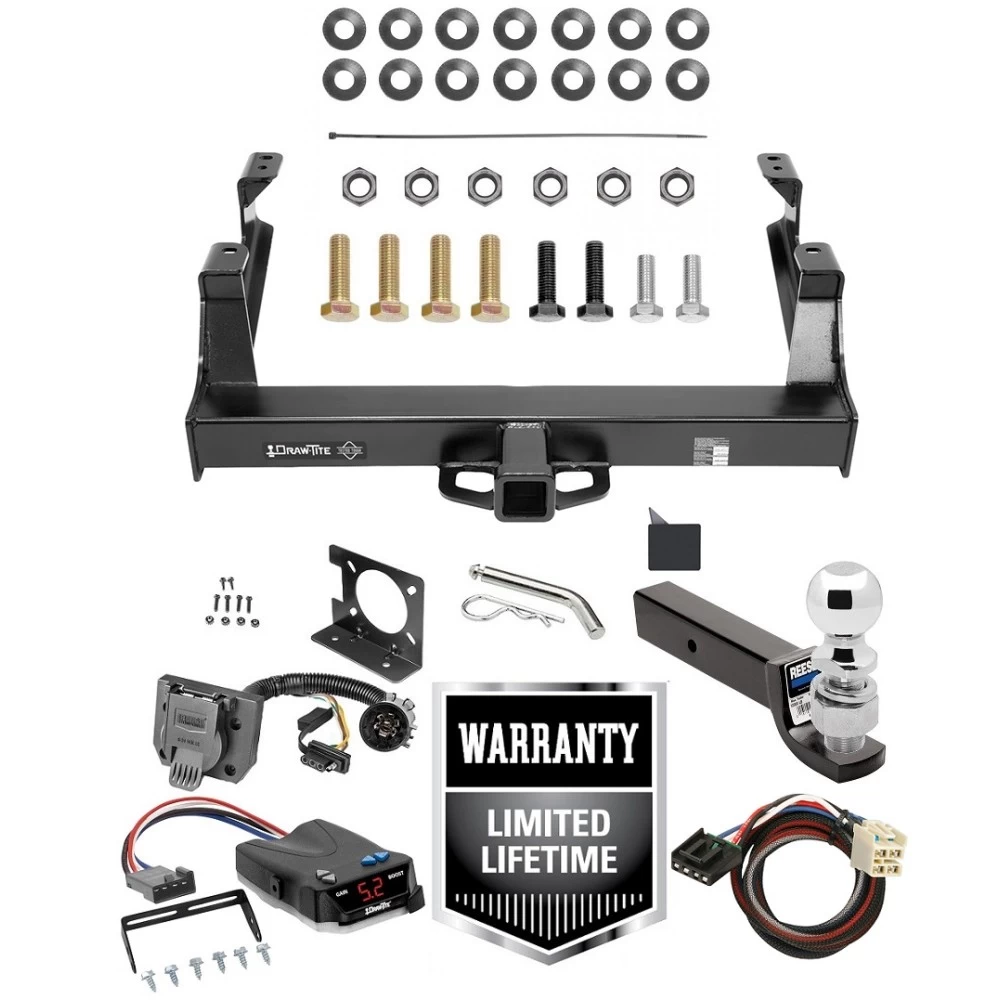

Includes Everything Pictured:
Class 5 Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Plug & Play Brake Control Wiring Adapter
Class 5 3" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up
Fits The Following Vehicles
2015 - 2019 Chevrolet, Silverado 2500 HD, Exc Cab & Chassis
2015 - 2019 Chevrolet, Silverado 3500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 2500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 3500 HD, Exc Cab & Chassis
Class 5 Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Proportional Brake Control For 1-4 Axles
Plug & Play Brake Control Wiring Adapter
Class 5 3" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions
Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up
Fits The Following Vehicles
2015 - 2019 Chevrolet, Silverado 2500 HD, Exc Cab & Chassis
2015 - 2019 Chevrolet, Silverado 3500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 2500 HD, Exc Cab & Chassis
2015 - 2019 GMC, Sierra 3500 HD, Exc Cab & Chassis
Trailer Hitch Specs:
| Part Number | 45511 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 20,000 lbs |
| Max GTW w/ weight distribution | 20,000 lbs |
| Max Tongue Weight | 2,700/2,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Direct Plug & Play Wiring Kit
| Part Number | 74682 |
| Brand | Reese |
| Features |
7-Way Flat Pin Connector/4-Flat Combo Adapter Harness
|
| Warranty | 1 Year |
| Installation Instructions | |
Brake Control Specs:
| Part Number | 5535 |
| Brand | Draw-Tite |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Features: | Exclusive to Draw-Tite, a compact, proportional brake control that requires no leveling with up-front buttons for easy access to Output and Boost.
|
| Installation Instructions | |
| Warranty | Lifetime |
Plug & Play Brake Control Wiring Kit
| Part Number | 3016 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Brand | Reese |
| Finish | Black Powdercoat |
| Length | 9-3/4" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity in Rise Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Drop | 3" From inside top of hitch opening |
| Towing Capacity in Drop Position | 14,000 lb Gross Towing Weight 1,400 lb Tongue Weight |
| Rise | 1-1/2" from top of inside of hitch opening |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Limited Lifetime |
Hitch Ball Specs:
| Part Number | 63836 |
| Brand | Draw-Tite |
| Size | 2-5/16" x 1-1/4" x 2-3/4" |
| Towing Capacity | 14,000 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 450 ft. lbs |
| Ball Hole Diameter | 1-1/4" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.
Partial list of fitment years: 15 16 17 18 19 2015 2016 2017 2018 2019
