Name: Class 5 Trailer Hitch w/ Tekonsha Prodigy P3 For 03-07 Chevy Silverado GMC Sierra 2500 HD 3500 w/ Plug Play Wiring 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller
Brand: Draw-Tite
Price: 586.04 USD
Availability: InStock

Class 5 Trailer Hitch w/ Tekonsha Prodigy P3 For 03-07 Chevy Silverado GMC Sierra 2500 HD 3500 w/ Plug Play Wiring 2- 5/16" Ball 2" Drop Mount 7-Way Pin Blade RV Controller

0 reviews - Write a review

$586.04

Stock: In Stock
Brand: Draw-Tite
Model: 41944 74682 40200 63836 63240 3015 90195

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

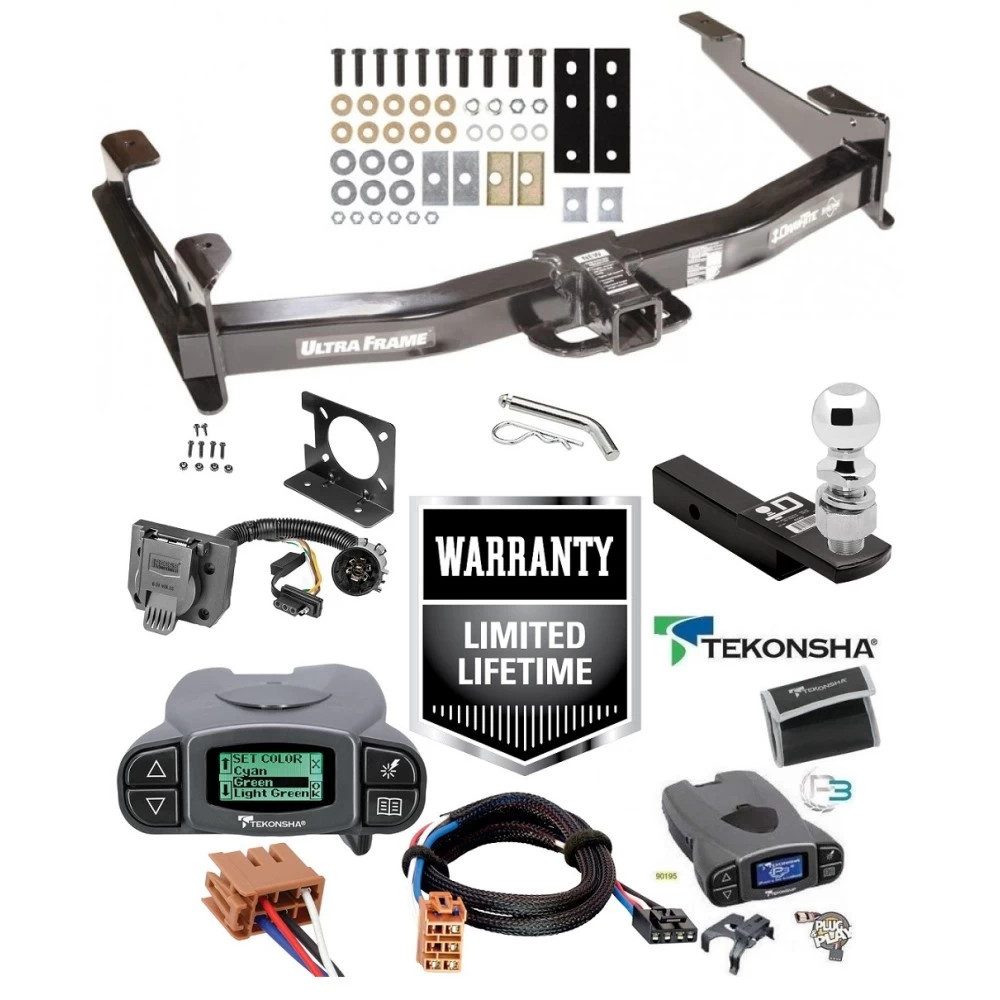

Includes Everything Pictured:
Custom Fit Trailer Hitch Class 5
Wiring Harness (Plug & Play)
Tekonsha Prodigy P3 Proportional Brake Control For 1-4 Axles
Plug & Play Brake Control Wiring Adapter
2" Drop Ball-Mount w/ Pin/Clip
2-5/16" Chrome Ball
Installation Hardware
Installation Instructions

Brake controller unit provided is proportional, meaning in an emergency stop the proportional controller will match the braking power instantly instead of ramping up

Fits The Following Vehicles

2003 - 2006    Chevrolet, Silverado 2500 HD, All Styles
2007    Chevrolet, Silverado 2500 HD, (Classic)
2003 - 2006    Chevrolet, Silverado 3500, All Styles
2007    Chevrolet, Silverado 3500, (Classic)
2003 - 2006    GMC, Sierra 2500 HD, All Styles
2007    GMC, Sierra 2500 HD, (Classic)
2003 - 2006    GMC, Sierra 3500, All Styles
2007    GMC, Sierra 3500, (Classic)

Trailer Hitch Specs:

Part Number	41944
Brand	Draw-Tite
Finish	Black Powdercoat
Class	5
Receiver size opening	2"
Max gross trailer weight	13,000 lbs
Max GTW w/ weight distribution	16,000 lbs
Max Tongue Weight	1,950/1,600 lbs
Warranty	Lifetime
Installation Instructions

Direct Plug & Play Wiring Kit

Part Number	74682
Brand	Reese
Features	7-Way Flat Pin Connector/4-Flat Combo Adapter Harness For quick connection to 4-Flat or 7-Way trailer connectors Includes mounting bracket and hardware Easily adapts to existing vehicle 7-Way plug Ability to tow trailers with different style trailer connectors Durable plastic shell Weather tight seal Attractive point-of-purchase packaging
Warranty	1 Year
Installation Instructions

Brake Control Unit Specs:

Part Number	90195
Brand	Tekonsha
Type	Proportional
Axles	1 to 4 axle trailers
Warranty	Lifetime
Features:	5 storable setting options for pulling different trailers or preferences of multiple drivers. A distinct, easy-to-read LCD display with multiple screen color options. Up-Front controls provide easy access to all P3 features. Easy to understand diagnostics show output current, battery, brake, and output voltage. A flashing red warning system alerts user to No Trailer Brake situations. Select Electric over Hydraulic or Electric trailer brake mode. Screen information display in English, French or Spanish. The Original Boost feature allows for different levels of customized braking. Compact, dash-hugging design.
Installation Instructions
Warranty	Lifetime

Plug & Play Brake Control Wiring Kit

Part Number	3015
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	8-1/2" From Center of Pin Hole to Center of Ball Hole
Towing Capacity in Rise Position	10,000 lb Gross Towing Weight 1,000 lb Tongue Weight
Drop	2" From inside top of hitch opening
Towing Capacity in Drop Position	10,000 lb Gross Towing Weight 1,000 lb Tongue Weight
Ball Hole Diameter	1-1/4"
Rise	3/4"
Warranty	Limited Lifetime

Hitch Ball Specs:

Part Number	63836
Brand	Draw-Tite
Size	2-5/16" x 1-1/4" x 2-3/4"
Towing Capacity	14,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 450 ft. lbs
Ball Hole Diameter	1-1/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions.

Partial list of fitment years: 03 04 05 06 07 2003 2004 2005 2006 2007

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	13,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	16,000 lbs.
Hitch Class	V
Material	Steel
Maximum Tongue Weight	1,950 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,600 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube
