- Stock: In Stock
- Brand: Draw-Tite
- Model: 45515 45292 63252

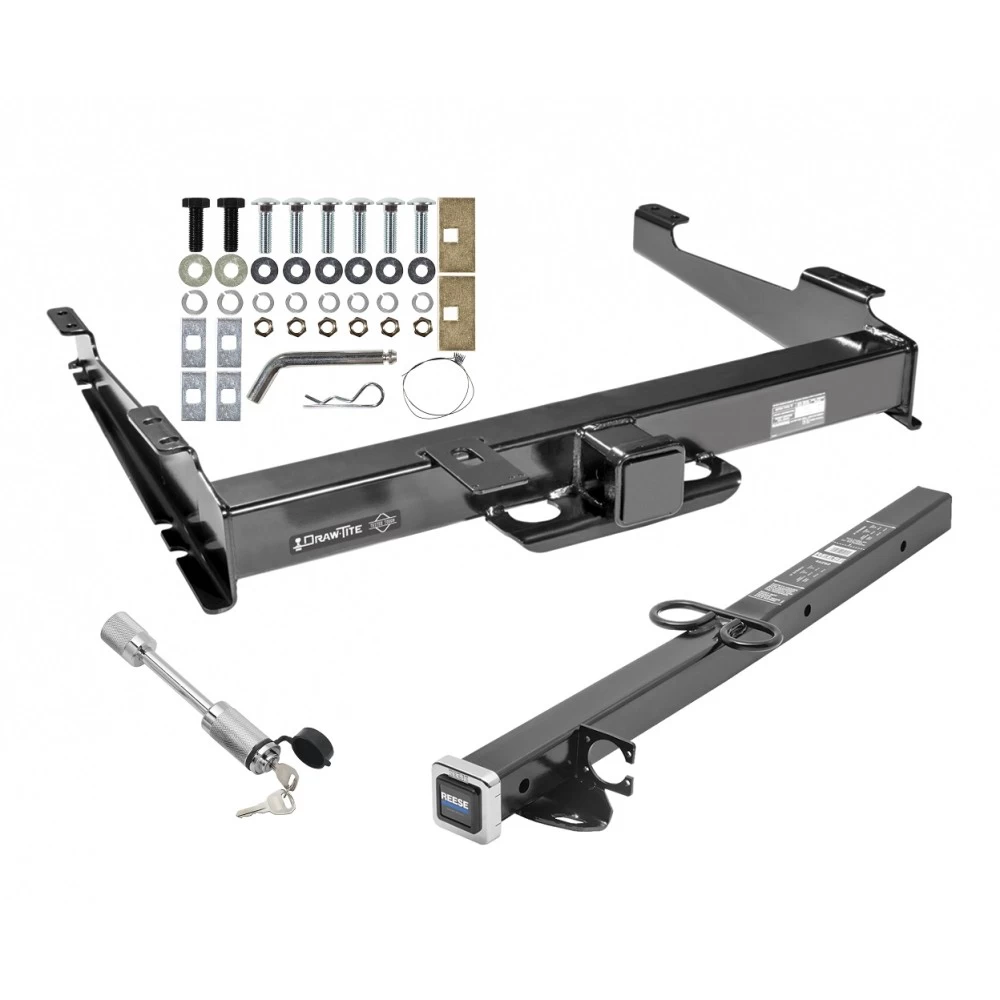

Custom Fit Trailer Hitch
2-1/2" to 2" Receiver Extension
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
2000 - 2006 Chevrolet, Suburban 2500, w/Amber Turn Signals
2000 - 2006 GMC, Yukon XL 2500, All Styles
Trailer Hitch Specs:
| Part Number | 45515 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ideal for slide-out campers with extended overhangs
Designed to extend the receiver opening 24" or 34"
Integrated electrical bracket attached to conveniently hold your 7-Way wiring harness
| Part Number | 45292 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Receiver size opening | 2-1/2" to 2" |
| Extension Length | 24" or 34" |
| Max gross trailer weight | 6,000 lbs or 4,500 lbs |
| Max GTW w/ weight distribution | 8,000 lbs or 6,000 lbs |
| Max Tongue Weight | 600/800 lbs or 450/600 lbs |
| Warranty | 1 Year |
The REESE Towpower 24" or 34" hitch box extension allows for extra space between the vehicle and trailer, and provides large, hatch-back door clearance. It is also ideal for launching water craft on a longer ramp where the extra length is needed.
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 05 06 2000 2001 2002 2003 2004 2005 2006
