Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock

Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 HD w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock
$417.57
  • Stock: In Stock
  • Brand: Draw-Tite
  • Model: 45519 45325 63252

Applies to this product only

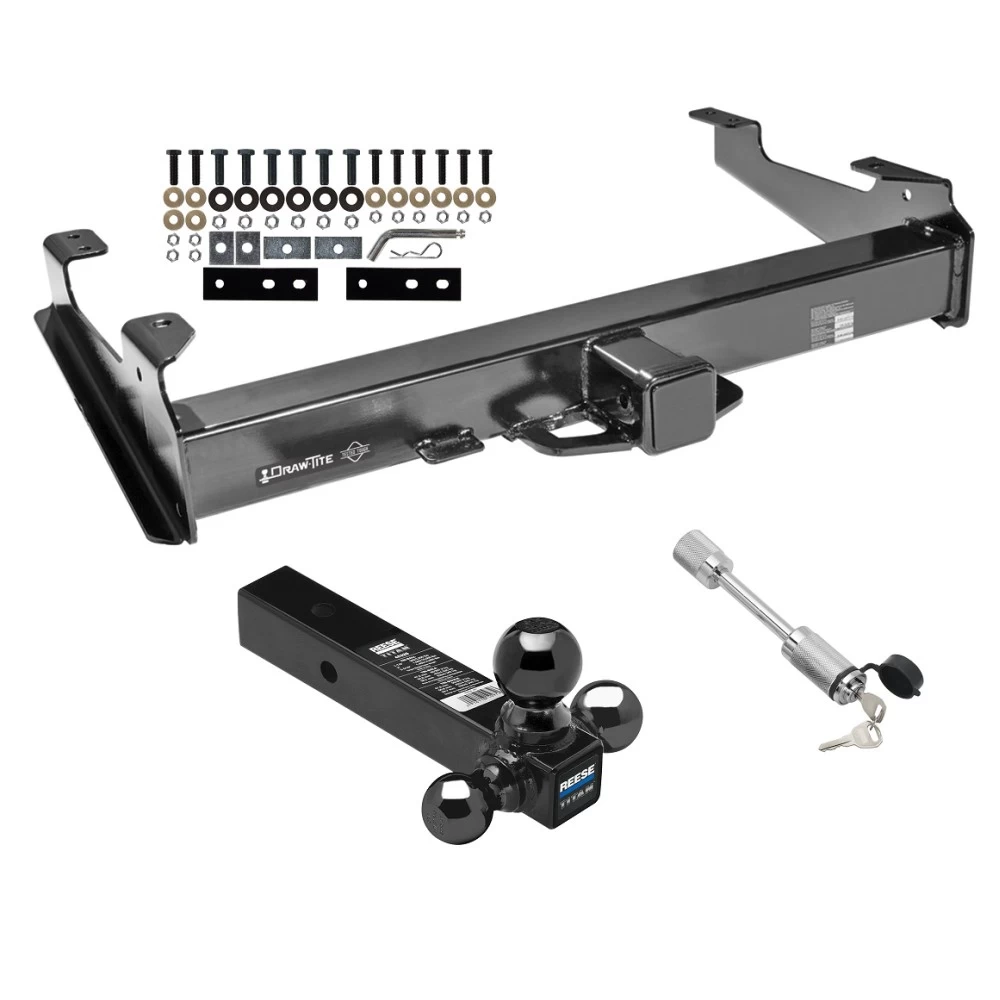

Includes Everything Pictured:
Custom Fit Trailer Hitch

Tri-Ball Trailer Hitch Ball Mount
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions


2001 - 2002     Chevrolet, Silverado 2500 HD, 8 ft. Bed
2003 - 2007     Chevrolet, Silverado 2500 HD, 8 ft. Bed (Classic)
2007 - 2010     Chevrolet, Silverado 2500 HD, 8 ft. Bed
2001 - 2002     Chevrolet, Silverado 3500, All Styles
2003 - 2007     Chevrolet, Silverado 3500, (Classic)
2007 - 2010     Chevrolet, Silverado 3500 HD, All Styles

2001 - 2010     GMC, Sierra 2500 HD, 8 ft. Bed
2007     GMC, Sierra 2500 HD, 8 ft. Bed (Classic)
2001 - 2002     GMC, Sierra 3500, All Styles
2003 - 2007     GMC, Sierra 3500, (Classic)
2007 - 2010     GMC, Sierra 3500 HD, All Styles

Trailer Hitch Specs:
Part Number 45519
Brand Draw-Tite
Finish Black Powdercoat
Class 5
Receiver size opening 2-1/2"
Max gross trailer weight 18,000 lbs
Max GTW w/ weight distribution 18,000 lbs
Max Tongue Weight 2,500/2,500 lbs
Warranty Lifetime
Installation Instructions

Tri-Ball Trailer Hitch Ball Mount Specs:
Part Number 45325
Brand Reese
Fits 2-1/2" x 2-1/2" Trailer Hitch Receiver
Finish Black Powdercoat
Balls and hook are chromed
Length 8-3/4" From Center of Pin Hole to Center of Ball Hole
1 7/8 In. ball 2,000 Lb. capacity
2 In. ball 10,000 Lb. capacity
2 5/16 In. ball 14,000 Lb. capacity
Warranty Lifetime

Dogbone Style Towing Lock
Specs:
Part Number 63252
Fits 2-1/2" Receivers, 3-1/2" Span
Brand Draw-Tite
Prevents Theft
Use in place of standard pin and clip
Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees
Includes Dust Cap
Warranty 1 Year
Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Specification
Attachment Location Rear
Ball Mount Included No
Color Black
Drilling Required No
Gross Towing Weight 18,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit 18,000 lbs.
Hitch Class V
Material Steel
Maximum Tongue Weight 2,000 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit 2,500 lbs.
Mounting Hardware Included Yes
Mounting Type Vehicle Frame
Receiver Size 2.5 in.
Receiver Type Square Tube
