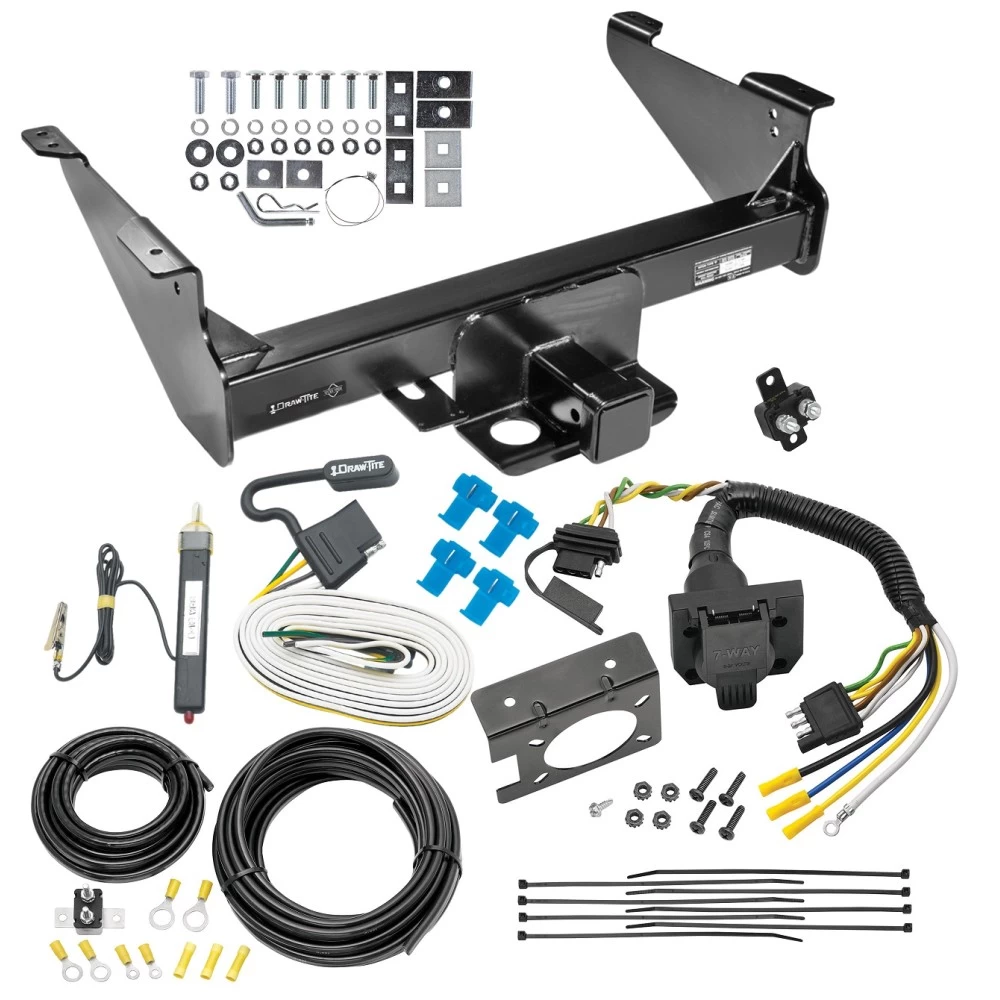

Class 5 Trailer Tow Hitch For 03-23 Dodge RAM 1500 2500 3500 Except Mega Cab w/ 7-Way Wiring Harness Kit
Model: 45518 IR45288 20252 85343 20506 7012-aCustom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
Wiring Adapter Kit
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2003 Dodge, Ram 1500, (Built After 11/2002)
2003 - 2005 Dodge, Ram 2500, All Styles
2003 - 2005 Dodge, Ram 3500, All Styles
2004 - 2005 Dodge, Ram 1500, Except Daytona/Hemi Sport Quad Cab/Ram Rumble Bee/SRT-10
2006 - 2008 Dodge, Ram 1500, All Styles
2006 - 2010 Dodge, Ram 2500, Except Mega Cab
2006 - 2010 Dodge, Ram 3500, Except Mega Cab
2011 - 2023 RAM, 2500, Except Mega Cab
2011 - 2023 RAM, 3500, Except Mega Cab
Trailer Hitch Specs:
| Part Number | 45518 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
Includes all necessary parts required to completely install all brake controls. No other parts are necessary.
This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug
Plug and Play T-One Wiring Harness Connector
4-Way to 7-Way adapter w/ mounting bracket and screws
Wiring Kit for 6 to 8 Brake Control Systems
Includes 25 ft. 12-2 Duplex Wire
(2) 30 Amp Circuit Breakers
Attaching Terminals and Ring Connectors
| Part Numbers | 20252 85343 20506 7012A |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Wiring Installation |
|
| 4-Way to 7-Way Adapter Installation |
|
| Brake Control Wiring Installation |
|
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
