- Stock: In Stock
- Brand: Draw-Tite
- Model: 45507 45325 63252

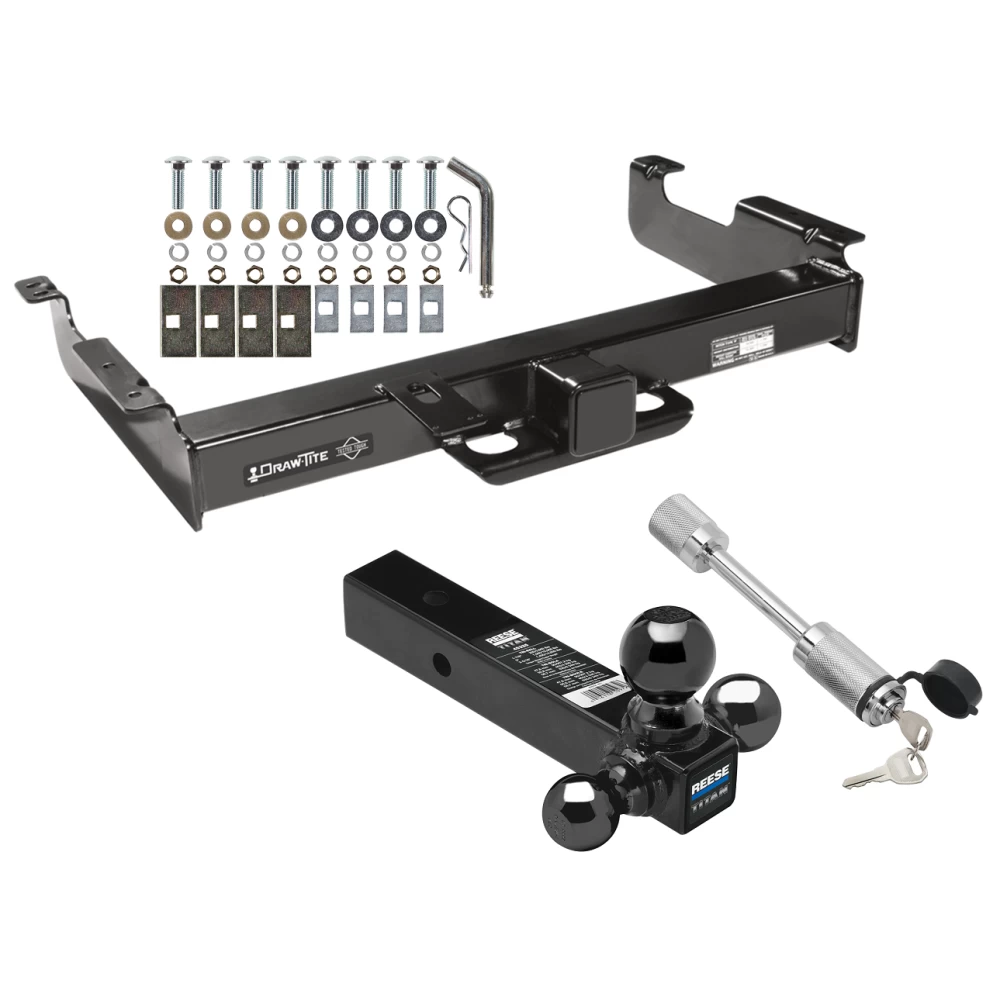

Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
1996 - 2014 Chevrolet, Express 1500, All Styles
1996 - 2024 Chevrolet, Express 2500, All Styles
1996 - 2024 Chevrolet, Express 3500, All Styles
1996 - 2014 GMC, Savana 1500, All Styles
1996 - 2024 GMC, Savana 2500, All Styles
1996 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 45507 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 45325 |
| Brand | Reese |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8-3/4" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 10,000 Lb. capacity |
| 2 5/16 In. ball | 14,000 Lb. capacity |
| Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
